Front Extension Housing: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL DUST DEFLECTOR

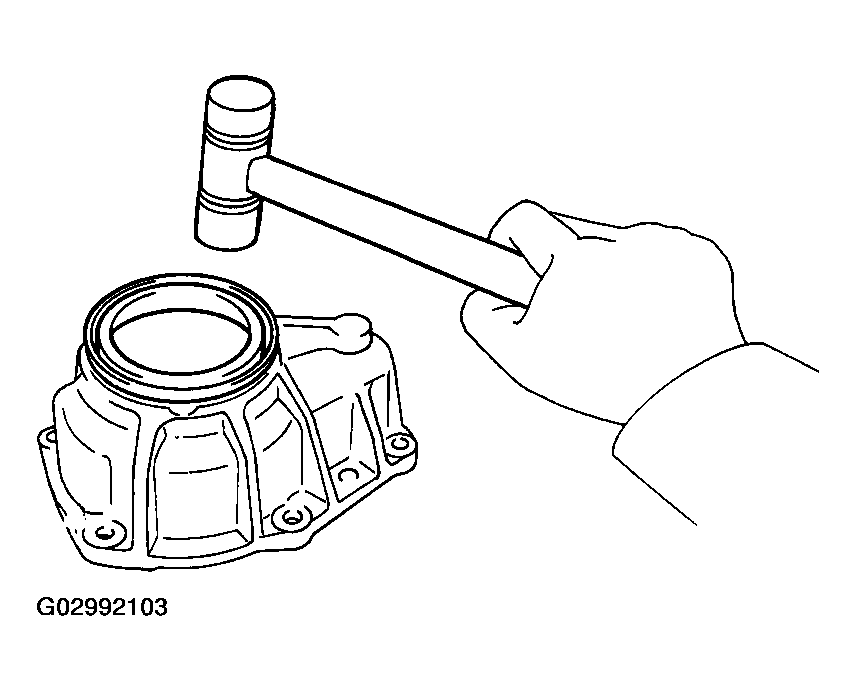

   1. Using a plastic hammer, install a new dust deflector to the front extension housing.
      Fig 1: Installing New Dust Deflector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

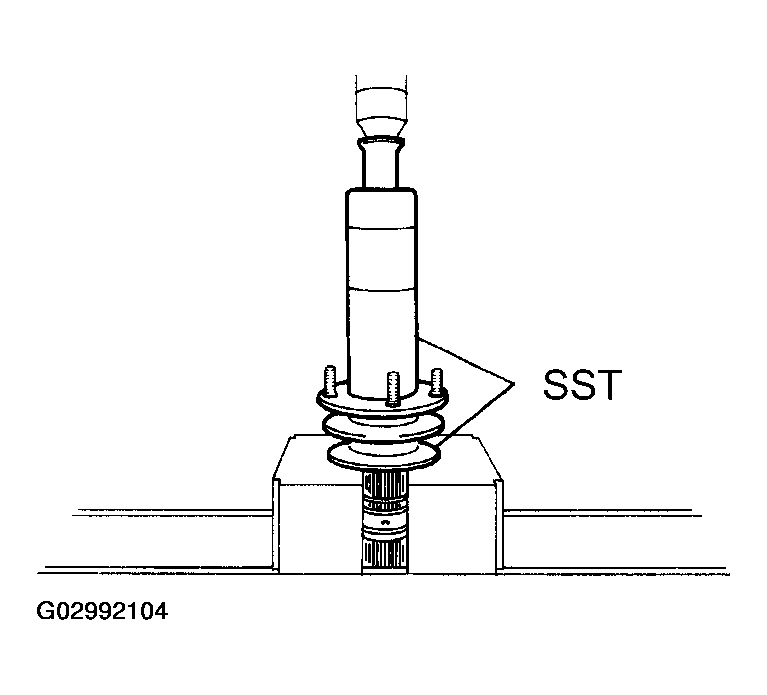

   2. Using SST and a press, install a new dust deflector to the front output shaft.

      SST 09316-2001 1, 09316-60011 (09316-00011)

   Fig 2: Installing New Dust Deflector To Front Output Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL BALL BEARING

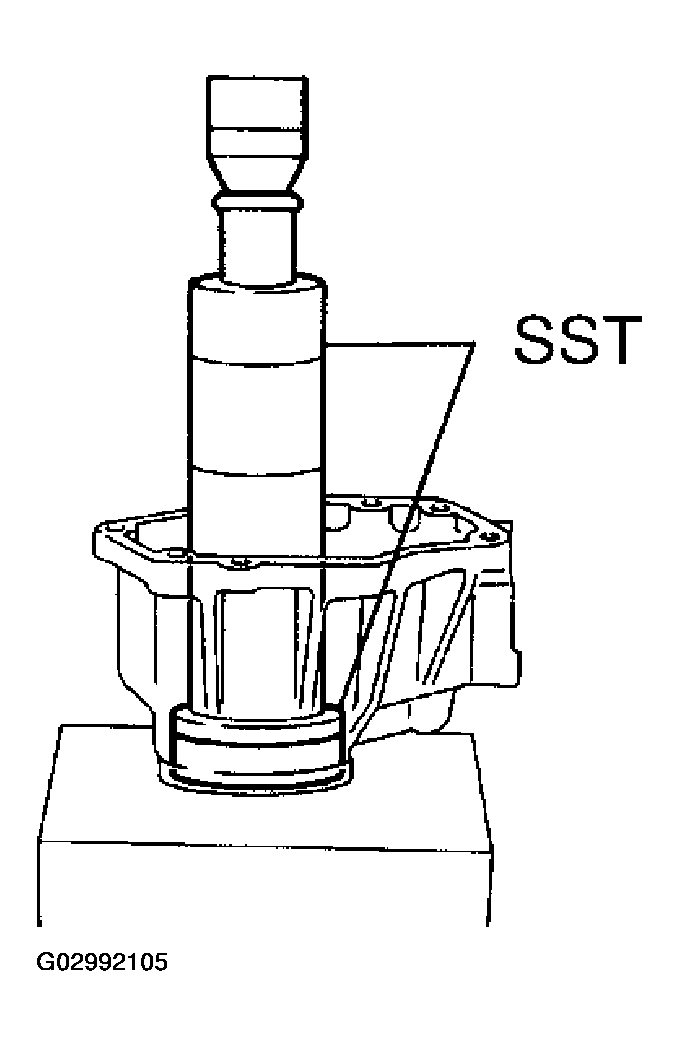

   1. Using SST and a press, install the ball bearing to the front extension housing.

      SST 09316-6001 1 (09316-00011, 09316-00031)

      Fig 3: Installing Ball Bearing To Front Extension Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.
      SNAP RING THICKNESS SPECIFICATION



      Mark	Thickness mm (in.)
      A	1.70 (0.0669)
      B	1.80 (0.0709)

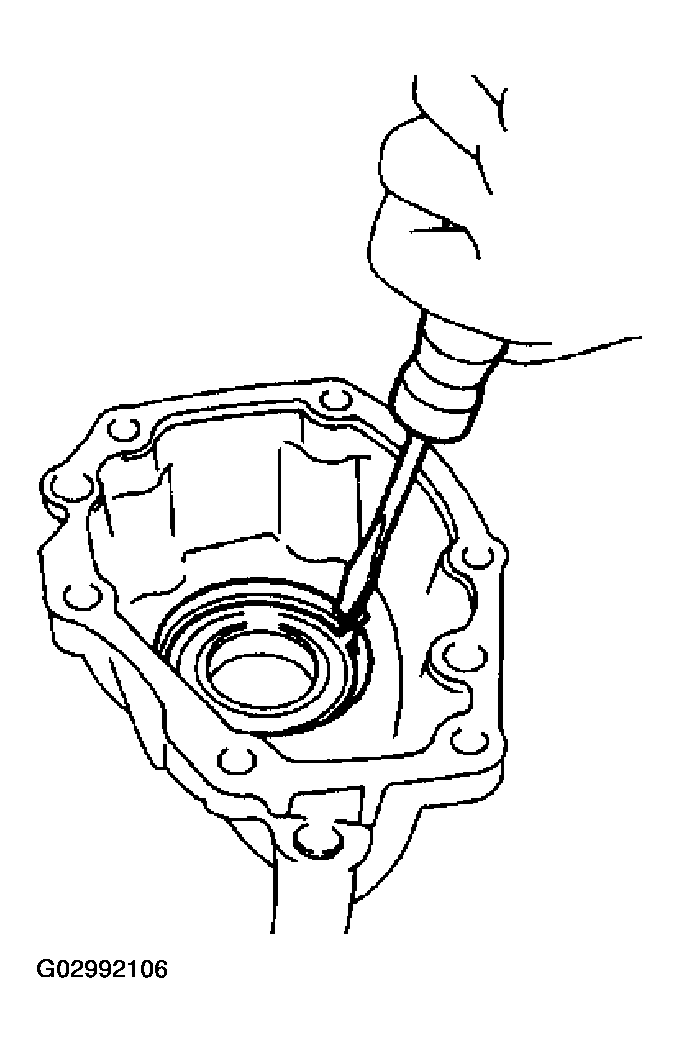

   3. Using a screwdriver, install a new snap ring.
   Fig 4: Installing New Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OIL SEAL
   1. Apply MP grease to the lip of a new oil seal.

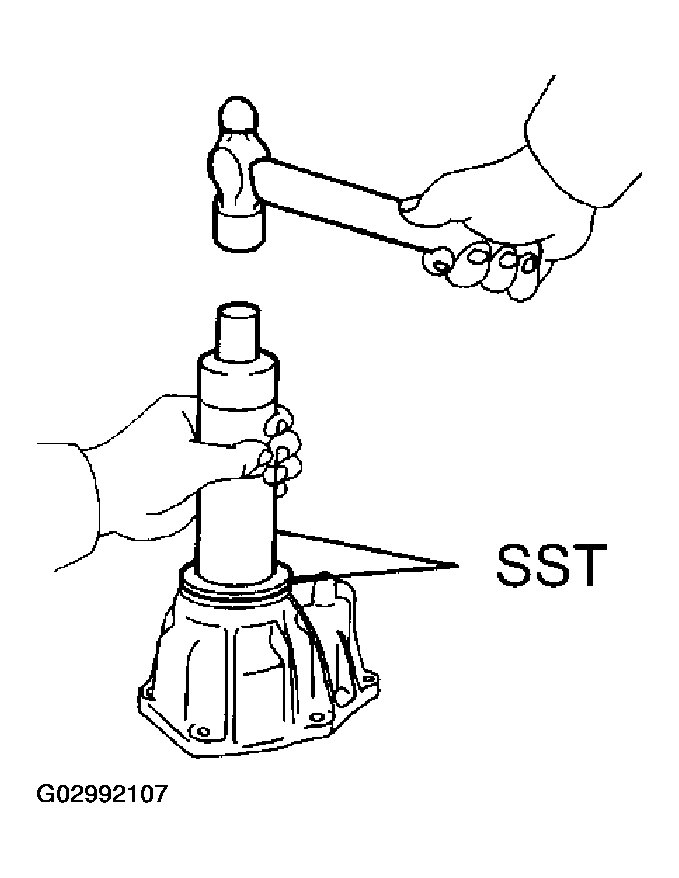

   2. Using SST and a hammer, drive in a new oil seal to the front extension housing.

      SST 09316-6001 1 (09316-00011, 09316-00061)

   Fig 5: Installing Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT OUTPUT SHAFT AND DRIVE CLUTCH HUB

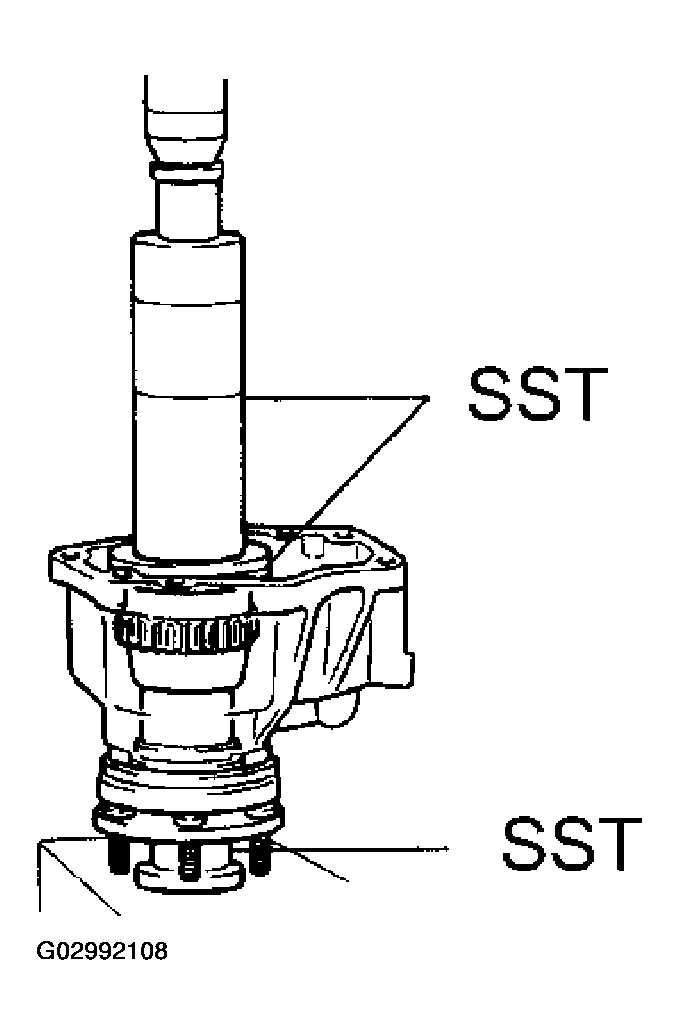

   1. Using SST and a press, install the front output shaft and drive clutch hub.

      SST 09316-2001 1, 09316-60011 (09316-00011, 09316-00041, 09316-00071)

      Fig 6: Installing Front Output Shaft And Drive Clutch Hub

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.
      SNAP RING THICKNESS SPECIFICATION



      Mark	Thickness mm (in.)
      A	1.80 (0.0709)
      B	1.90 (0.0748)
      C	2.00 (0.0787)
      D	2.10 (0.0827)
      E	2.20 (0.0866)

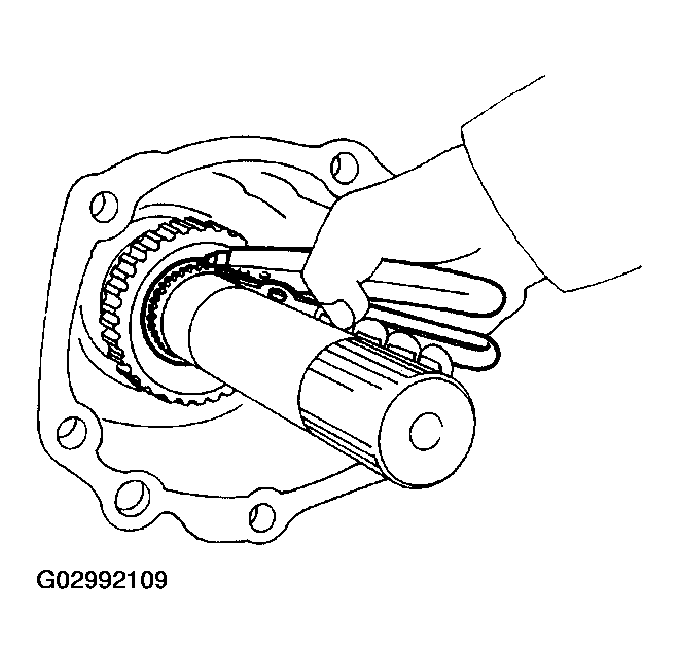

   3. Using a snap ring expander, install a new snap ring.
   Fig 7: Installing New Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
