Input Shaft: Disassembly

REMOVE REAR BALL BEARING
1. Using a snap ring expander, remove the snap ring.

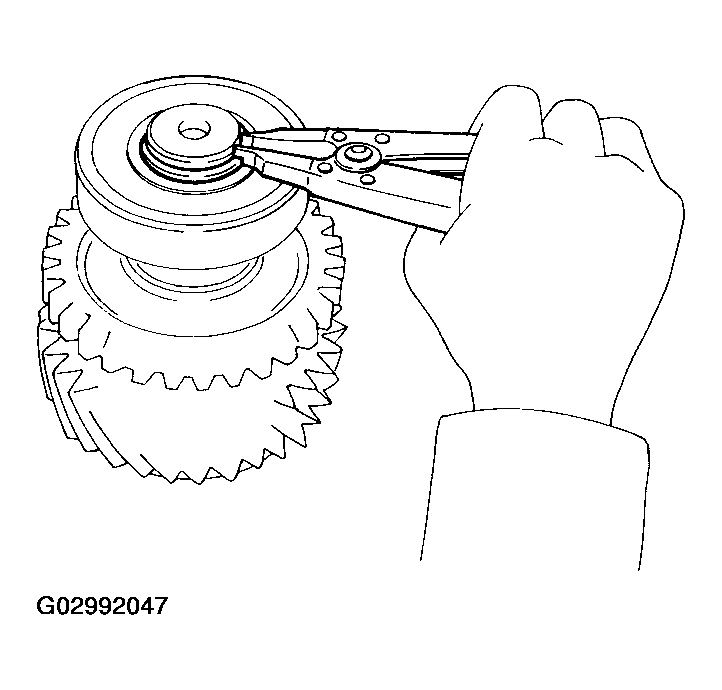

  Fig 1: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a socket wrench and press, remove the rear ball bearing.

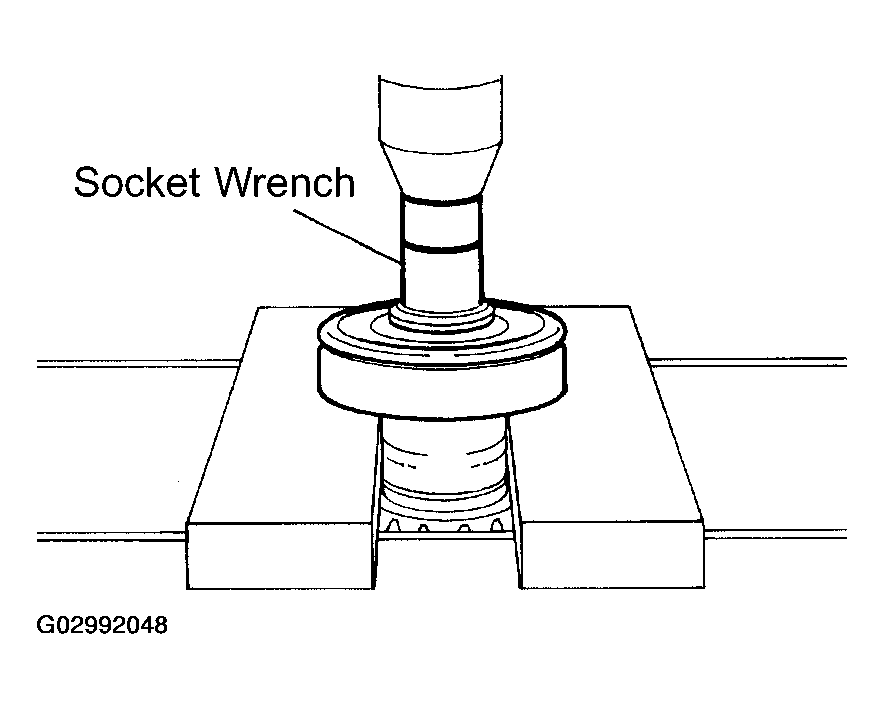

Fig 2: Removing Rear Ball Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BALL BEARING
1. Using a snap ring expander, remove the snap ring.
2. Using SST, remove the front ball bearing.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04011, 09957-04010, 09958-04011), 09950-60010 (09951-00400)
Fig 3: Removing Front Ball Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
