Input Shaft: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL FRONT BALL BEARING
   1. Using SST and a press, install a new front ball bearing.

      SST 09316-6001 1 (09316-00011)

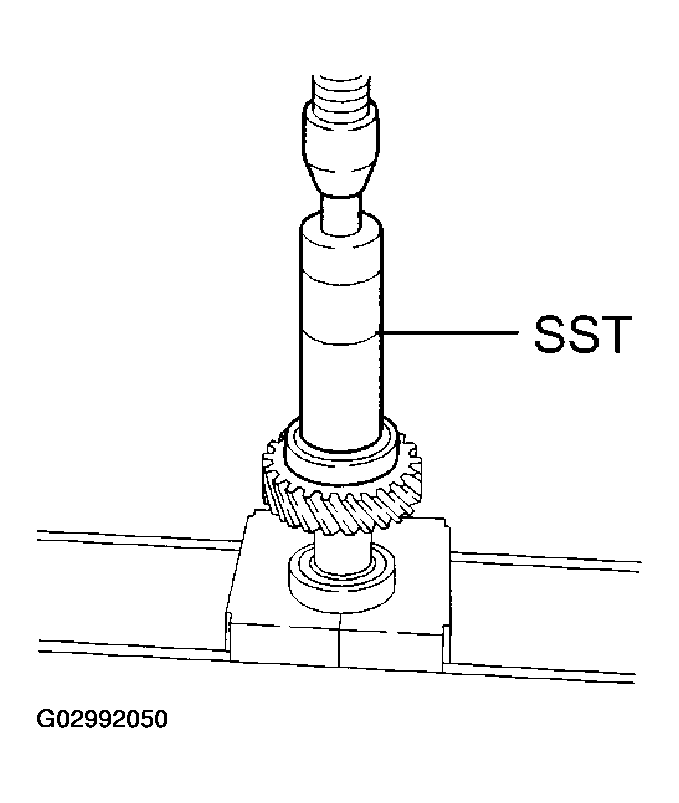

      Fig 1: Installing Front Ball Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.
      SNAP RING THICKNESS SPECIFICATION



      Mark	Thickness mm (in.)	Mark	Thickness mm (in.)
      A	2.90(0.1141)	D	3.05(0.1201)
      B	2.95(0.1161)	E	3.10(0.1220)
      C	3.00(0.1181)	F	3.15(0.1240)

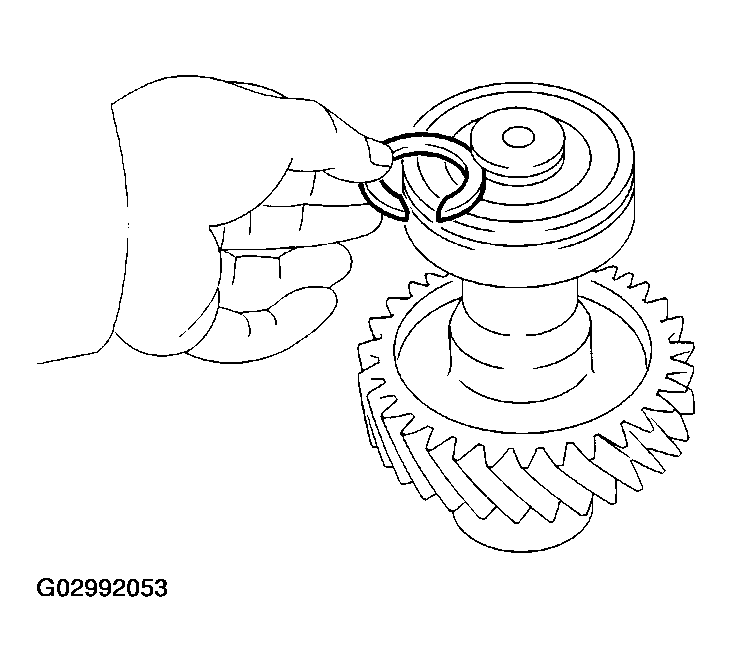

      Fig 2: Selecting New Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.
2. INSTALL REAR BALL BEARING
   1. Using SST and a press, install the rear ball bearing.

      SST 09316-6001 1 (09316-00011, 09316-00031)

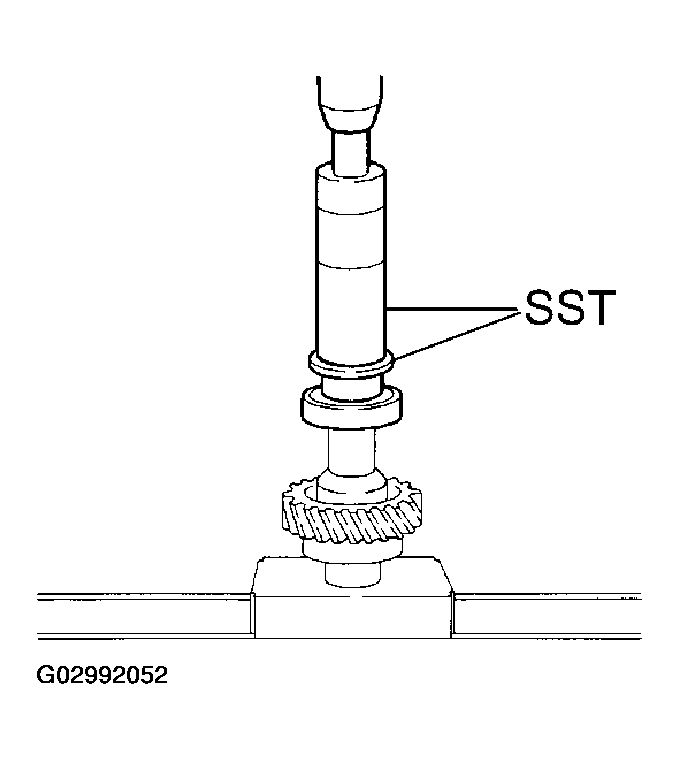

      Fig 3: Installing Rear Ball Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.
      SNAP RING THICKNESS SPECIFICATION



      Mark	Thickness mm (in.)
      A	2.00 (0.0787)
      B	2.10 (0.0827)
      C	2.20 (0.0866)
      D	2.30 (0.0906)
      E	2.40 (0.0945)

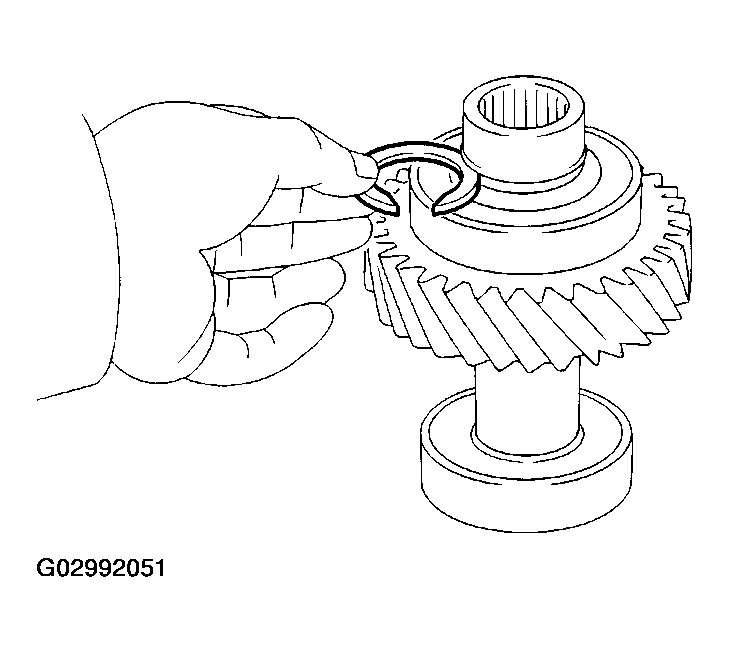

      Fig 4: Selecting New Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.
