Cruise Control Module: Service and Repair

CRUISE CONTROL ECU ASSEMBLY

REPLACEMENT
1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER




3. REMOVE CRUISE CONTROL ECU ASSEMBLY
a. Disconnect the connector.

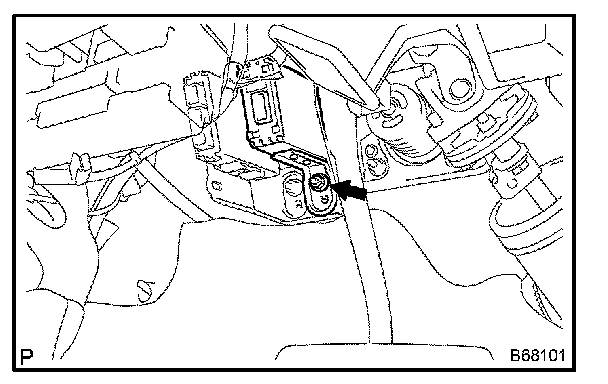

b. Remove the nut and cruise control ECU (distance control ECU) assembly.

4. INSTALL CRUISE CONTROL ECU ASSEMBLY
a. Install the cruise control ECU (distance control ECU) assembly with the nut.

NOTE: Do not install the cruise control ECU (distance control ECU) assembly if it has been damaged or received some sort of shock.
