Data List

DATA LIST

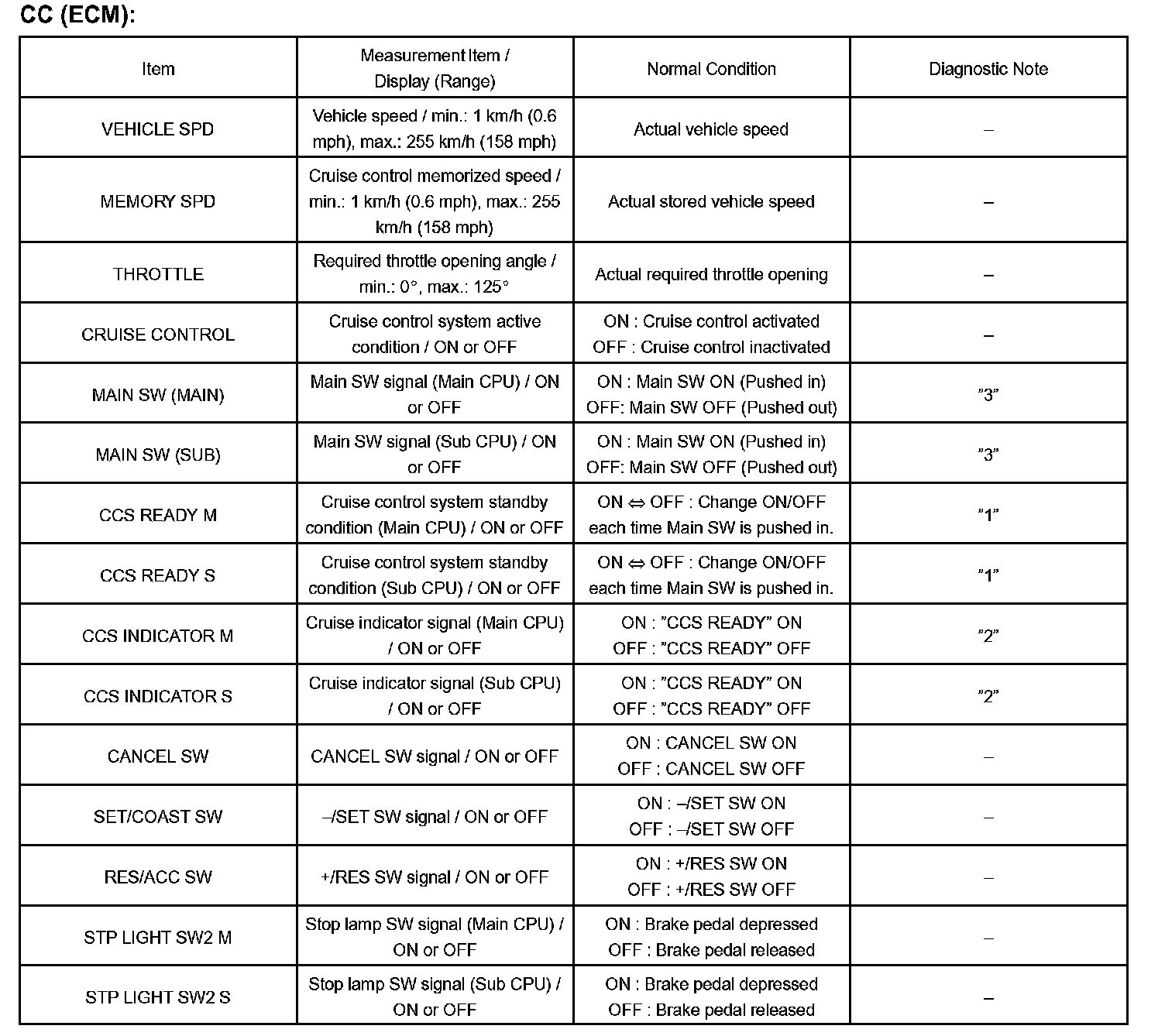

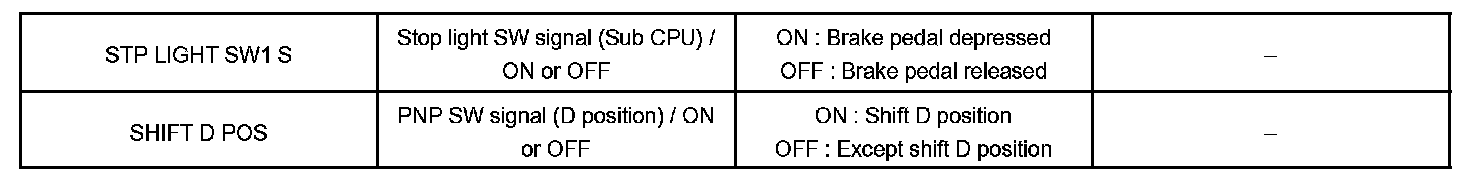

a. While the hand-held tester is connected to the DLC3 and with the ignition switch turned to the ON position, the CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the data list.

HINT:
"3" is OK but "1" is NG -> ECM failure
"1" is OK but "2" is NG -> DTC output or ECM failure
"3" is OK but cruise indicator not turn on -> CRUISE MAIN indicator or wire harness or ECM failure
