Air Bag Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

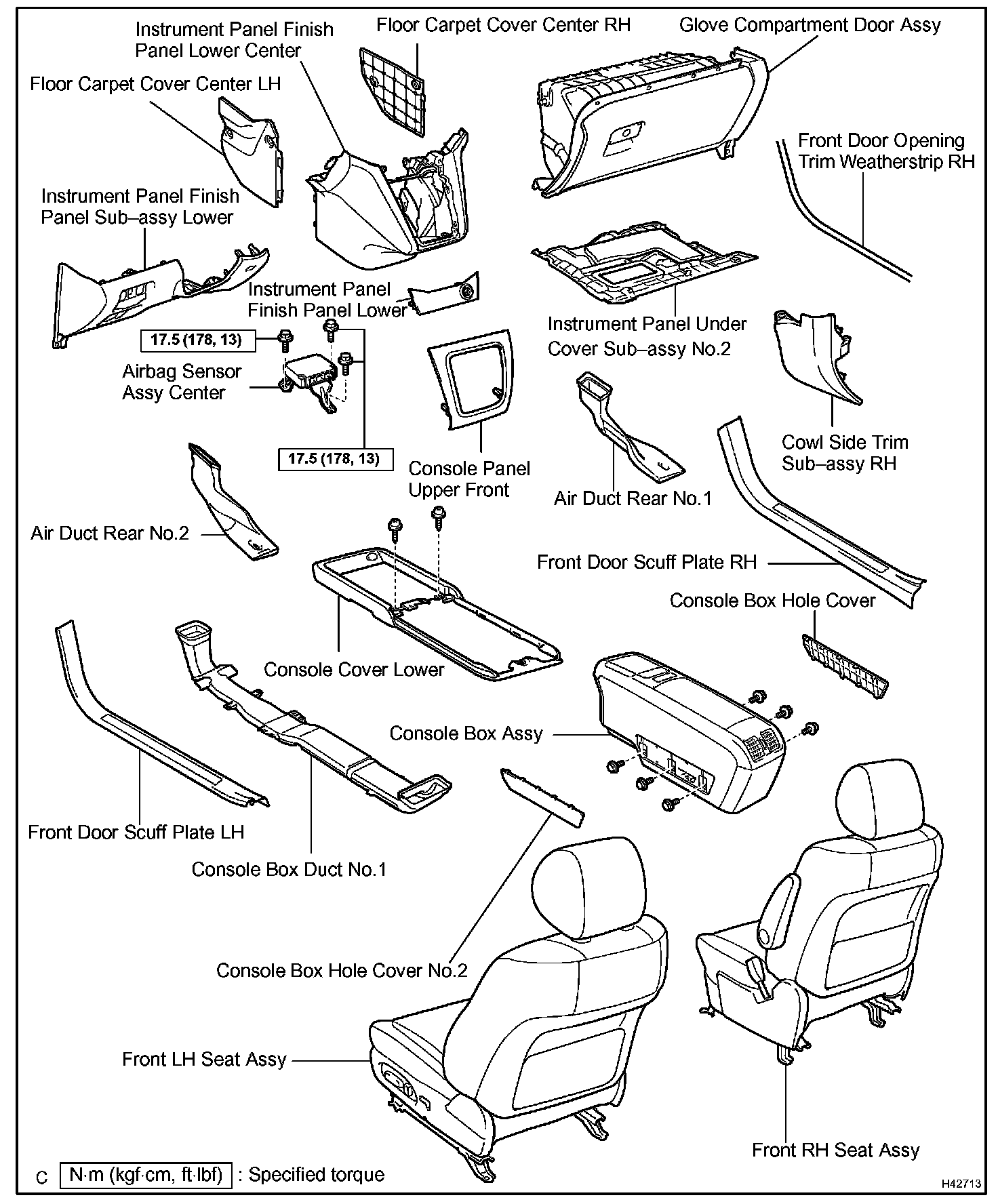

Air Bag Control Module
Air Bag Sensor Assy Center:
