Alternator

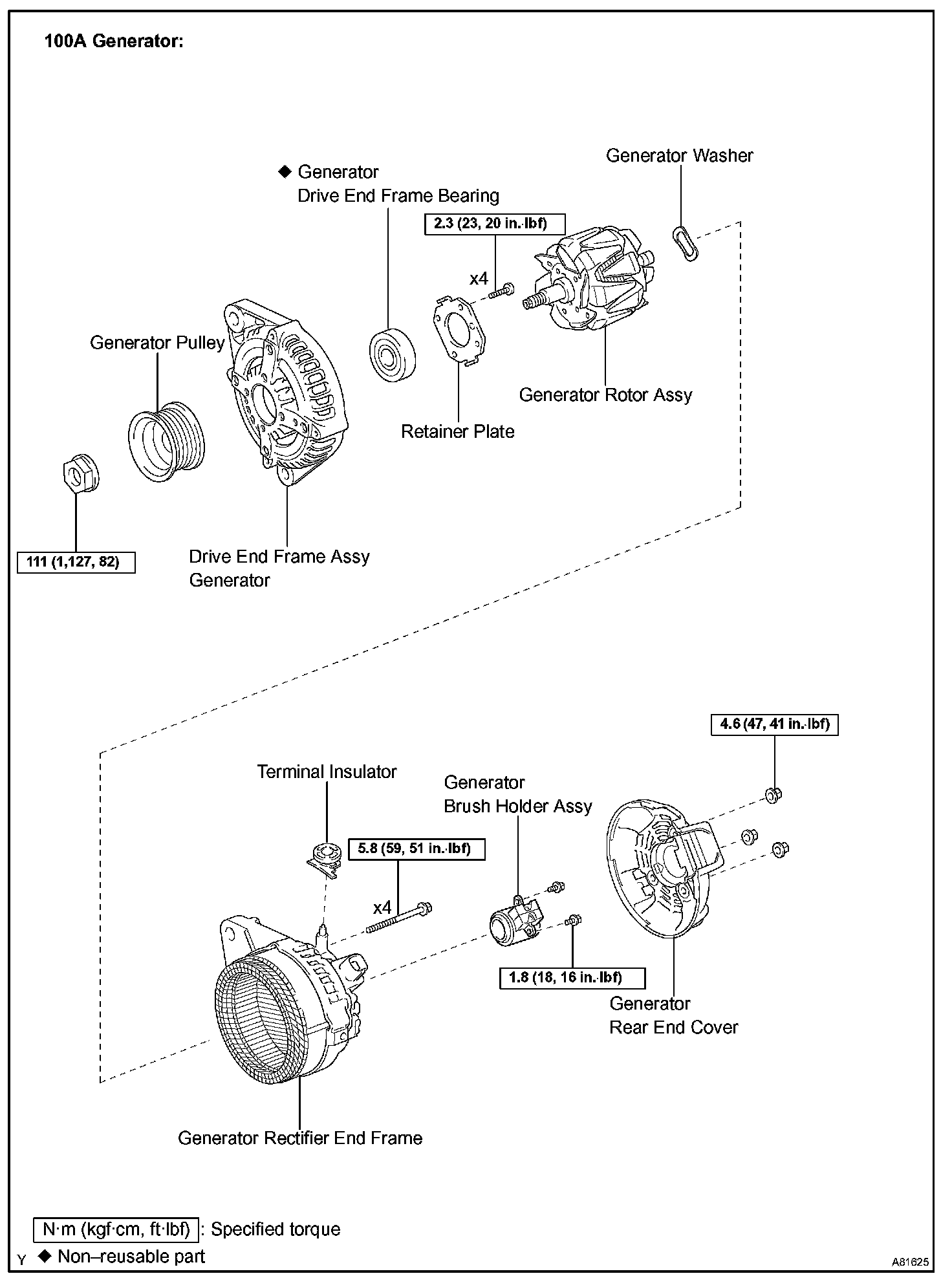

Generator Assy(3MZ-FE) - Part 1:

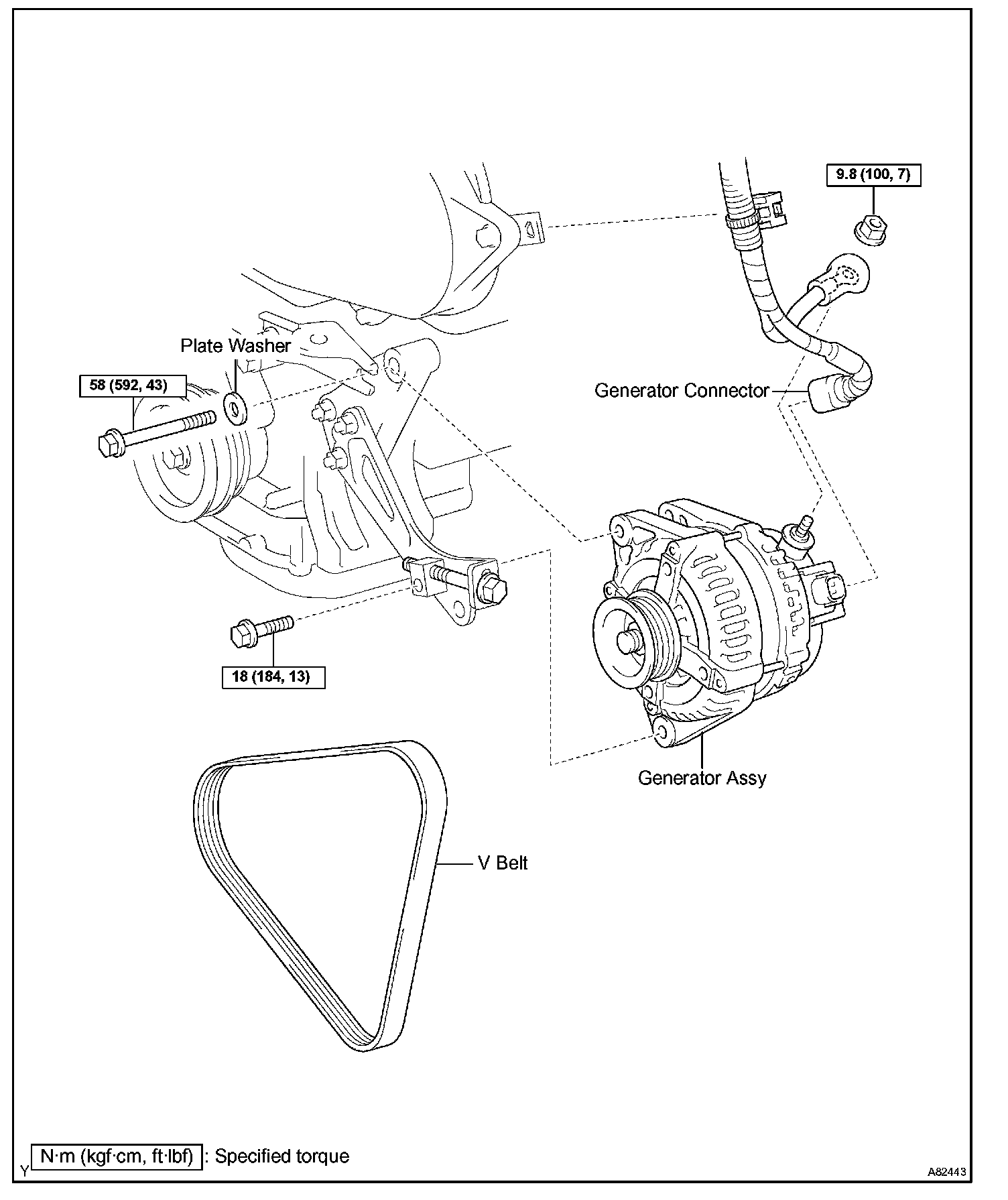

Generator Assy(3MZ-FE) - Part 2:

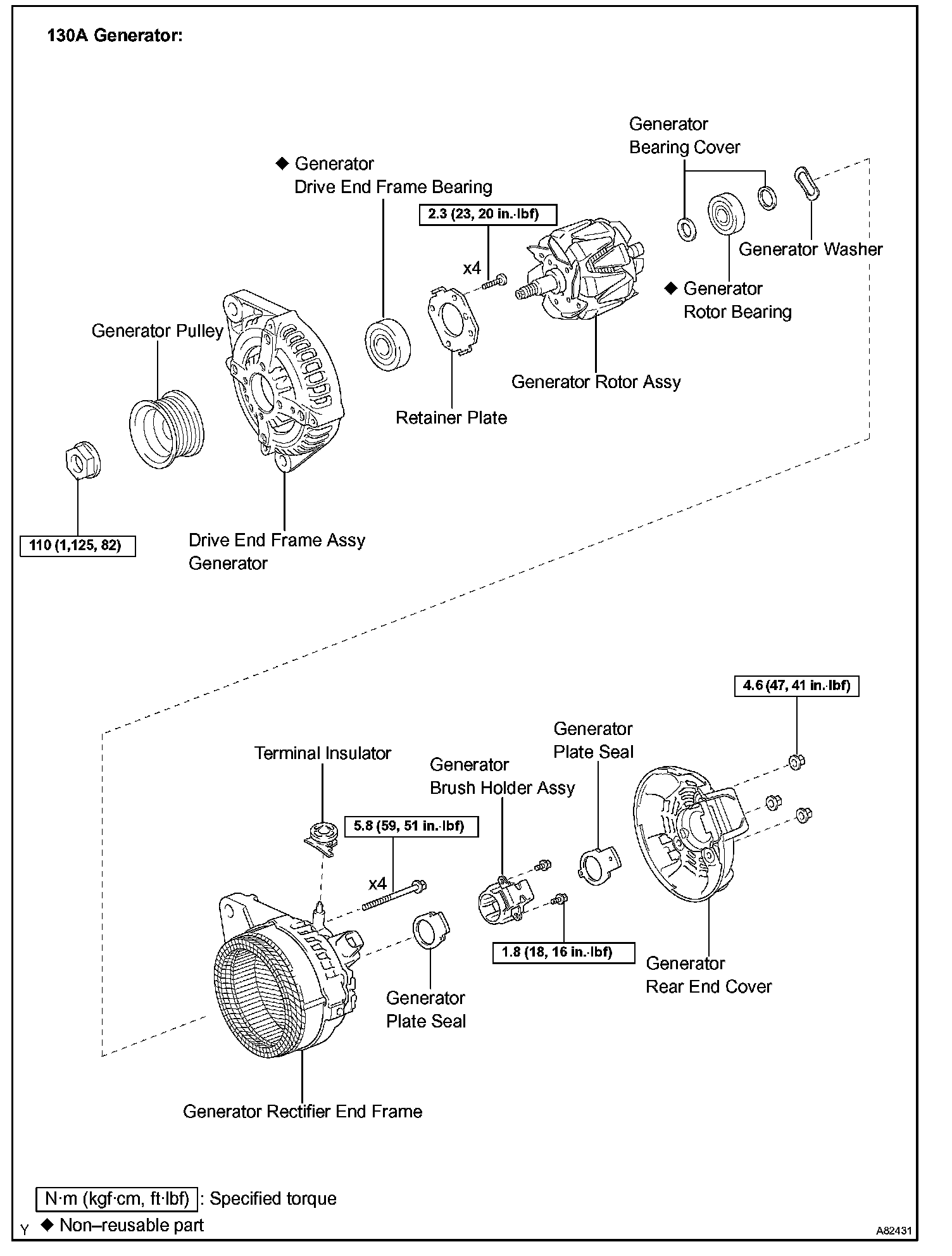

Generator Assy(3MZ-FE) - Part 3:
