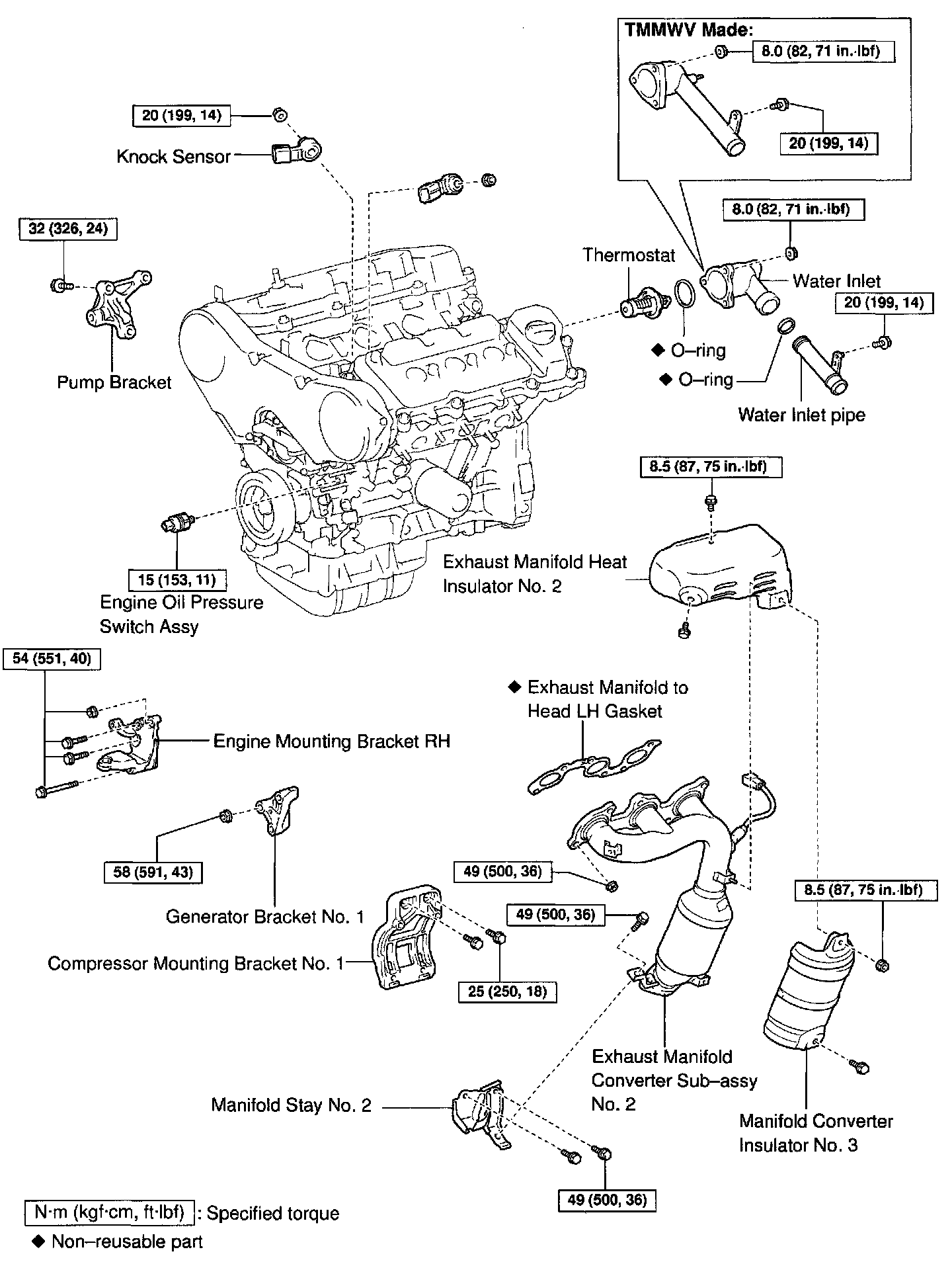

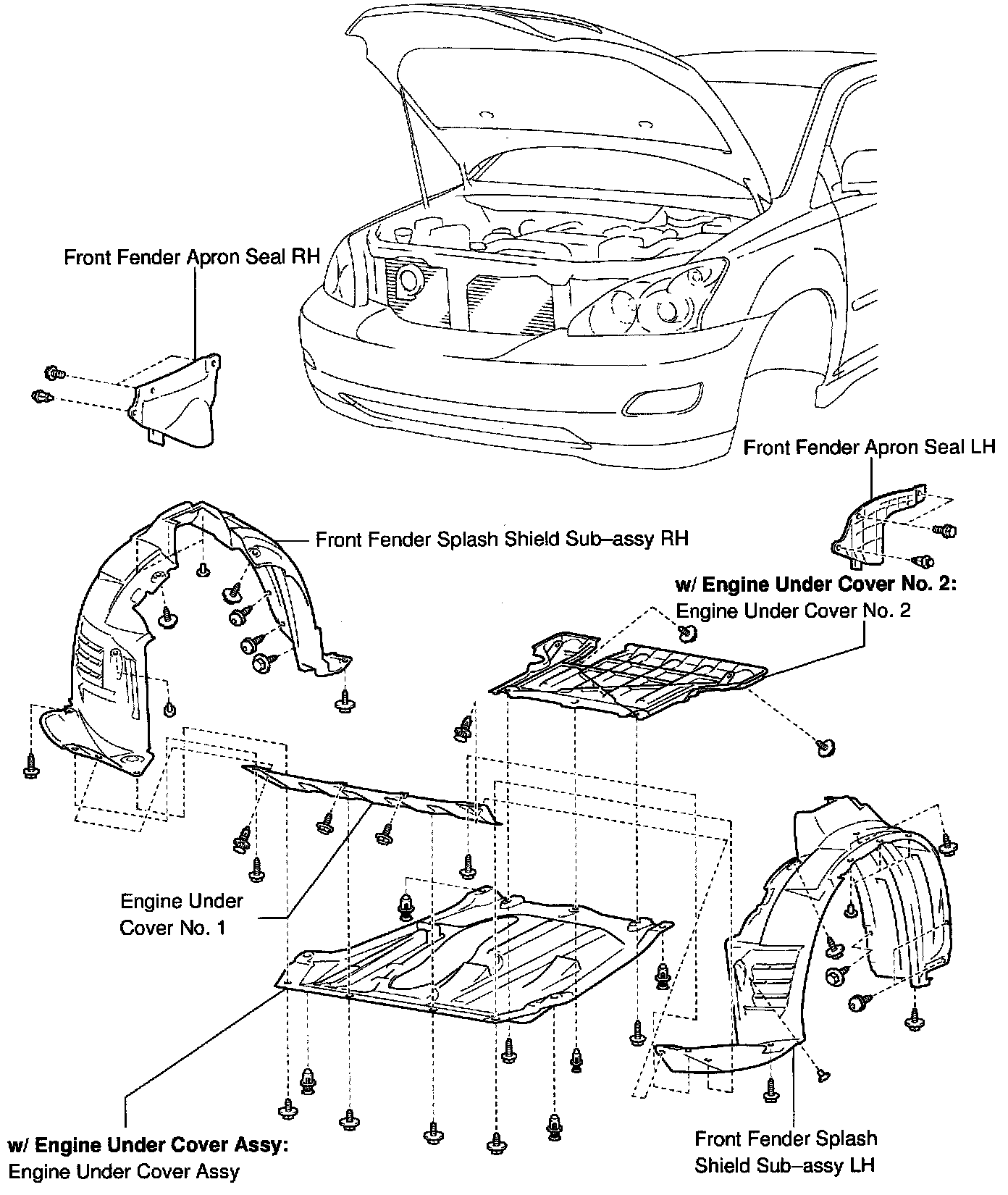

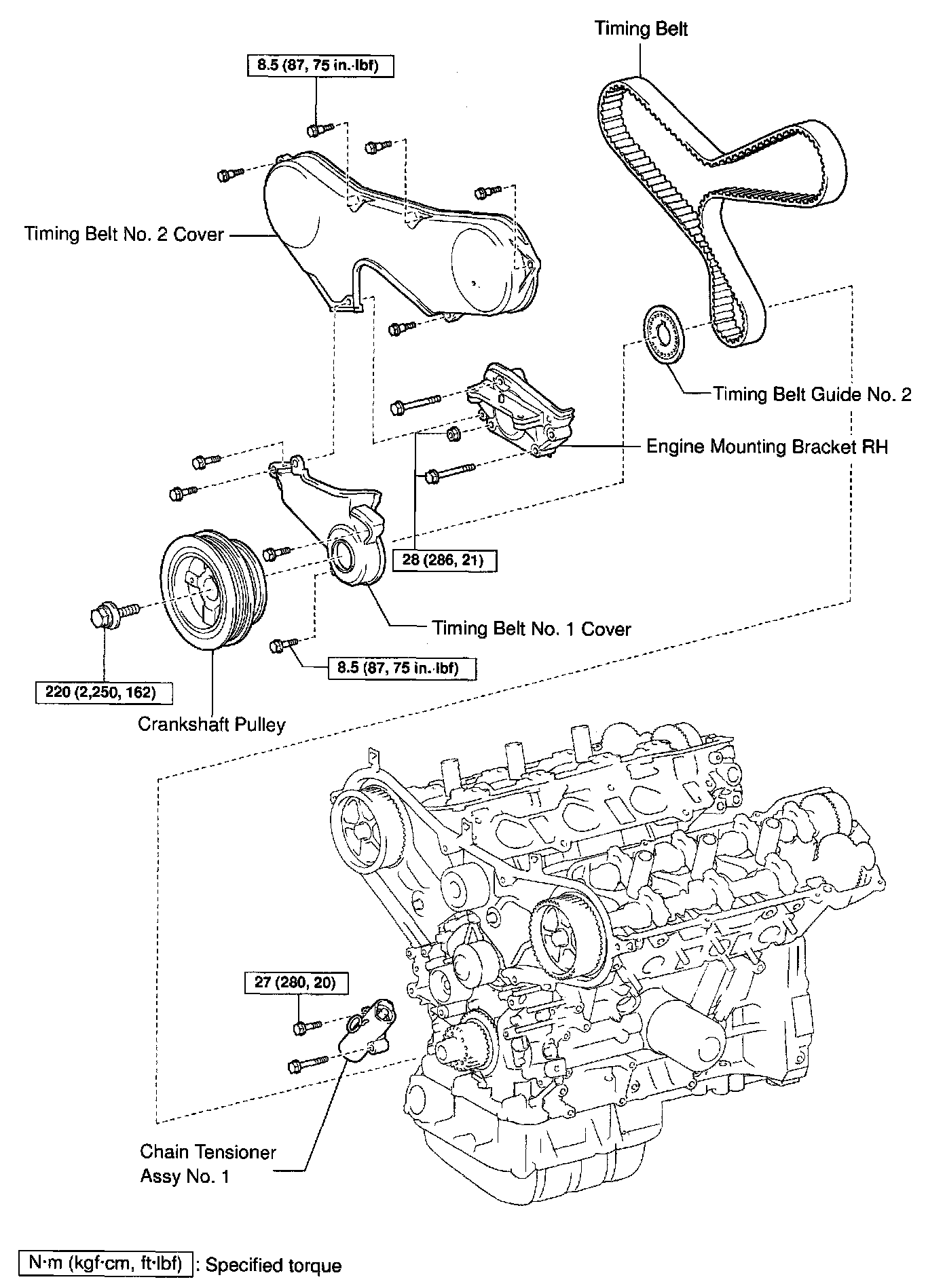

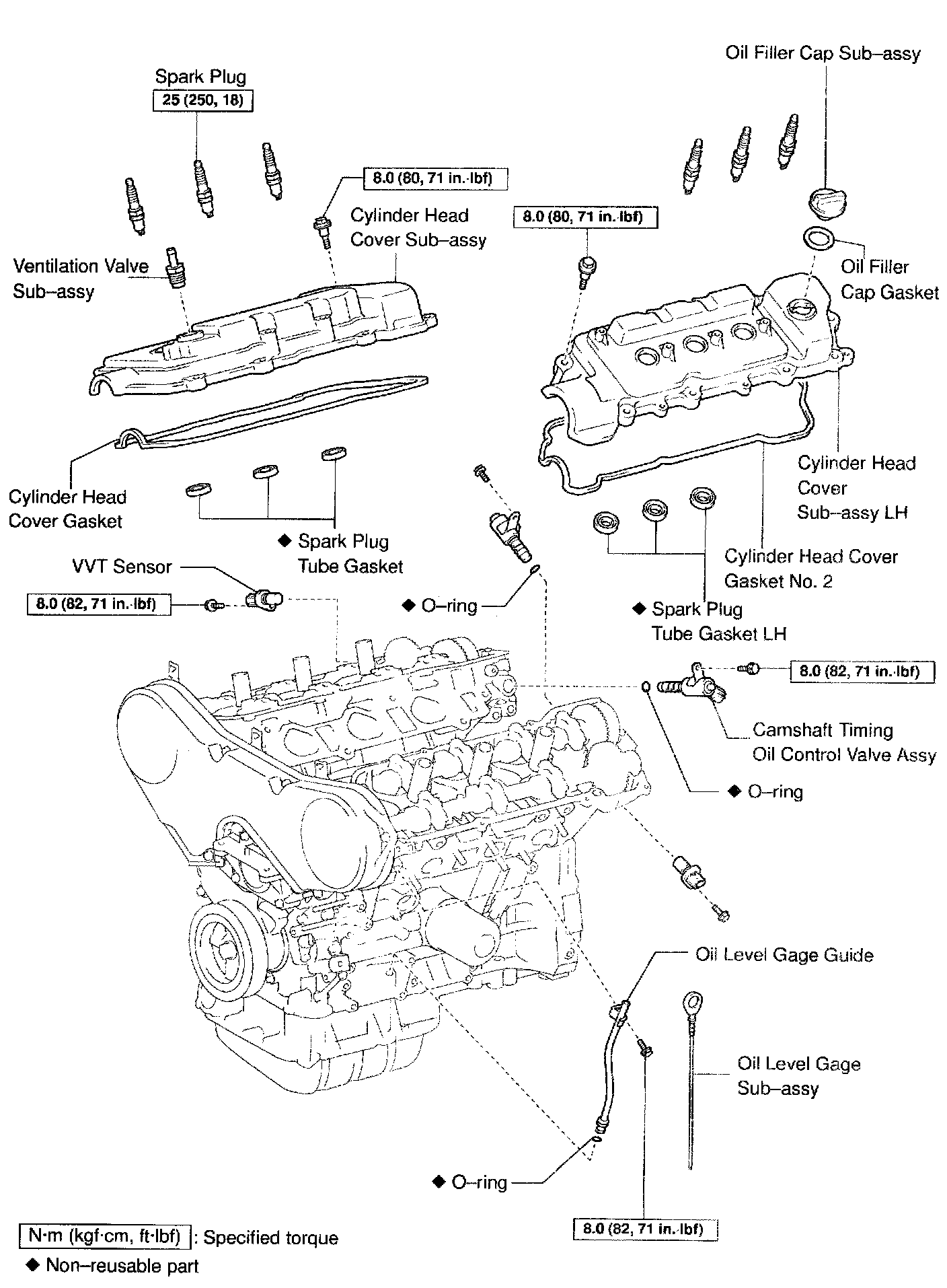

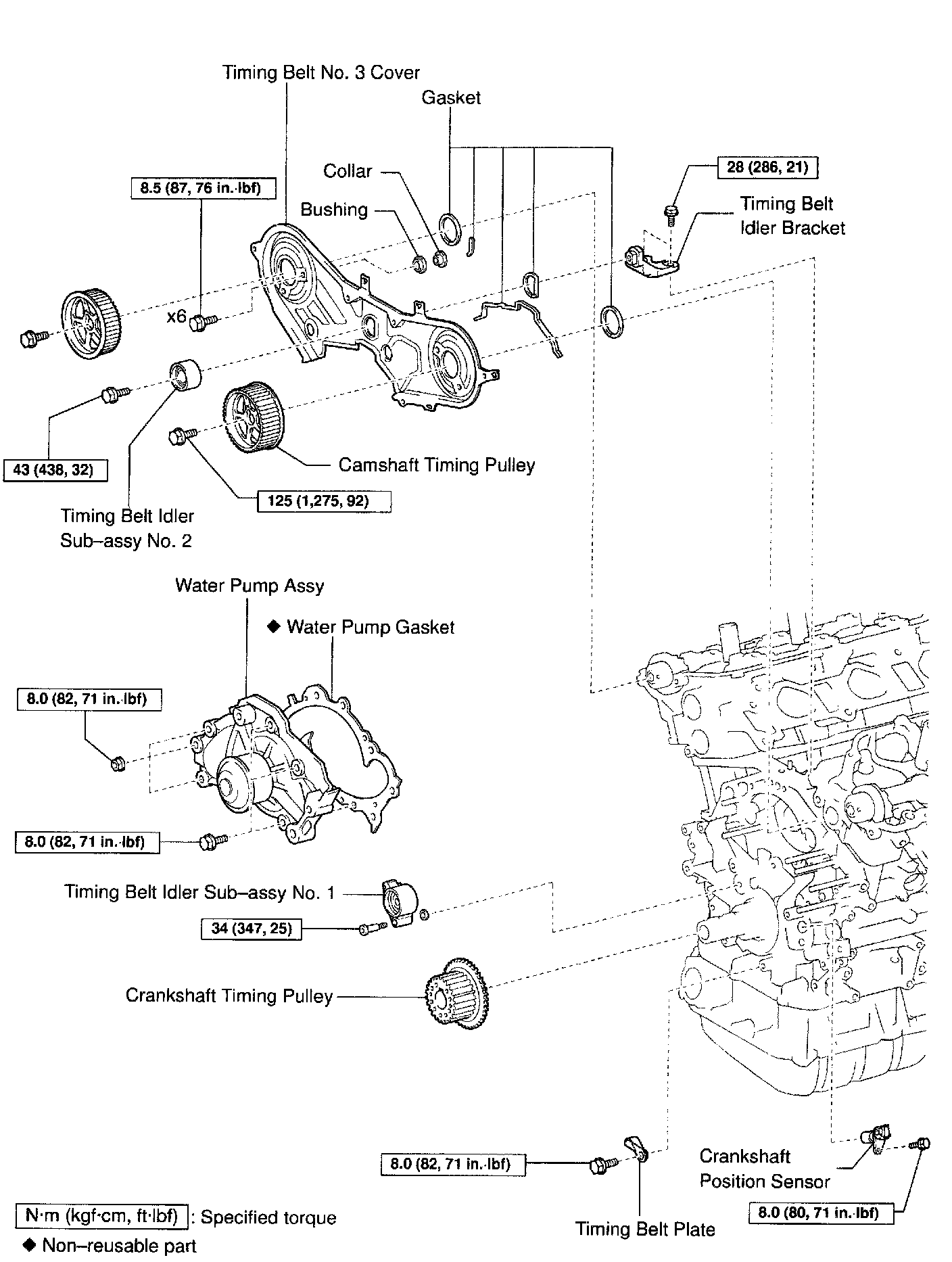

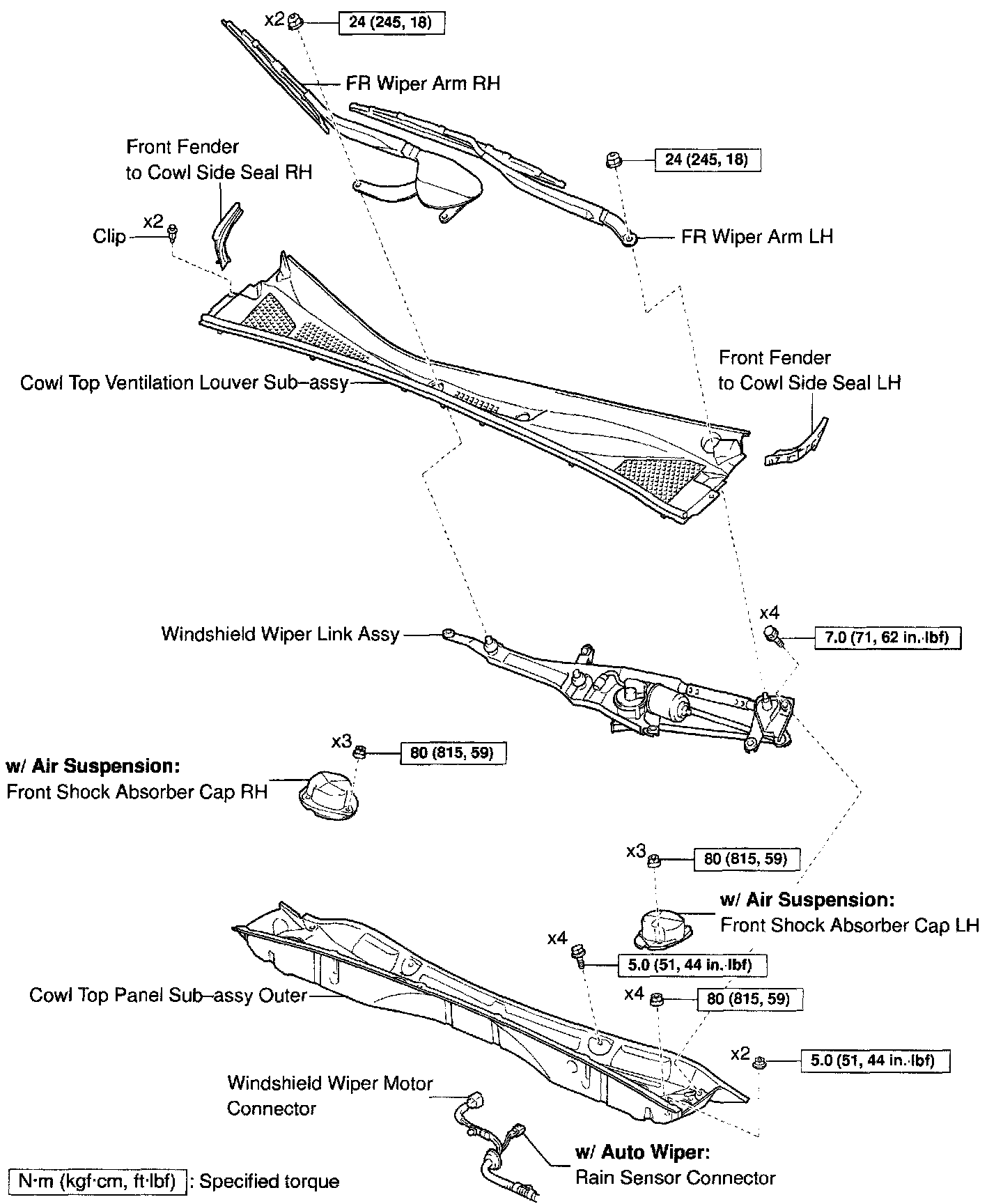

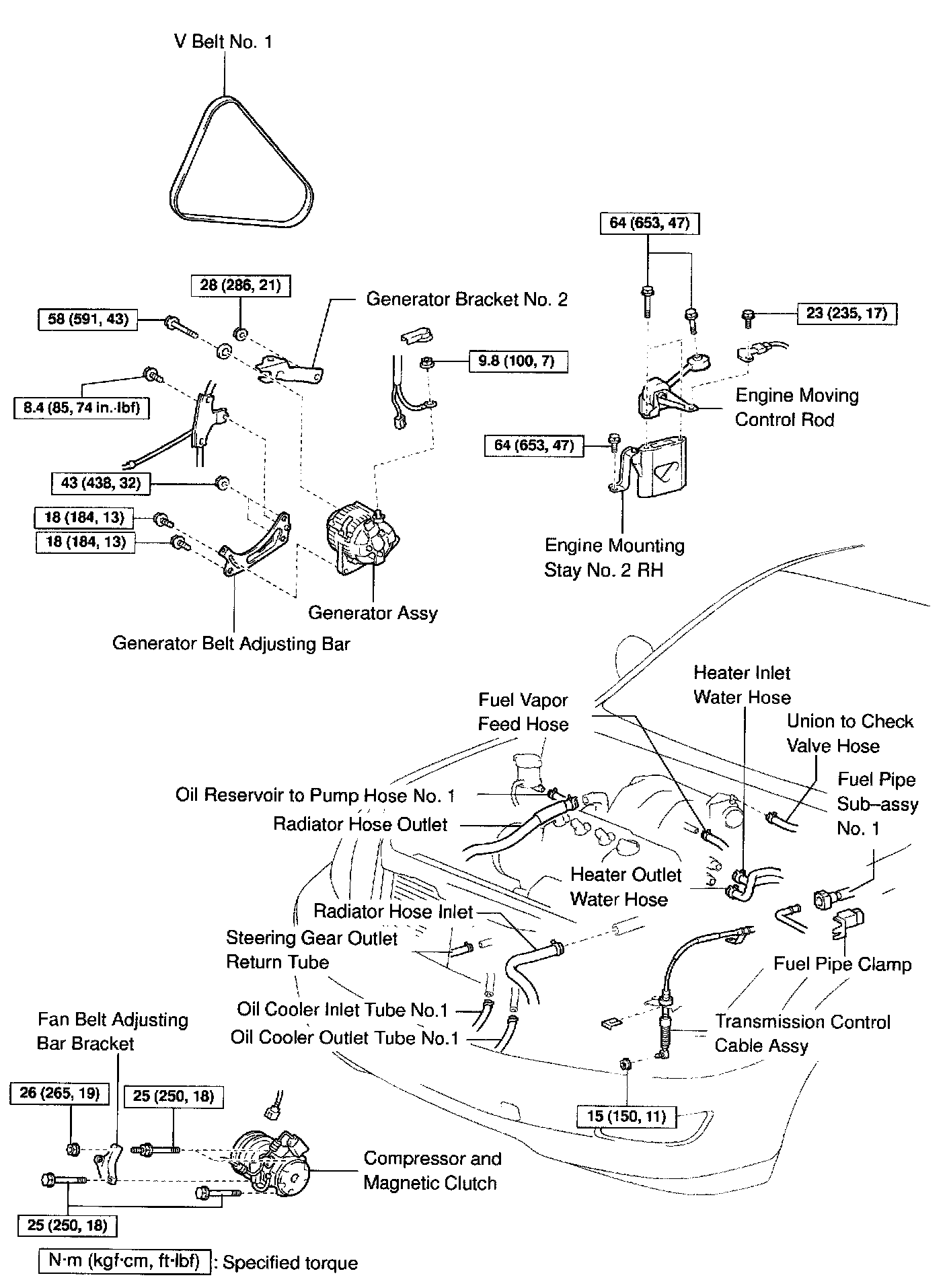

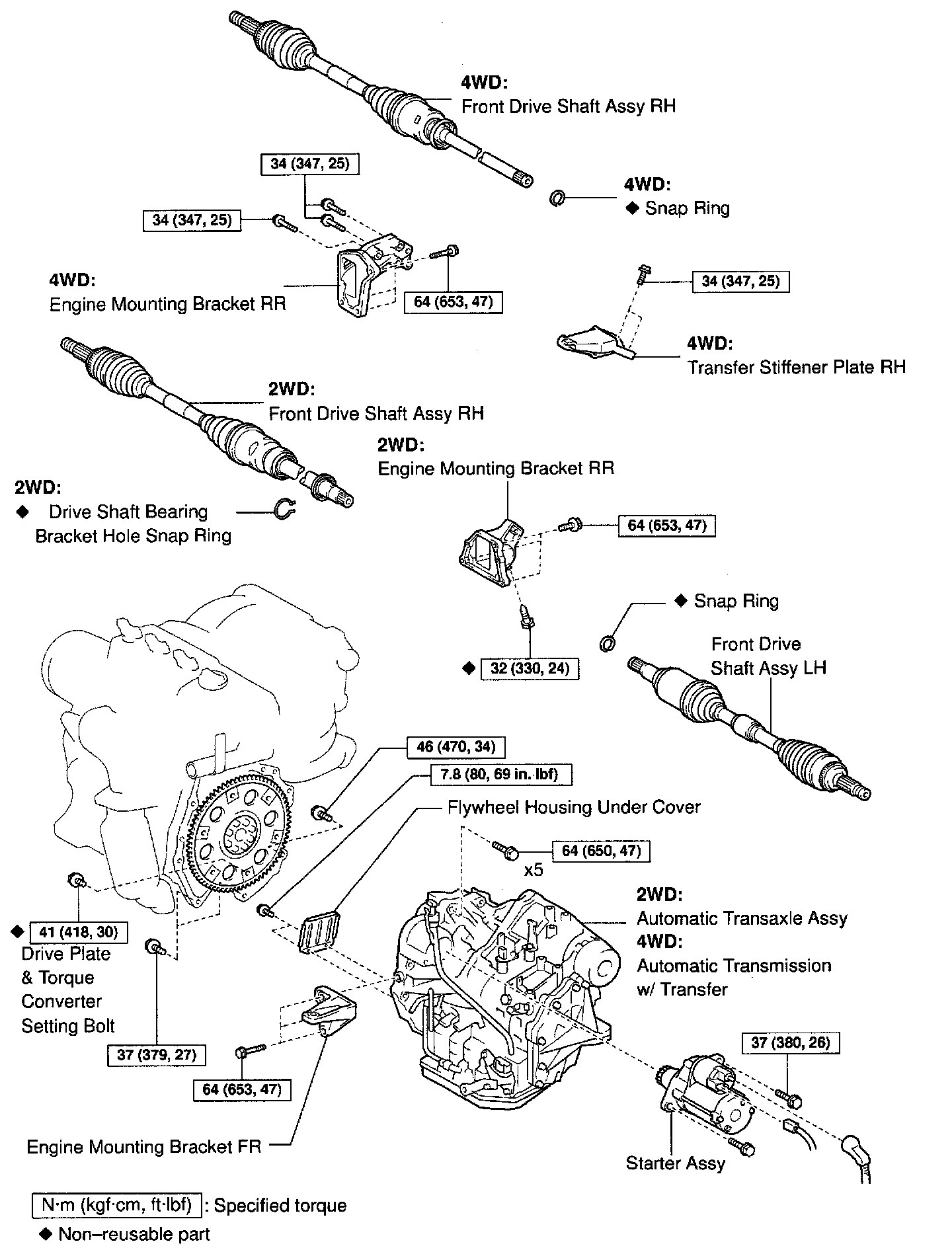

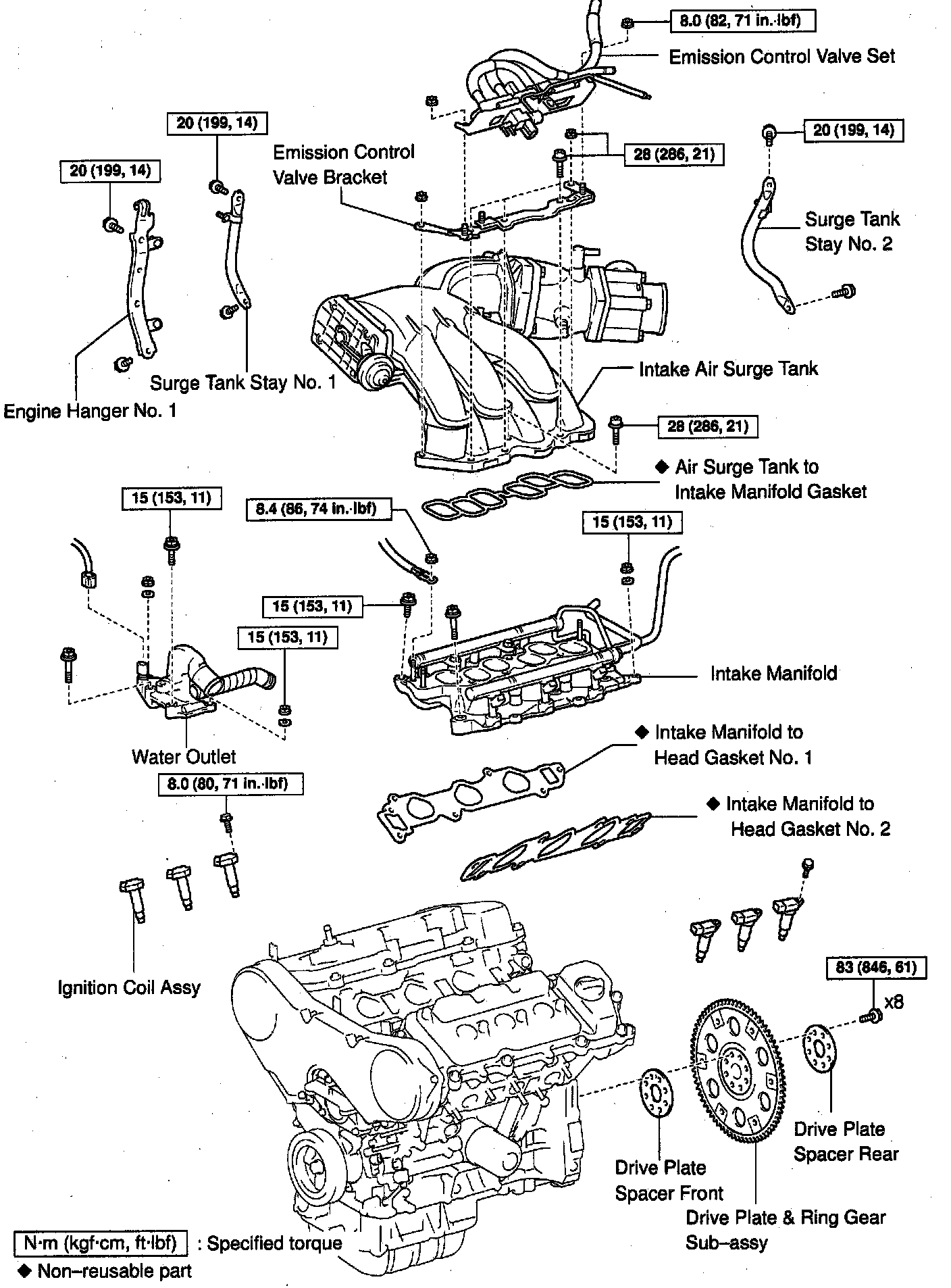

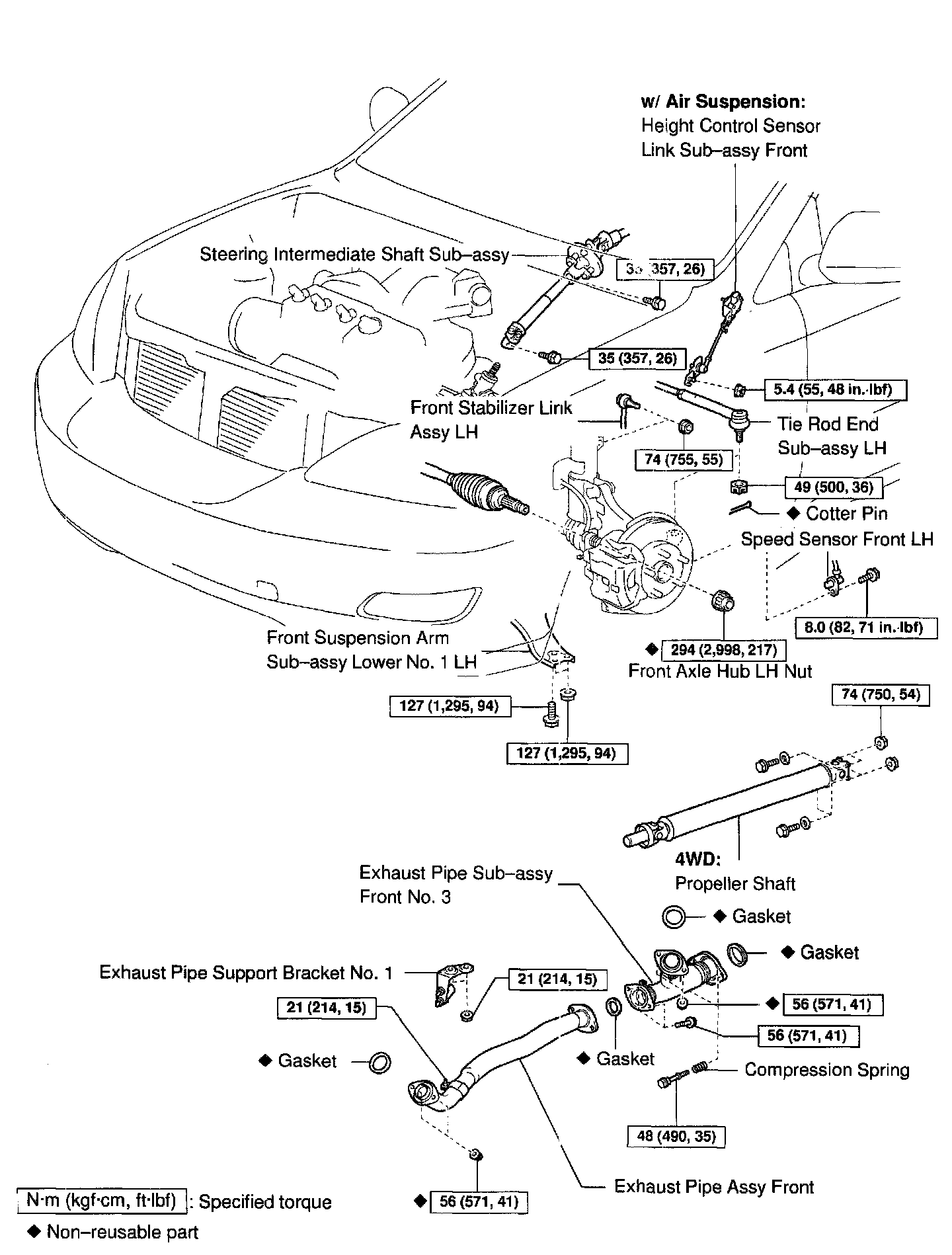

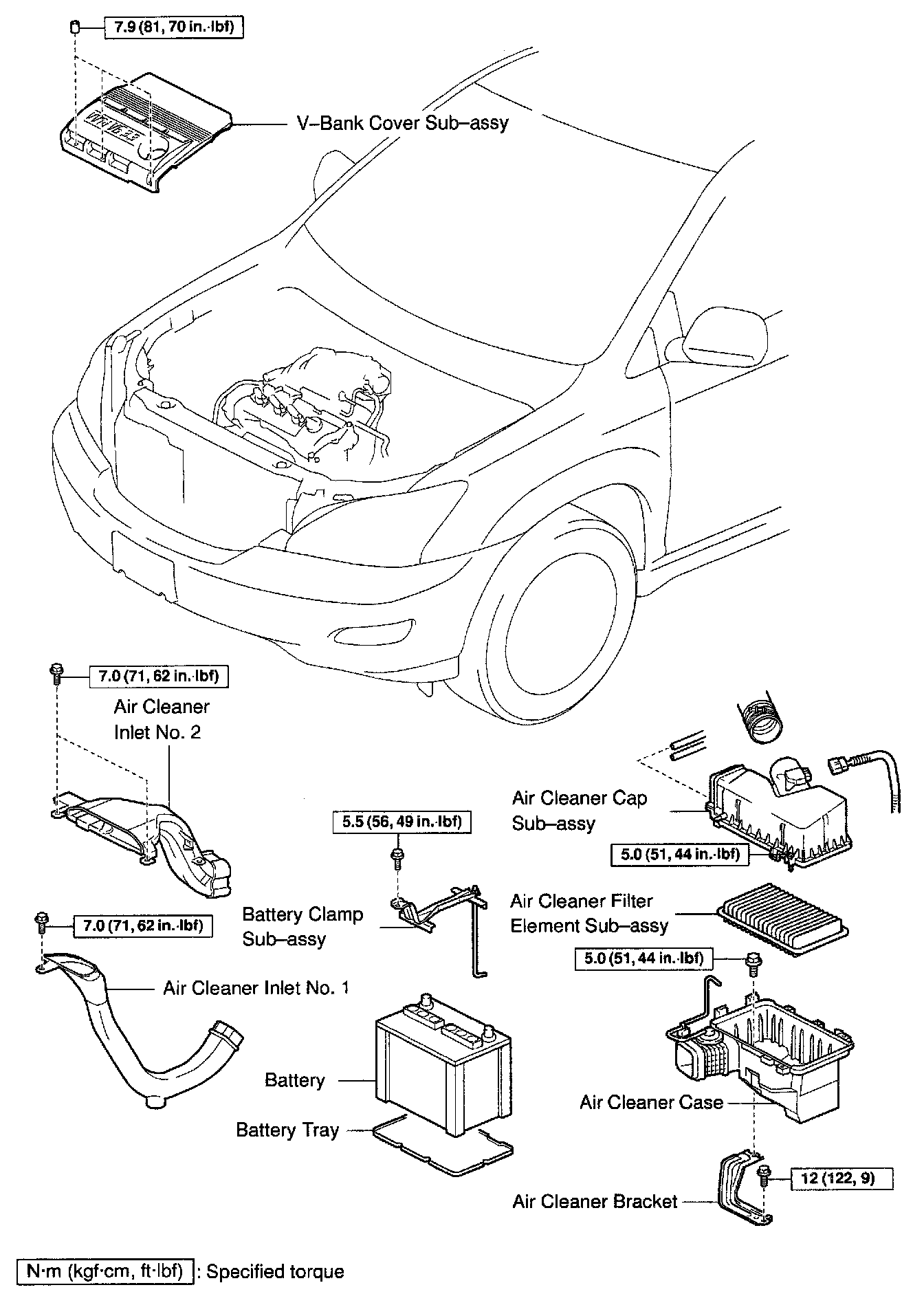

Engine Removal and Installation

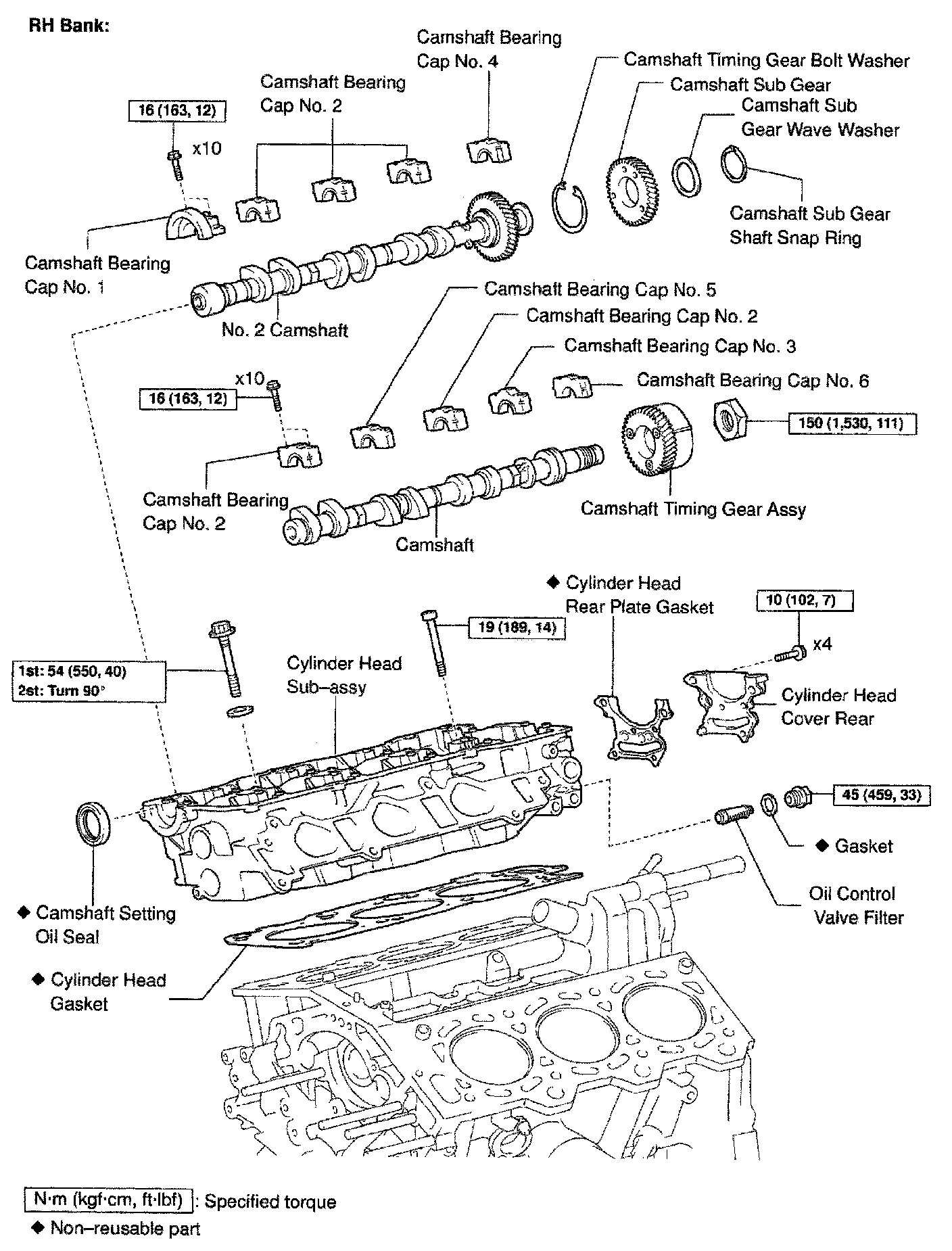

RH Bank:

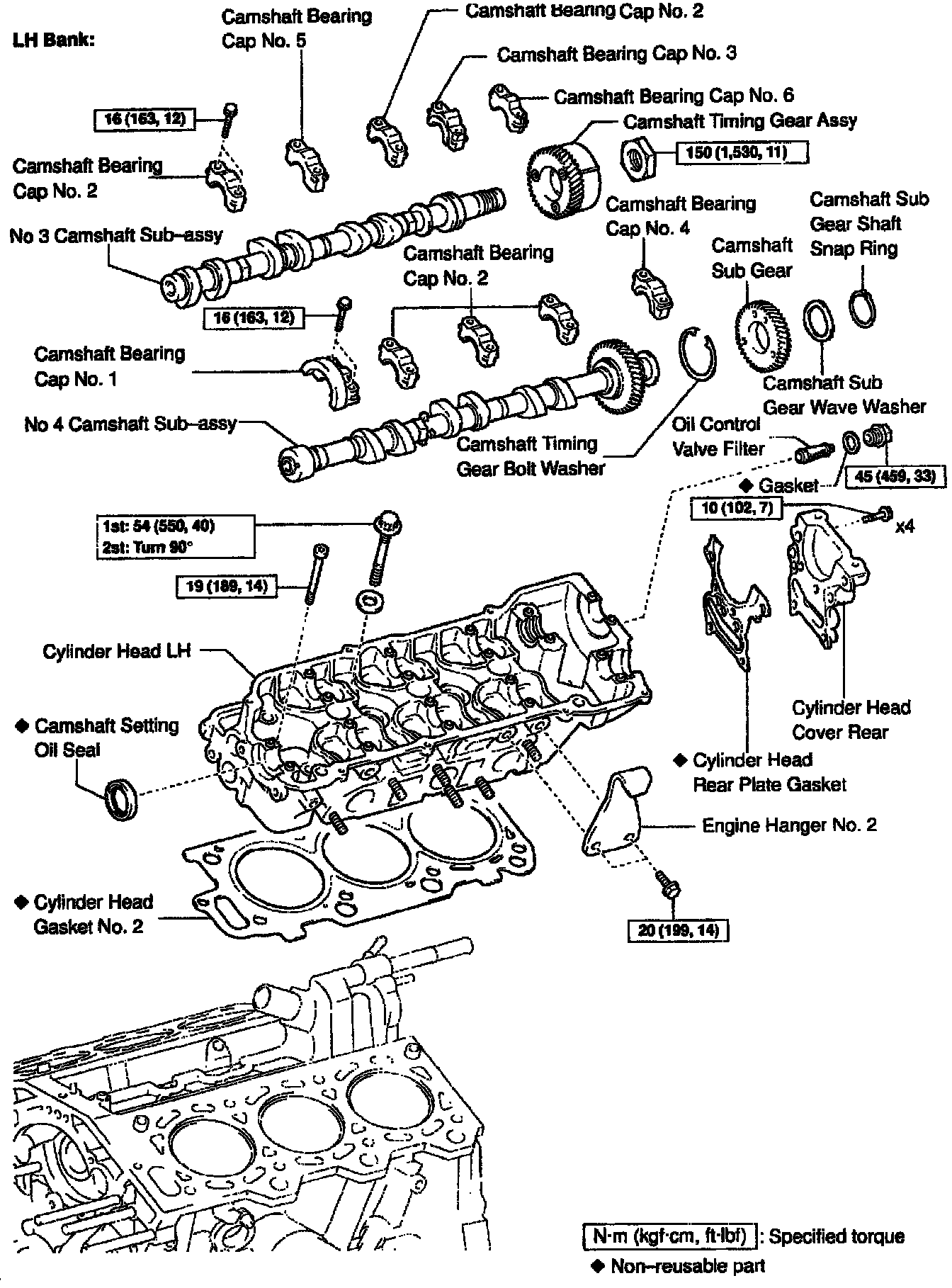

LH Bank:

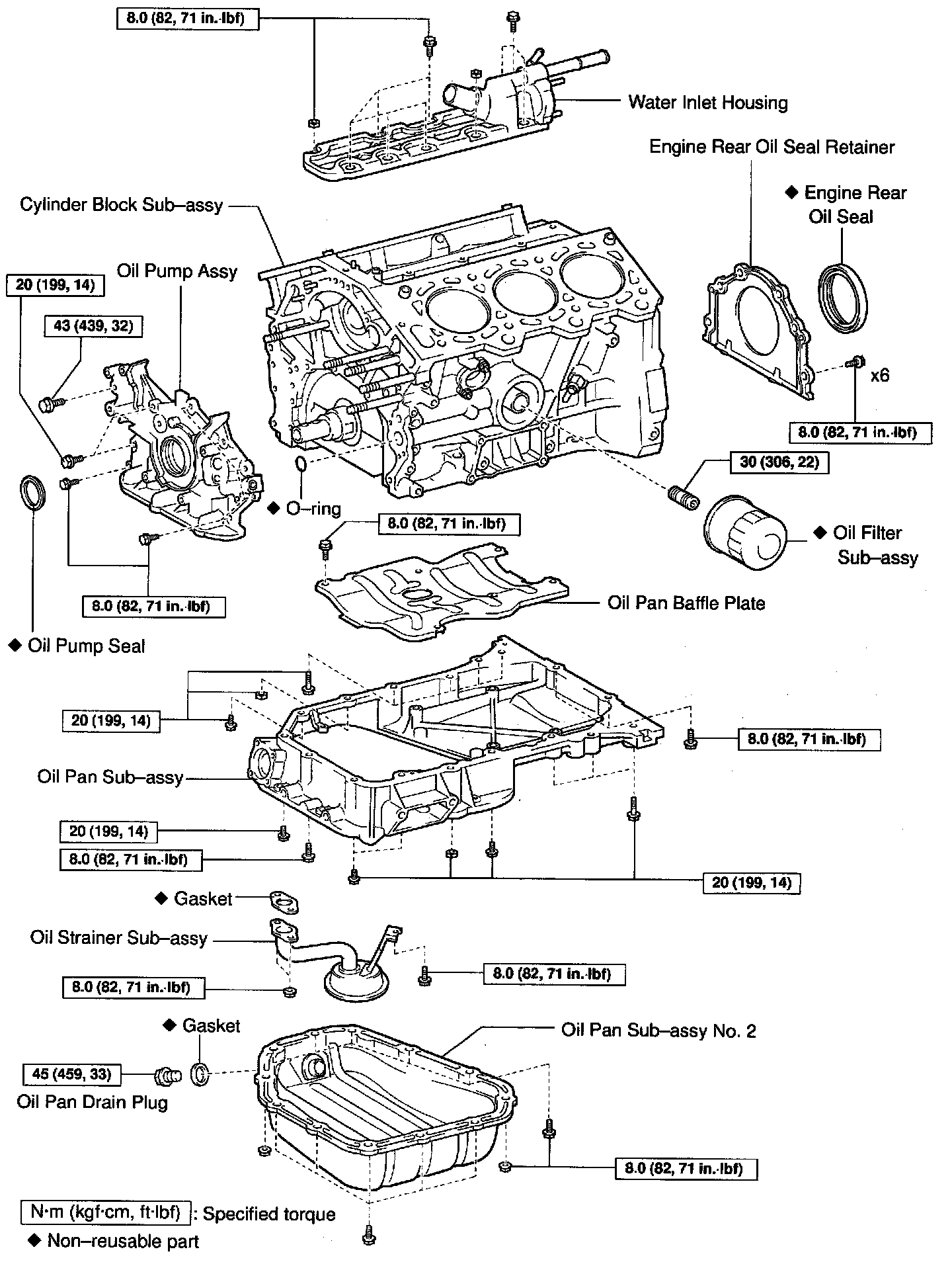

PARTIAL ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
