Control Module HVAC: Testing and Inspection

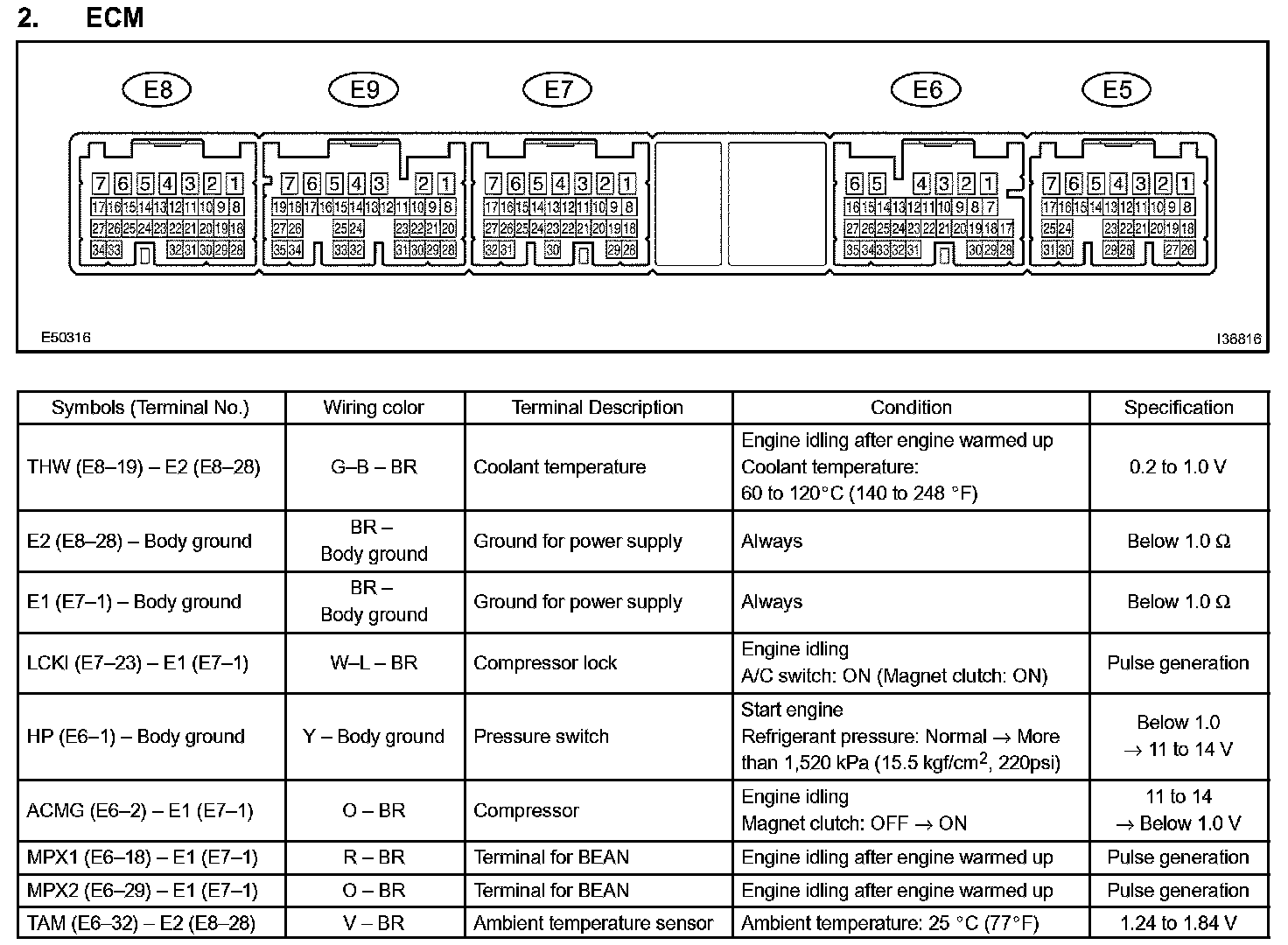

Terminals Of Control Module/Pinouts Part 1:

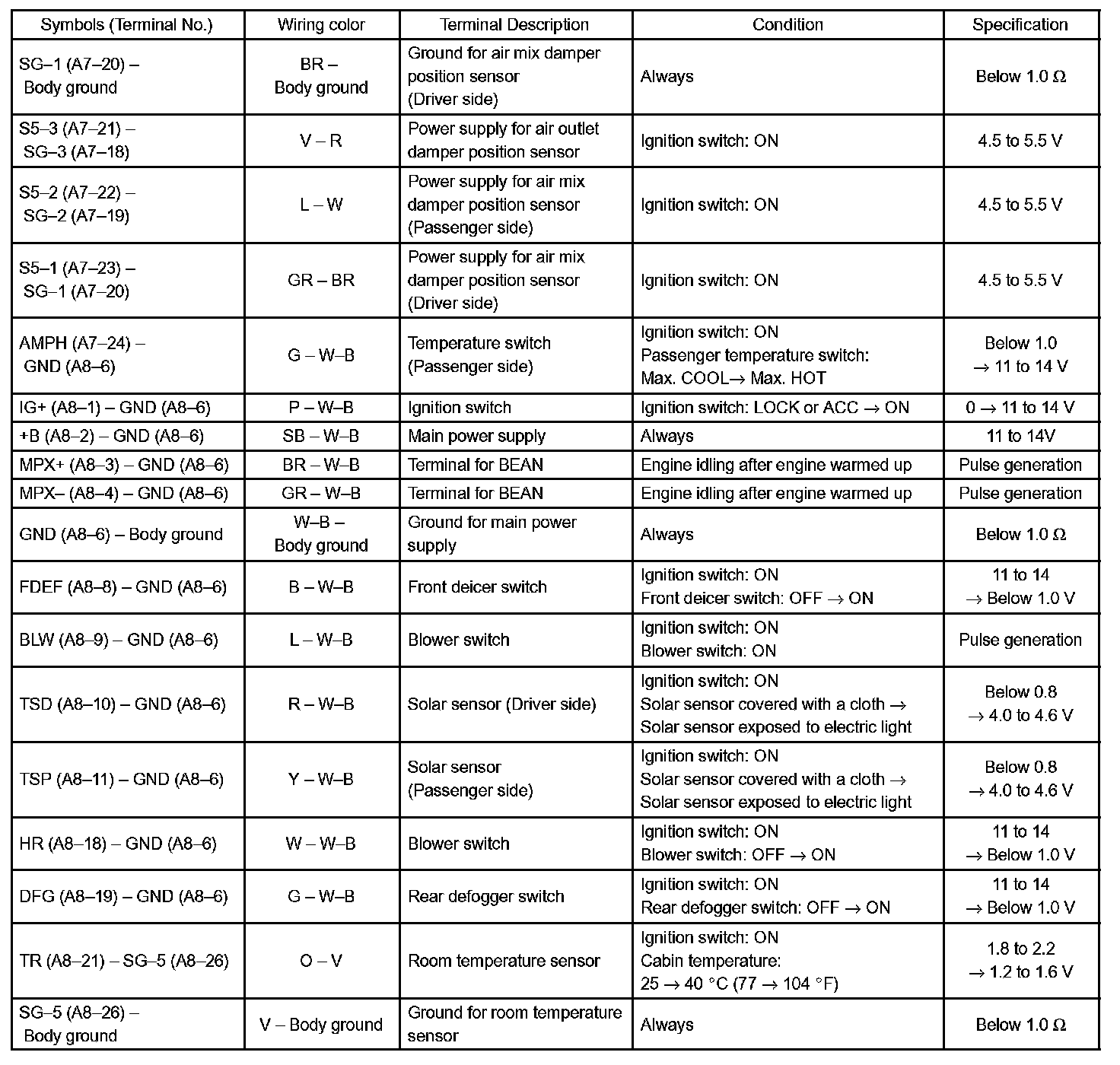

Terminals Of Control Module/Pinouts Part 2:

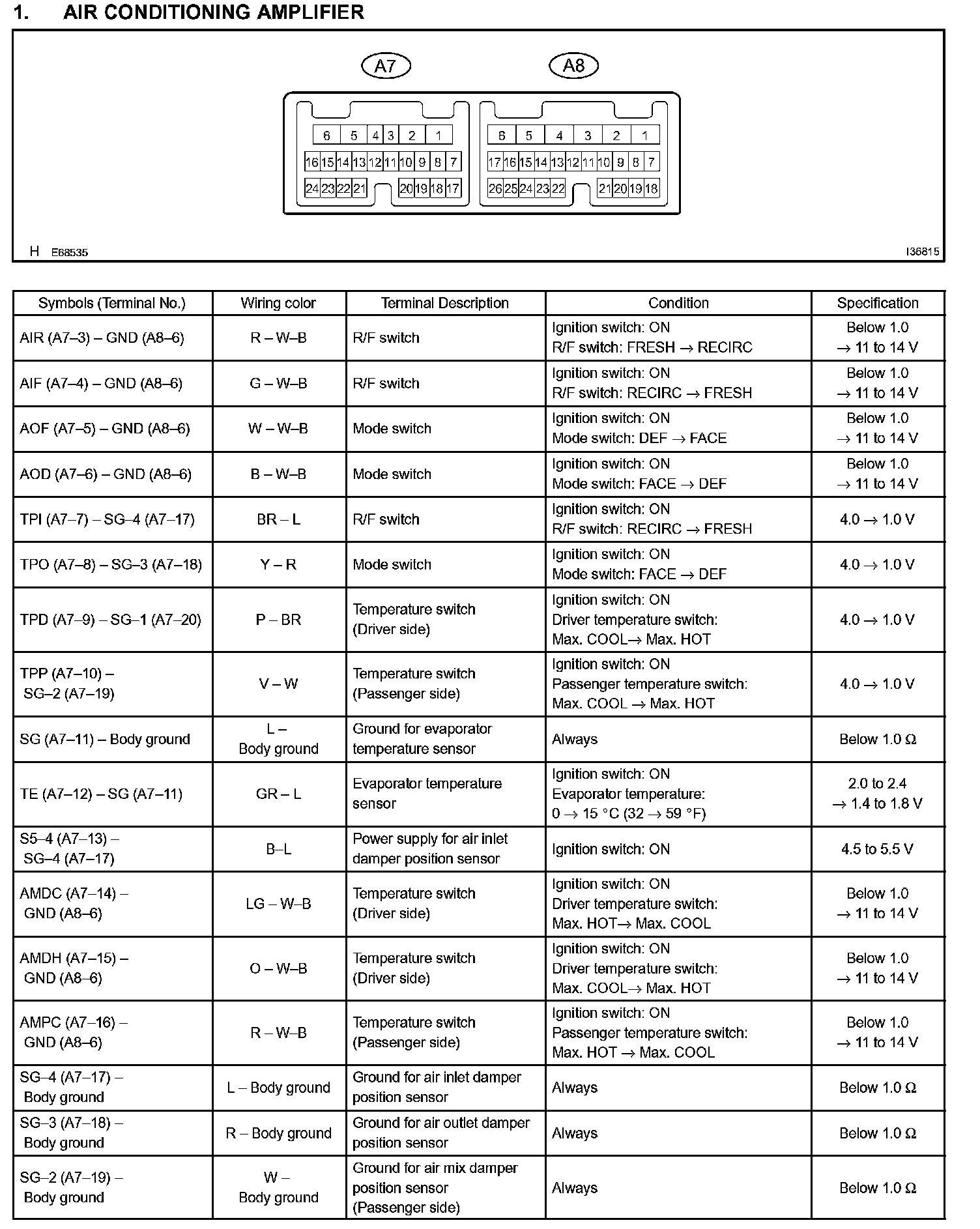

Terminals Of Control Module/Pinouts:

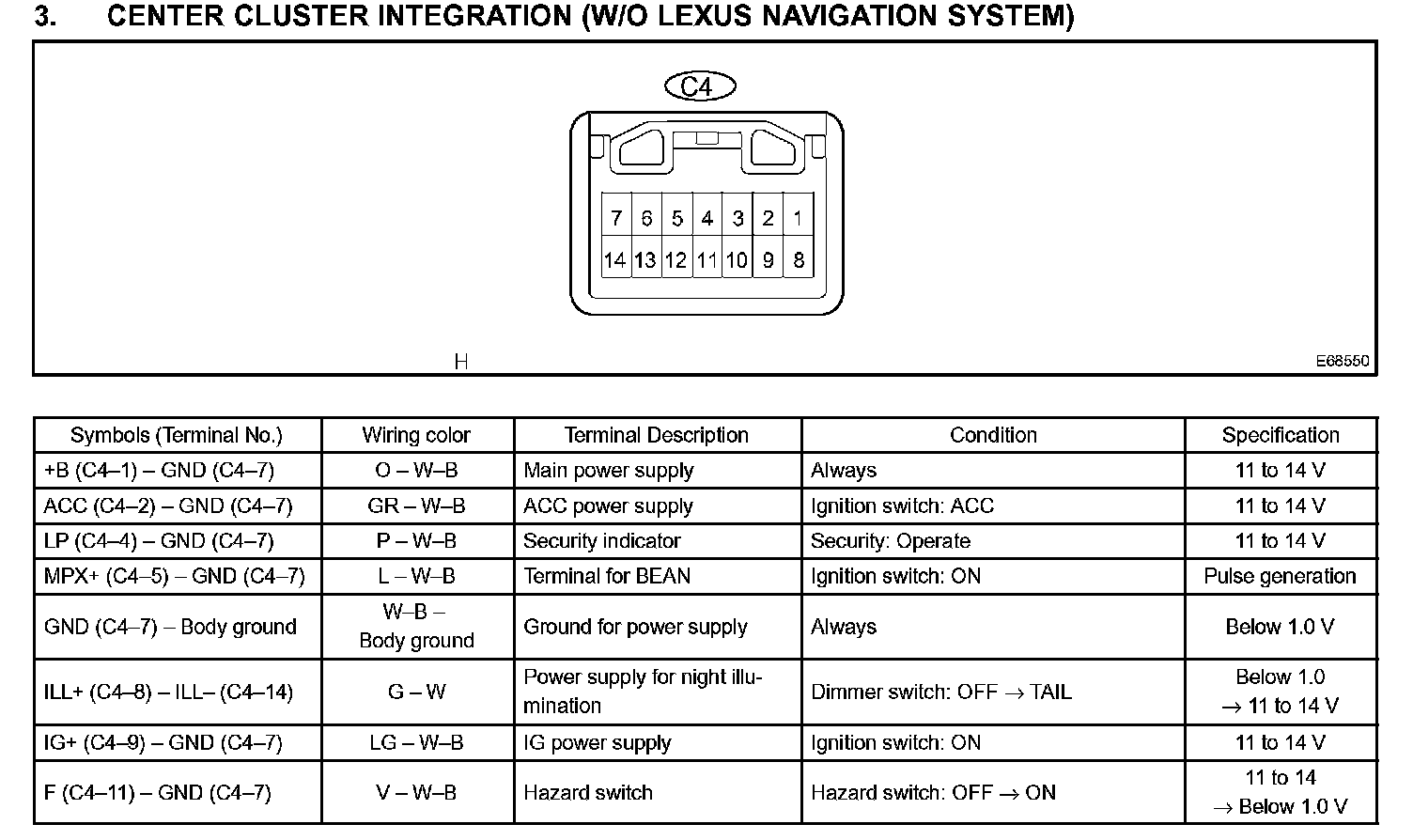

Terminals Of Control Module/Pinouts - Center Cluster Integration (W/O Lexus Navigation System) Part 1:

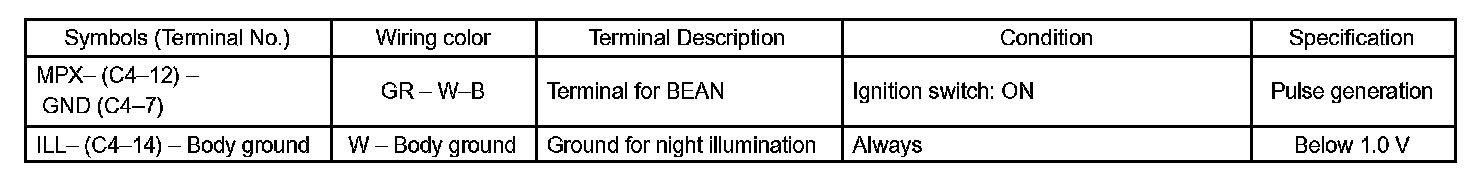

Terminals Of Control Module/Pinouts - Center Cluster Integration (W/O Lexus Navigation System) Part 2:

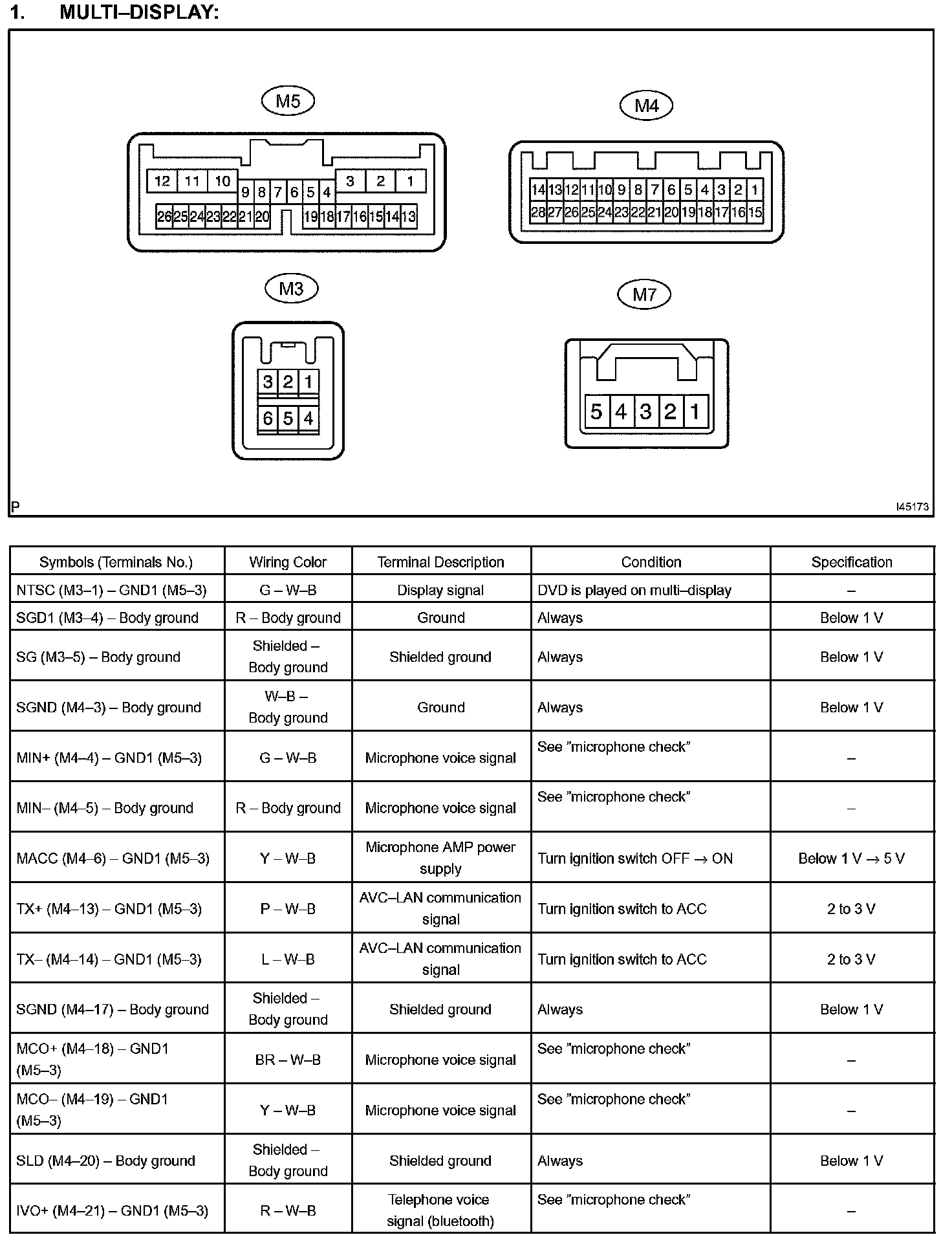

Terminals Of Control Module/Pinouts - Multi-Display Part 1:

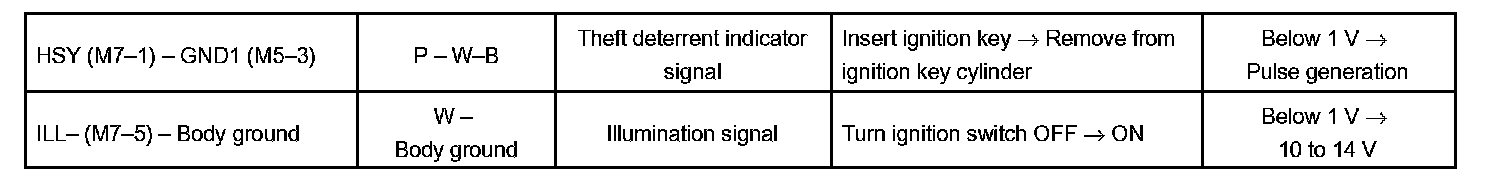

Terminals Of Control Module/Pinouts - Multi-Display Part 2:

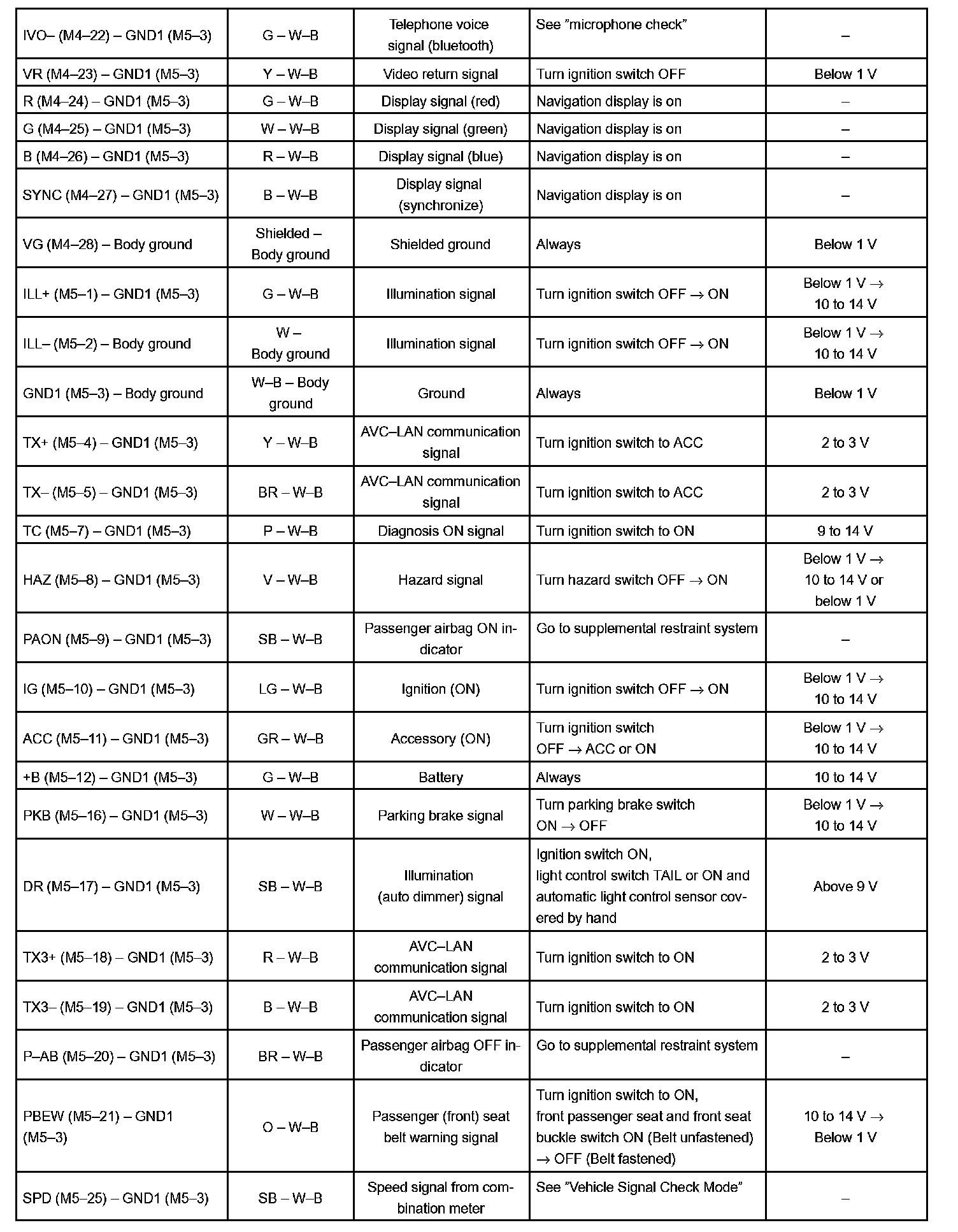

Terminals Of Control Module/Pinouts - Multi-Display Part 3:
