Engine Control Module: Locations

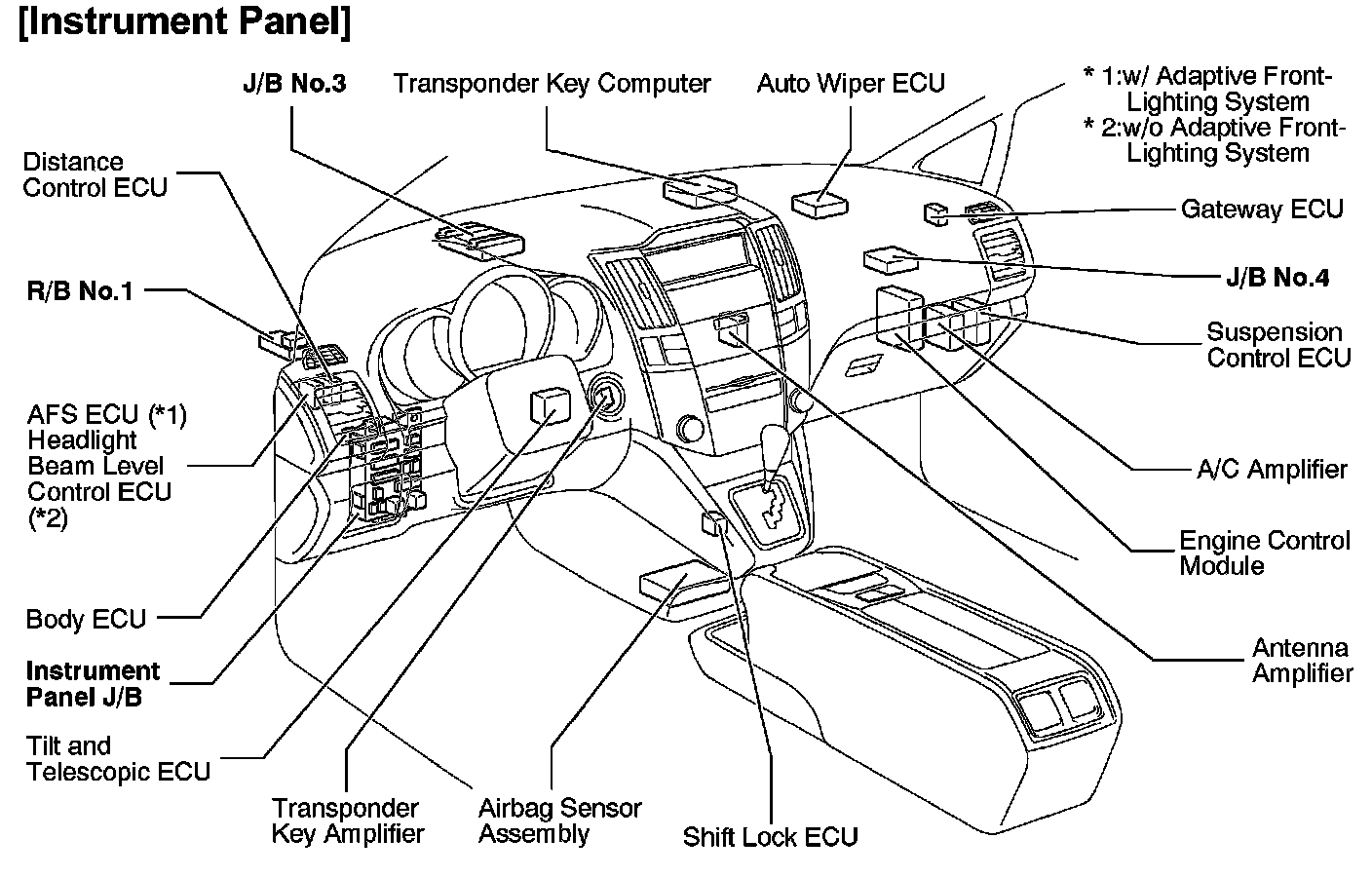

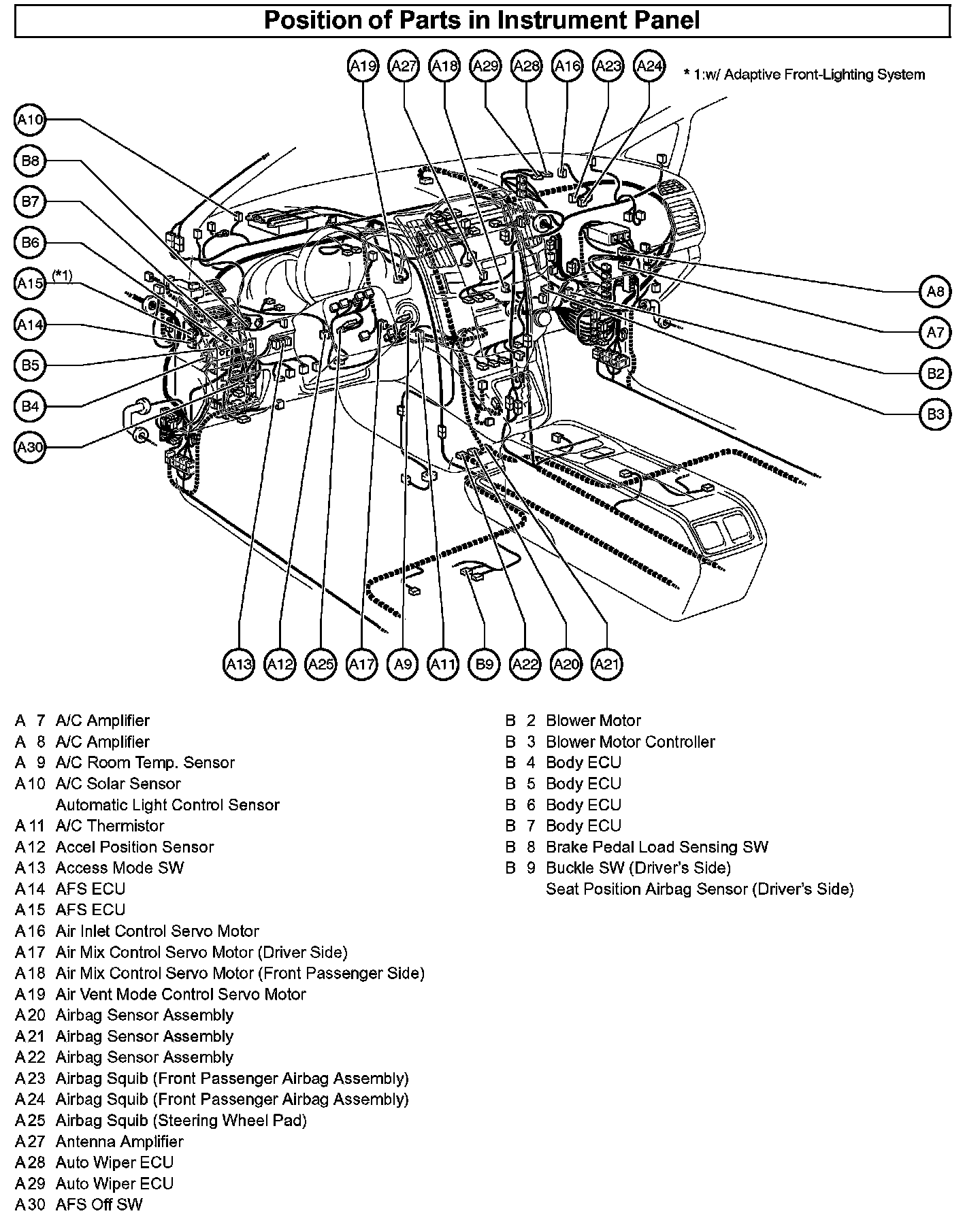

Instrument Panel:



A/C - Bu:

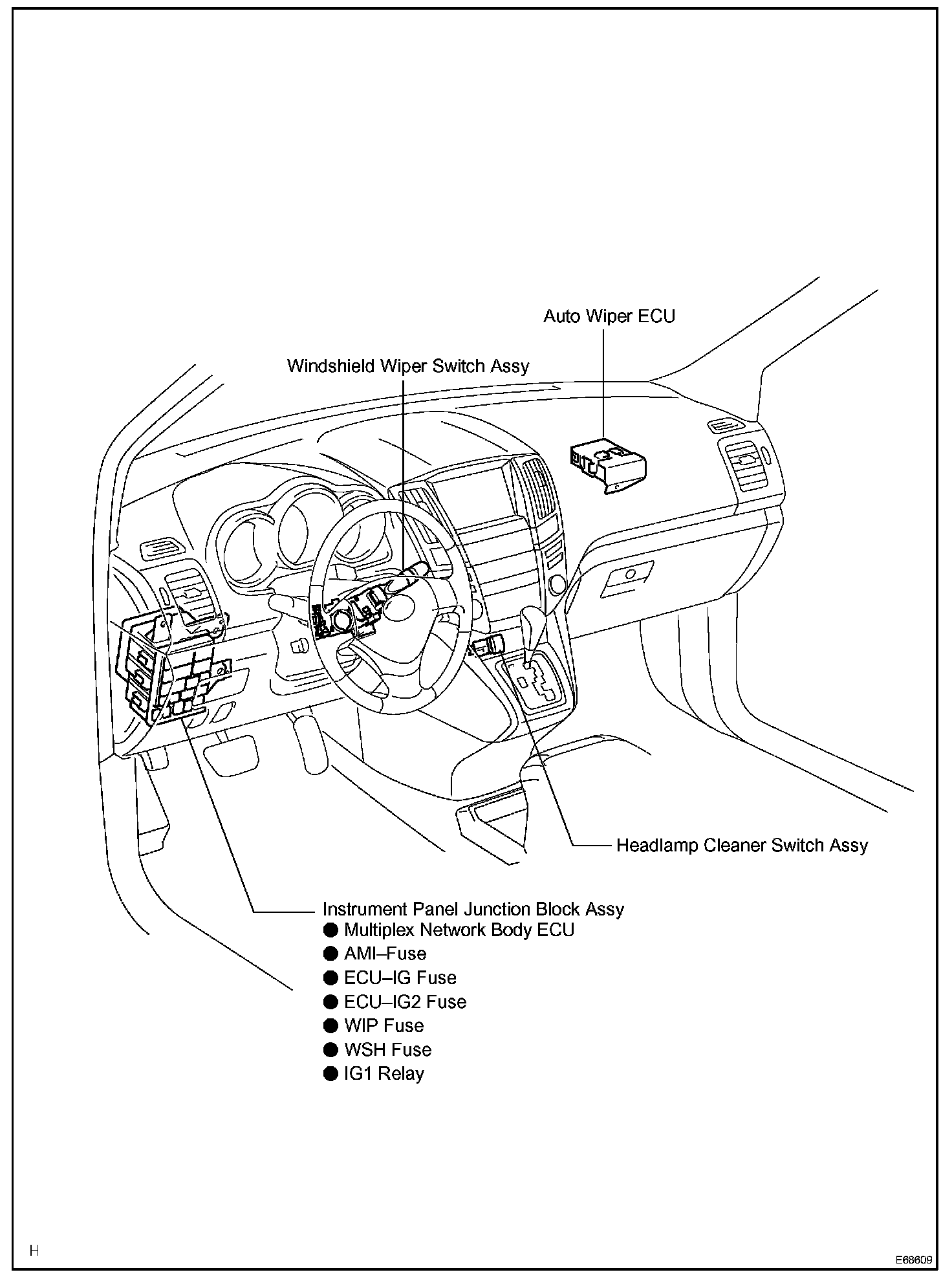

Wiper And Washer System:

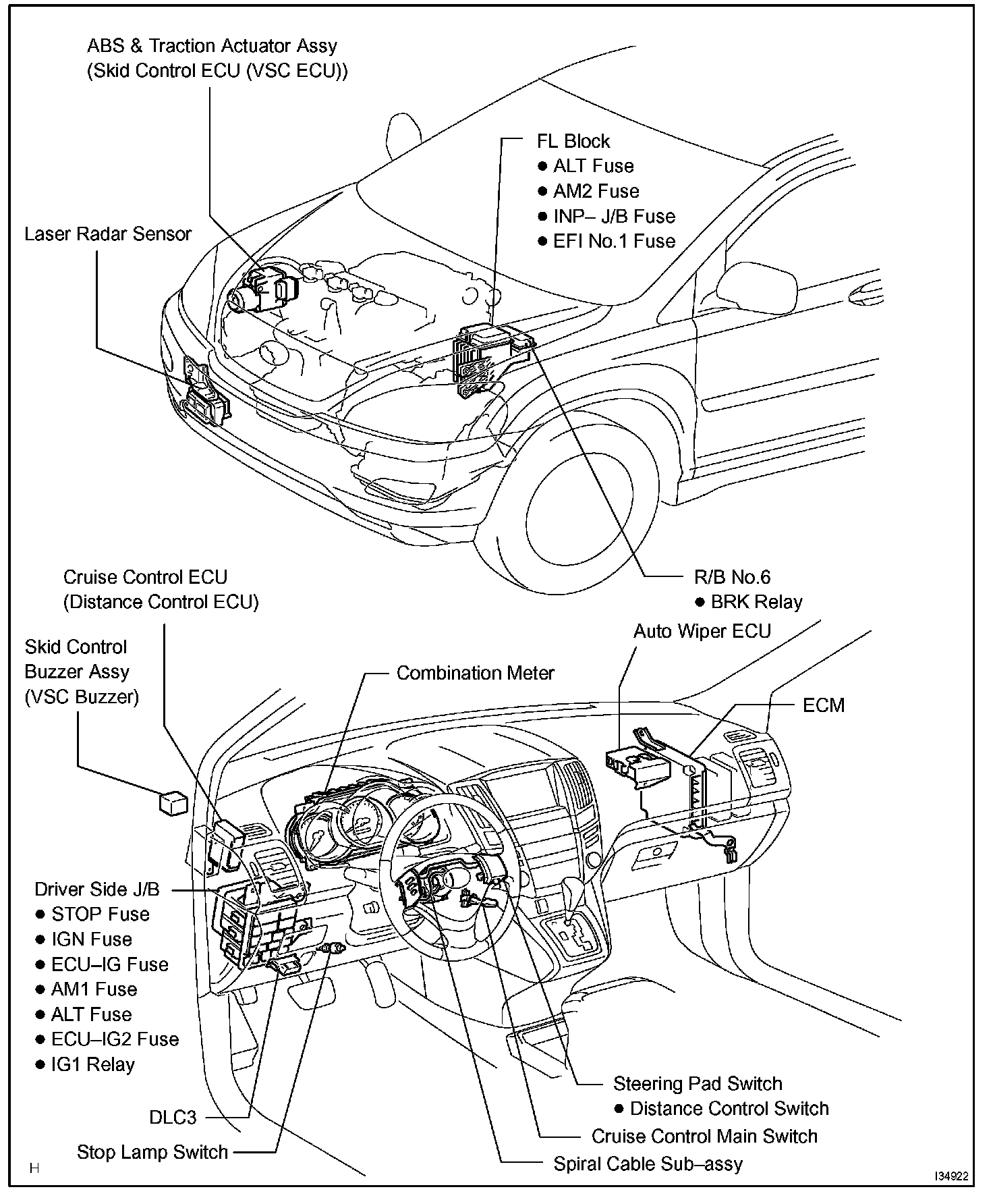

Dynamic Laser Cruise Control System:
