Service Data

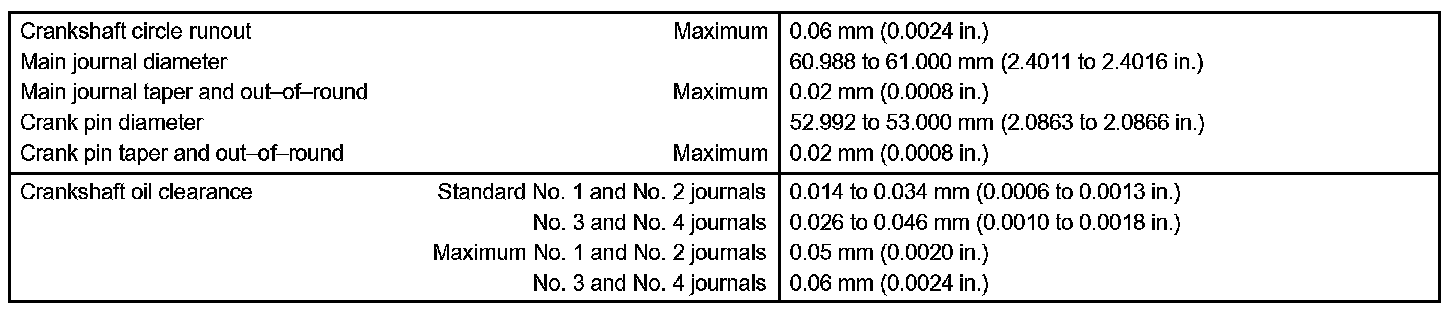

Engine Mechanical - Service Data Part 1:

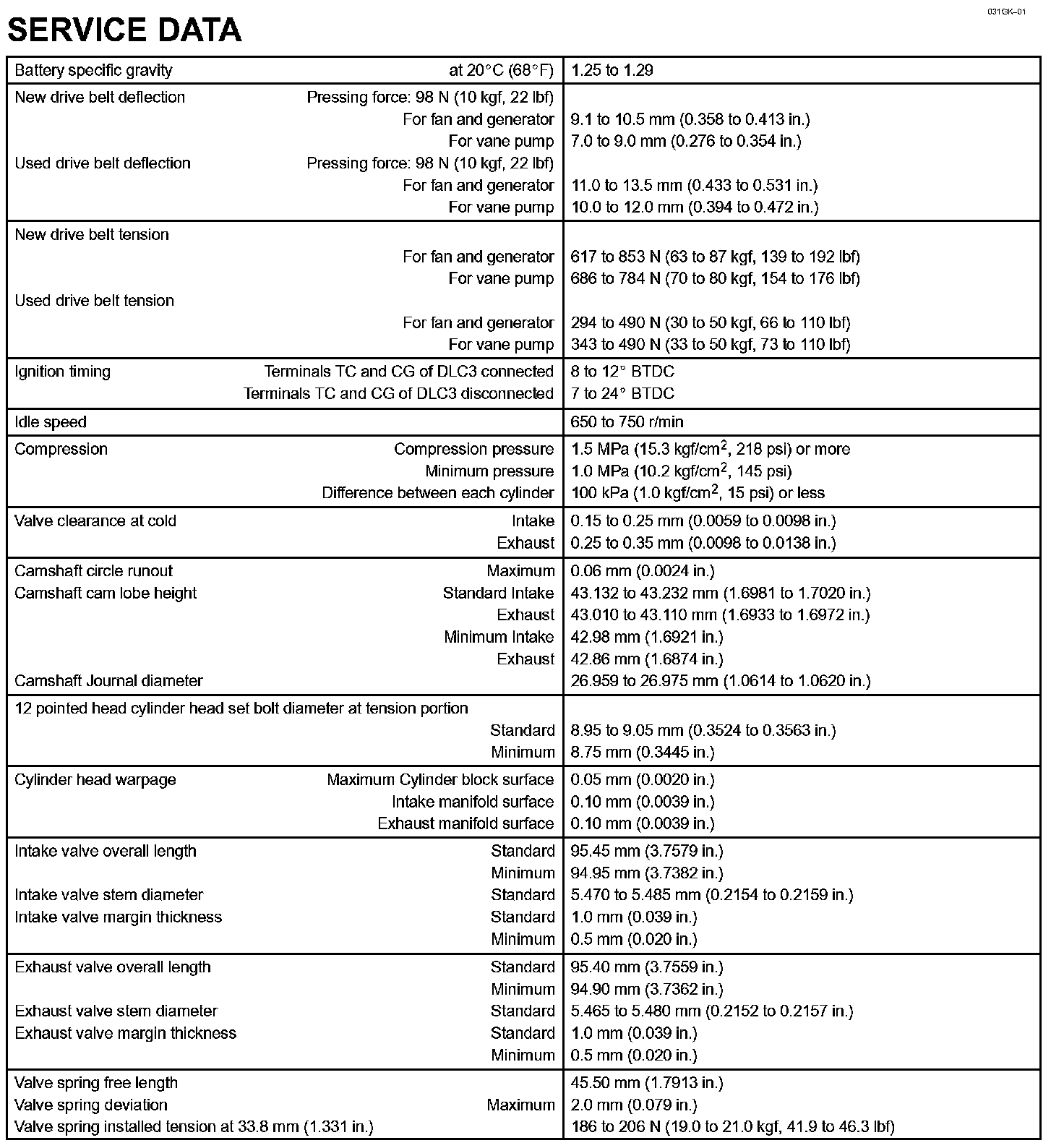

Engine Mechanical - Service Data Part 2:

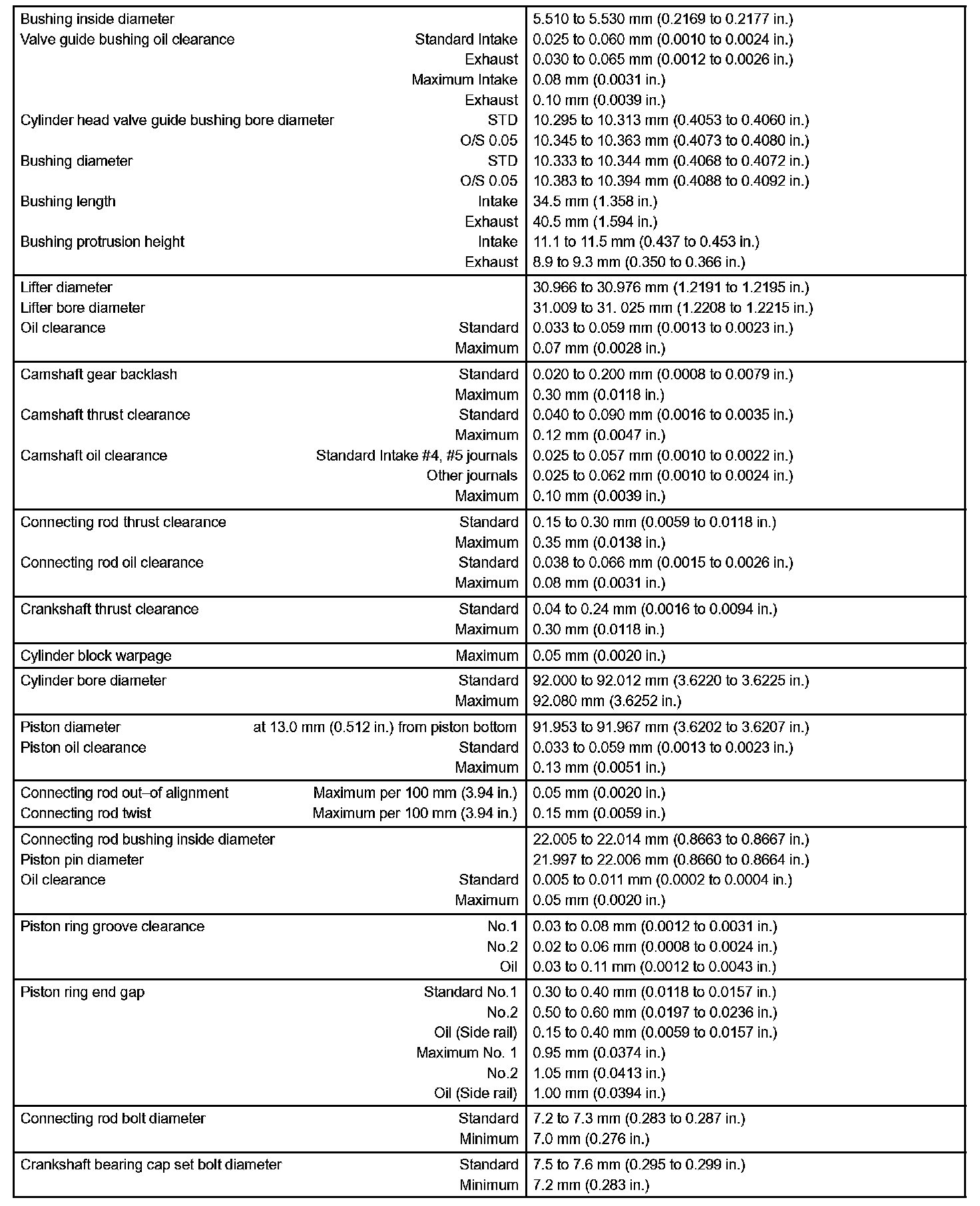

Engine Mechanical - Service Data Part 3:





Engine Mechanical - Service Data
