Auto Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

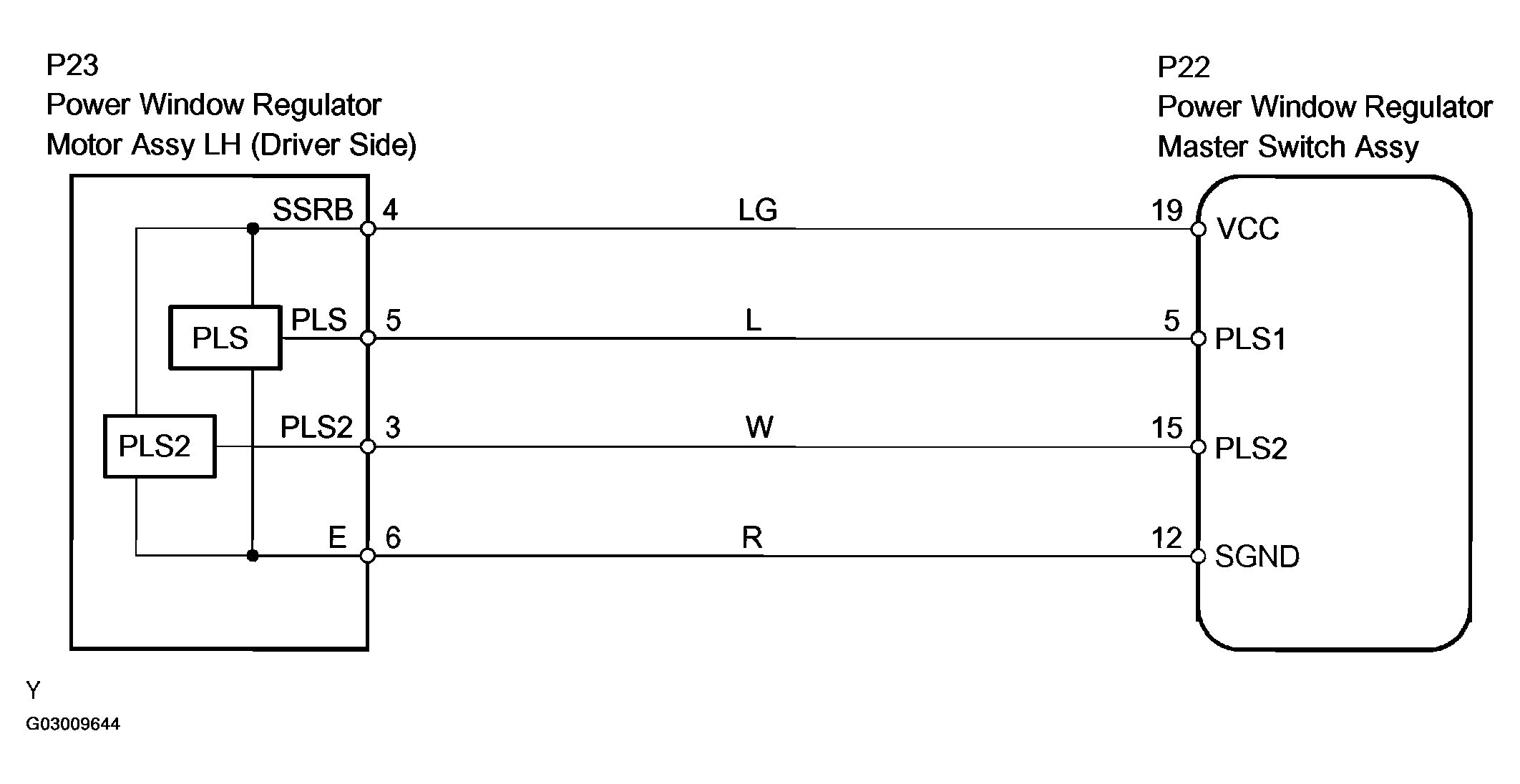

Fig 1: Auto Up/Down Function Does Not Operate On Driver Side Wiring Diagram
G03009644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
