Inspection Procedure

  1. CHECK AUTO UP/DOWN FUNCTION (DRIVER SIDE)
    1. Check that the power window AUTO UP/DOWN function operates normally.

      HINT:

      • If the function works normally, go to step A.
      • If the function with the driving position memory switch does not work normally, go to step B.
      • If the function without the driving position memory switch does not work normally, go to step C.
    1. B: Go to step 2.
    2. C: Go to step   4 .
    3. A: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
  2. W/DRIVING POSITION MEMORY SWITCH: CHECK POWER SOURCE (FUSE)
    1. Check that the remote control mirror functions operate normally.
    1. NG: Go to step   4 .
    2. OK: Go to next step.
  3. PERFORM ACTIVE TEST USING HAND-HELD TESTER
    1. Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the driver side power window operates.

      Standard (Power window regulator master switch (Driver door ECU)):

      POWER WINDOW REGULATOR MASTER SWITCH (DRIVER DOOR ECU)

      Item Test Detail
      P/W UP/DOWN Operates power window UP/DOWN
    1. NG: Go to step   6 .
    2. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
  4. INSPECT FUSE (ECU-B, ECU-IG NO. 1, PWR)
    1. Remove the ECU-B fuse from the F/L block.
    2. Remove the ECU-IG NO. 1 fuse and PWR M-fuse from the instrument panel J/B.
    3. Check the resistance.

      Standard: Below 1 Ω

    1. NG: REPLACE FUSE
    2. OK: Go to next step.
  5. PERFORM ACTIVE TEST USING HAND-HELD TESTER
    1. Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the driver side power window operates.

      Standard (Power window regulator master switch (Driver door ECU)):

      POWER WINDOW REGULATOR MASTER SWITCH (DRIVER DOOR ECU)

      Item Test Detail
      P/W UP/DOWN Operates power window UP/DOWN
    1. NG: Go to step   8 .
    2. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
  6. CHECK WIRE HARNESS (FOR POWER SOURCE OF POWER WINDOW REGULATOR MASTER SWITCH ASSY)
    1. Disconnect the P22 master switch connector.
    2. Check the voltage between the wire harness side connector and the body ground.

      Standard:

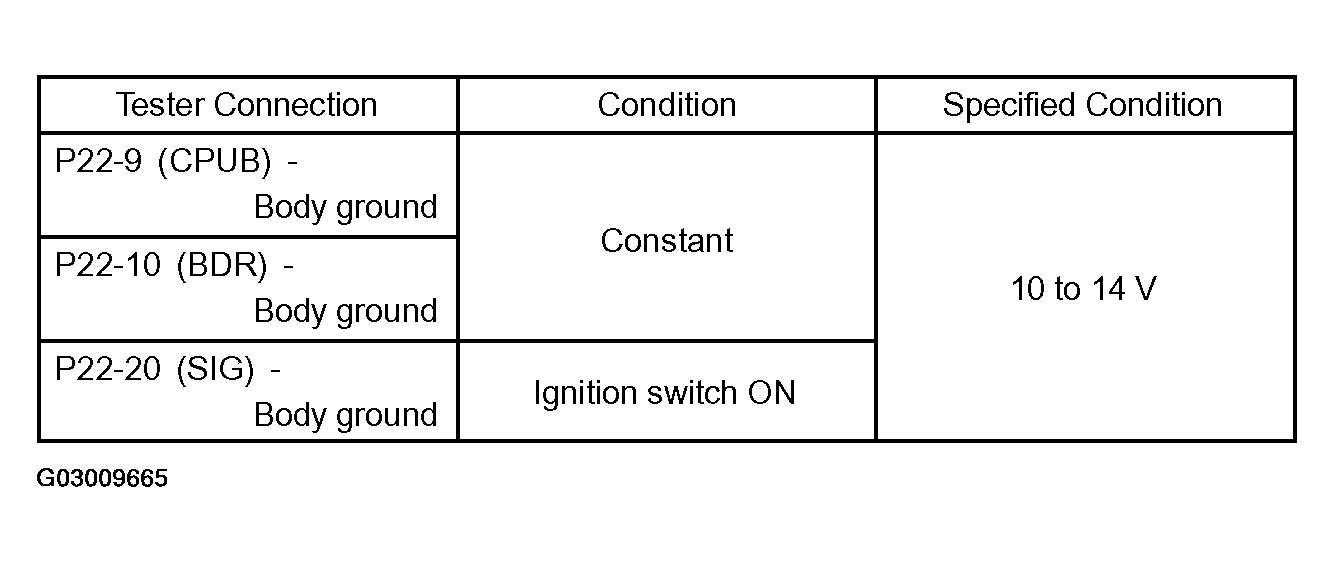

      Fig 1: For Power Source Of Power Window Regulator Master Switch Assy Table
      G03009665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

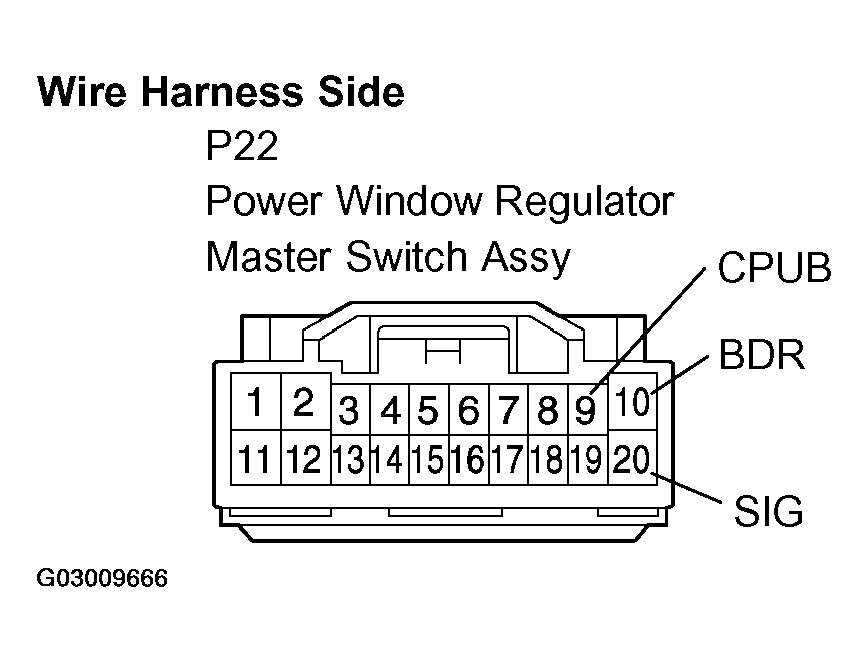

      Fig 2: Checking Wire Harness (For Power Source Of Power Window Regulator Master Switch Assy)
      G03009666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
      2. OK: Go to next step.
  7. CHECK WIRE HARNESS (FOR GROUND SOURCE OF POWER WINDOW REGULATOR MASTER SWITCH ASSY)
    1. Disconnect the P22 master switch connector.
    2. Check the resistance between the wire harness side connector and body ground.

      Standard:

      FOR GROUND SOURCE OF POWER WINDOW REGULATOR MASTER SWITCH ASSY

      Tester Connection Specified Condition
      P22-2 (GND) - Body ground Below 1 Ω

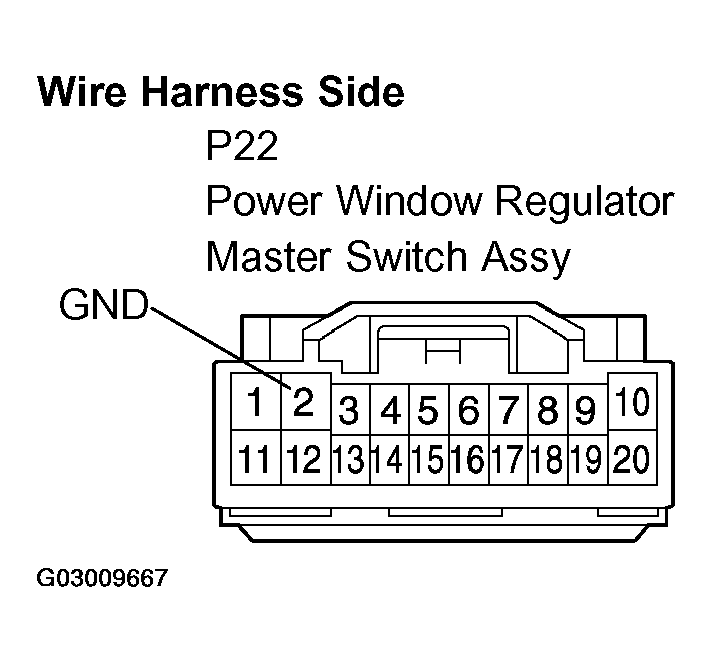

      Fig 3: Checking Wire Harness (For Ground Source Of Power Window Regulator Master Switch Assy)
      G03009667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to next step.
  8. CHECK WIRE HARNESS (POWER WINDOW MASTER SWITCH ASSY - POWER WINDOW REGULATOR MOTOR ASSY AND BODY GROUND)
    1. Disconnect the P22 master switch connector.
    2. Disconnect the P23 power window motor connector.
    3. Check the resistance of the wire harness side connectors.

      Standard:

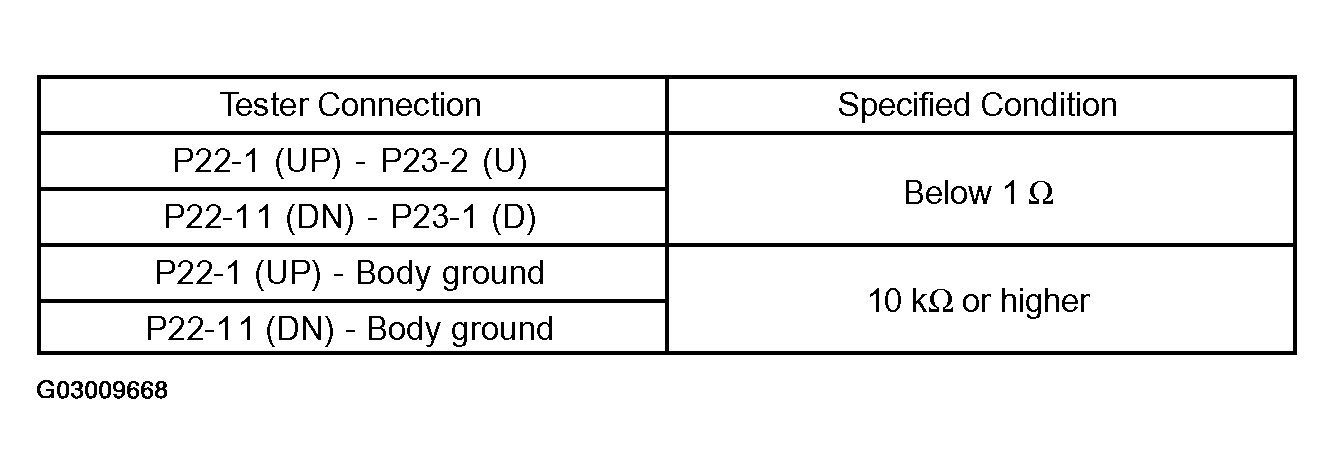

      Fig 4: Power Window Master Switch Assy - Power Window Regulator Motor Assy And Body Ground Table
      G03009668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

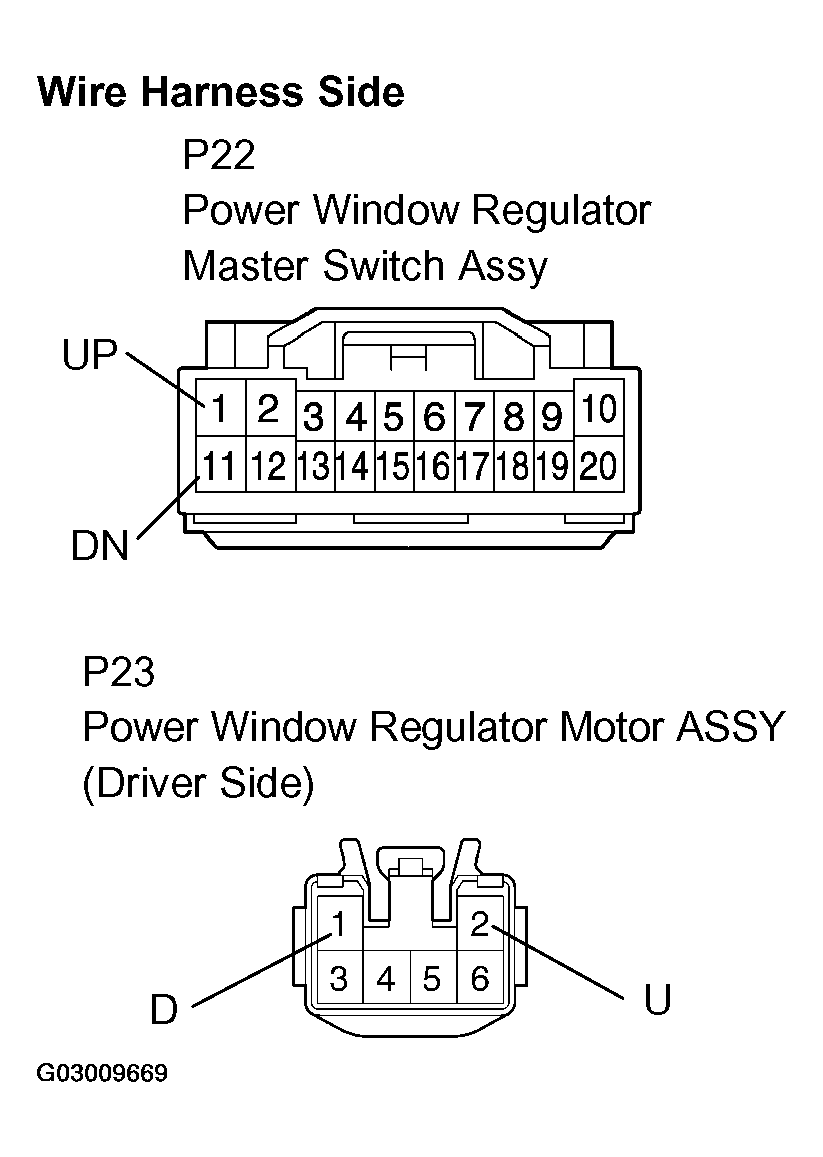

      Fig 5: Checking Wire Harness (Power Window Master Switch Assy - Power Window Regulator Motor Assy And Body Ground)
      G03009669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to next step.
  9. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY
    1. Remove the master switch (the connector is connected).
    2. Turn the ignition switch ON.
    3. Check the voltage between the terminals.

      Standard:

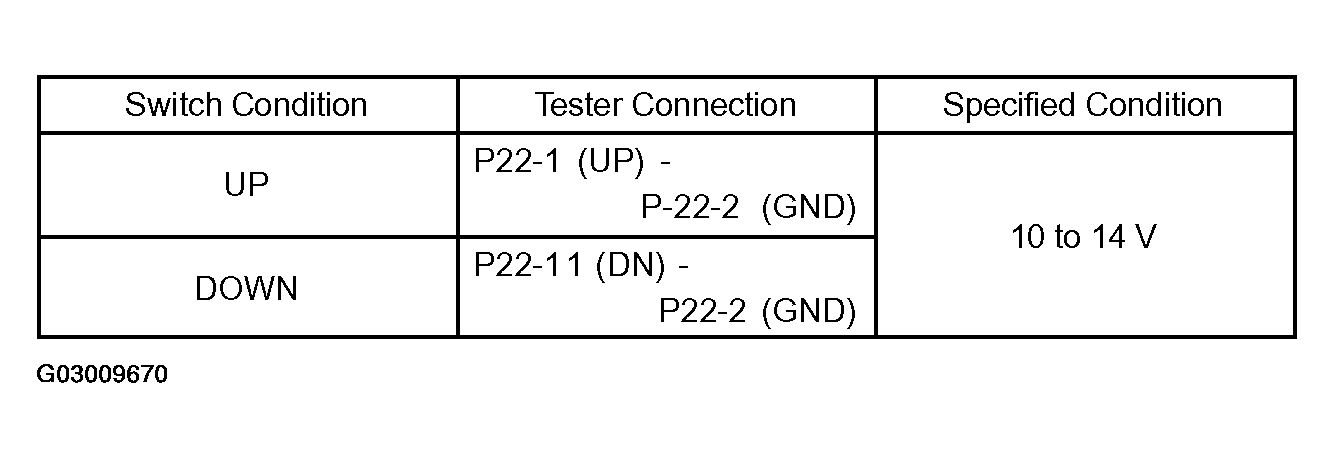

      Fig 6: Power Window Regulator Master Switch Assy Table
      G03009670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

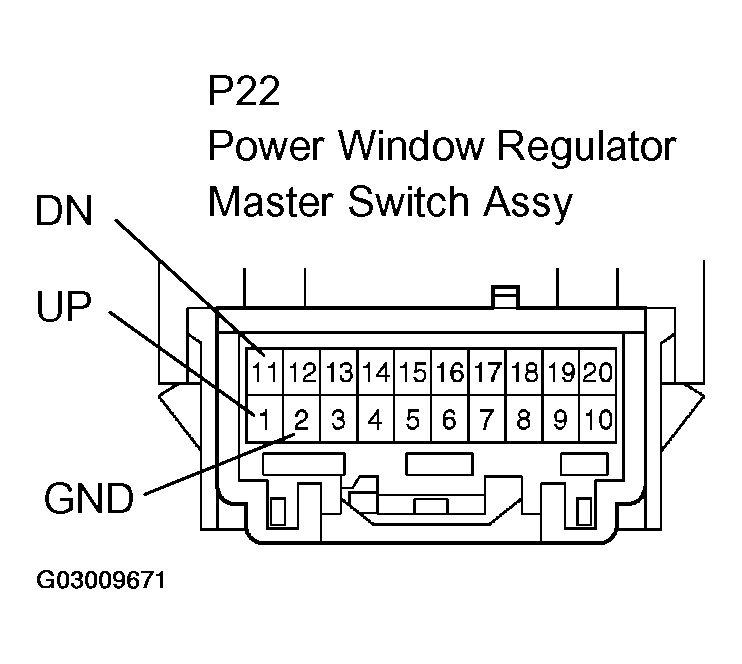

      Fig 7: Checking Power Window Regulator Master Switch Assy
      G03009671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
    2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (DRIVER SIDE)

    Reference:

    Check operation of the power window motor (driver side).

    1. Remove the motor (See OVERHAUL ).
    2. Apply battery voltage to terminals 1 and 2.
    3. Check that the motor rotates smoothly.
    NOTE: Do not apply battery voltage to any terminal except 1 and 2.

    Standard:

    MOTOR ROTATING CONDITIONS

    Measurement Condition Specified Condition
    Battery positive (+) -> 1 Motor gear rotates counterclockwise
    Battery negative (-) -> 2
    Battery positive (+) -> 2 Motor gear rotates clockwise
    Battery negative (-) -> 1

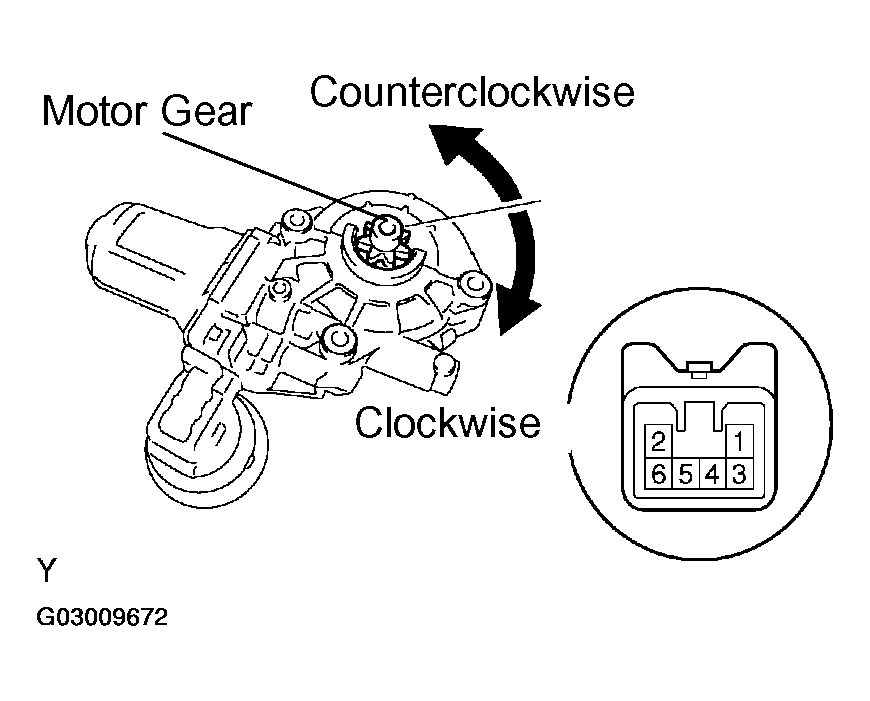

    Fig 8: Checking Operation Of Power Window Motor (Driver Side)
    G03009672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
