Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

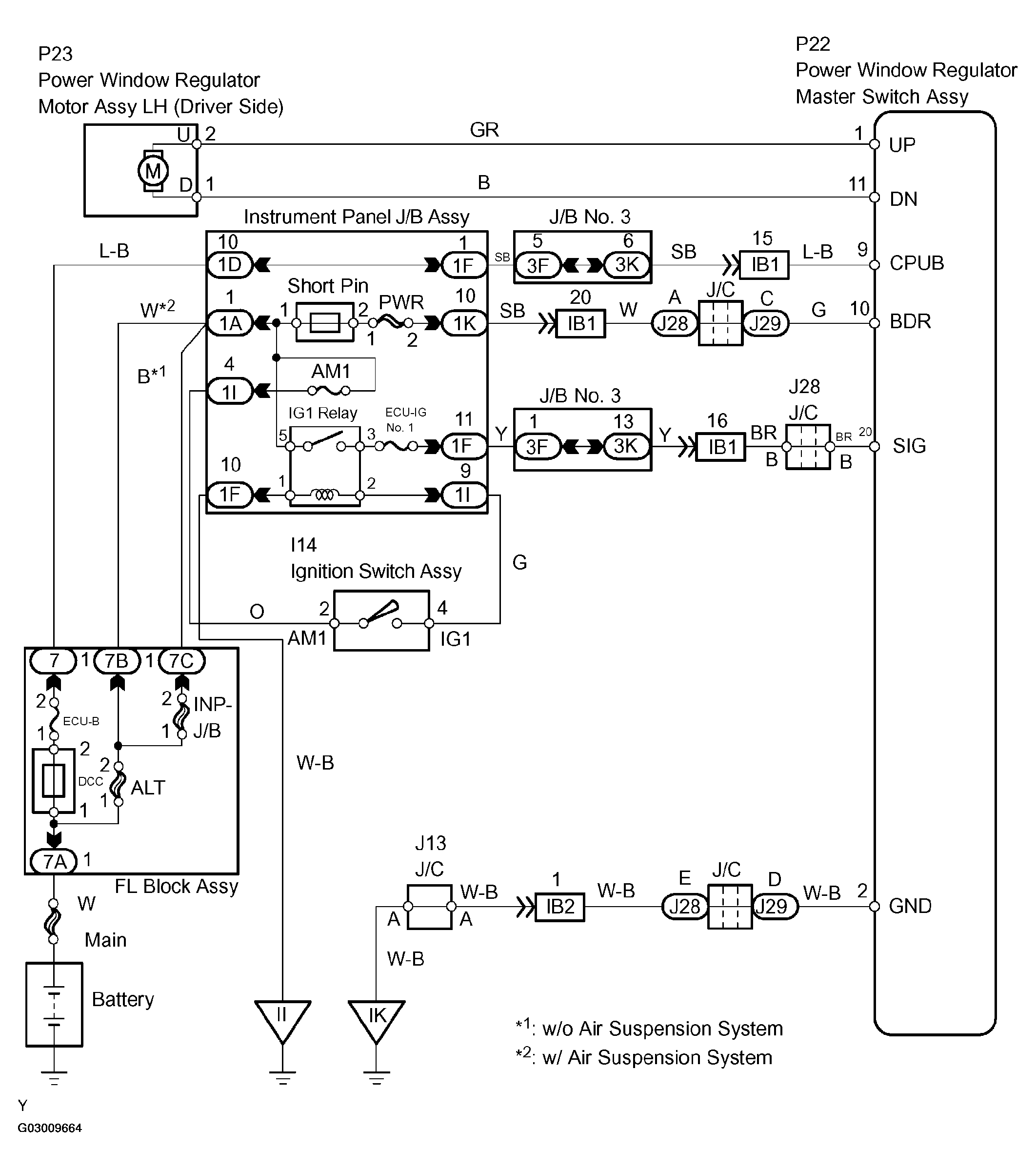

Fig 1: Manual Up/Down Function Does Not Operate On Driver Side Wire Diagram
G03009664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
