Outer Rear View Mirror Sub-ASSY LH: Replacement

HINT:

• The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.
• Use the same procedures on the RH side as on the LH side.

1. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (See  OVERHAUL  )
   1. Remove the power window regulator master switch.
   2. Remove the front door lower frame bracket garnish.
   3. Remove the front door inside handle bezel plug.
   4. Remove the front door trim board.
2. REMOVE OUTER REAR VIEW MIRROR SUB-ASSY LH
   1. Disconnect the connector.
   2. Remove the 3 bolts and mirror.

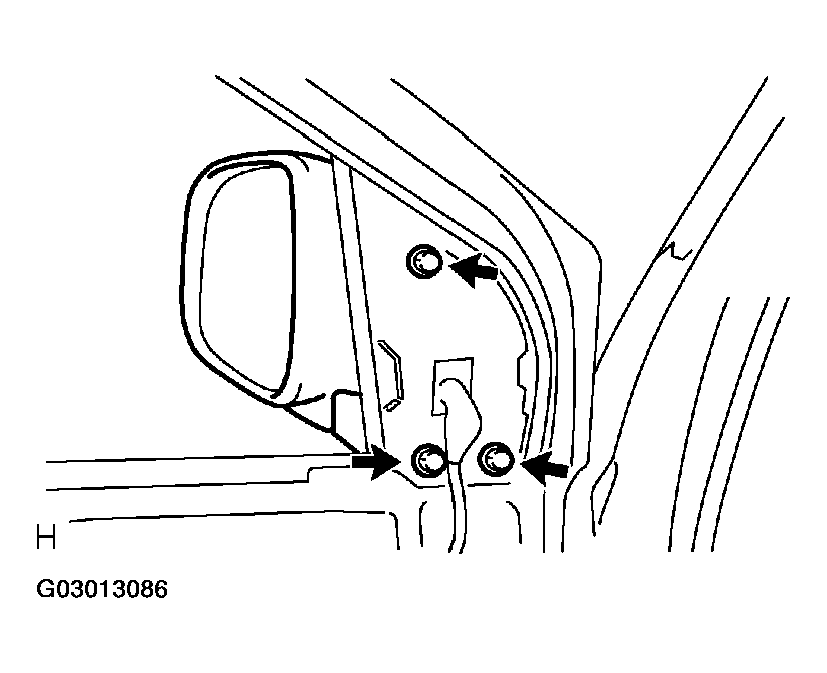

   Fig 1: Removing Outer Rear View Mirror Sub-Assy LH
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OUTER REAR VIEW MIRROR SUB-ASSY LH
   1. Install the mirror with the 3 bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

   2. Connect the connector.
   Fig 2: Installing Outer Rear View Mirror Sub-Assy LH
