Rear Window Defogger Does Not Operate (Indicator On): Wiring Diagram

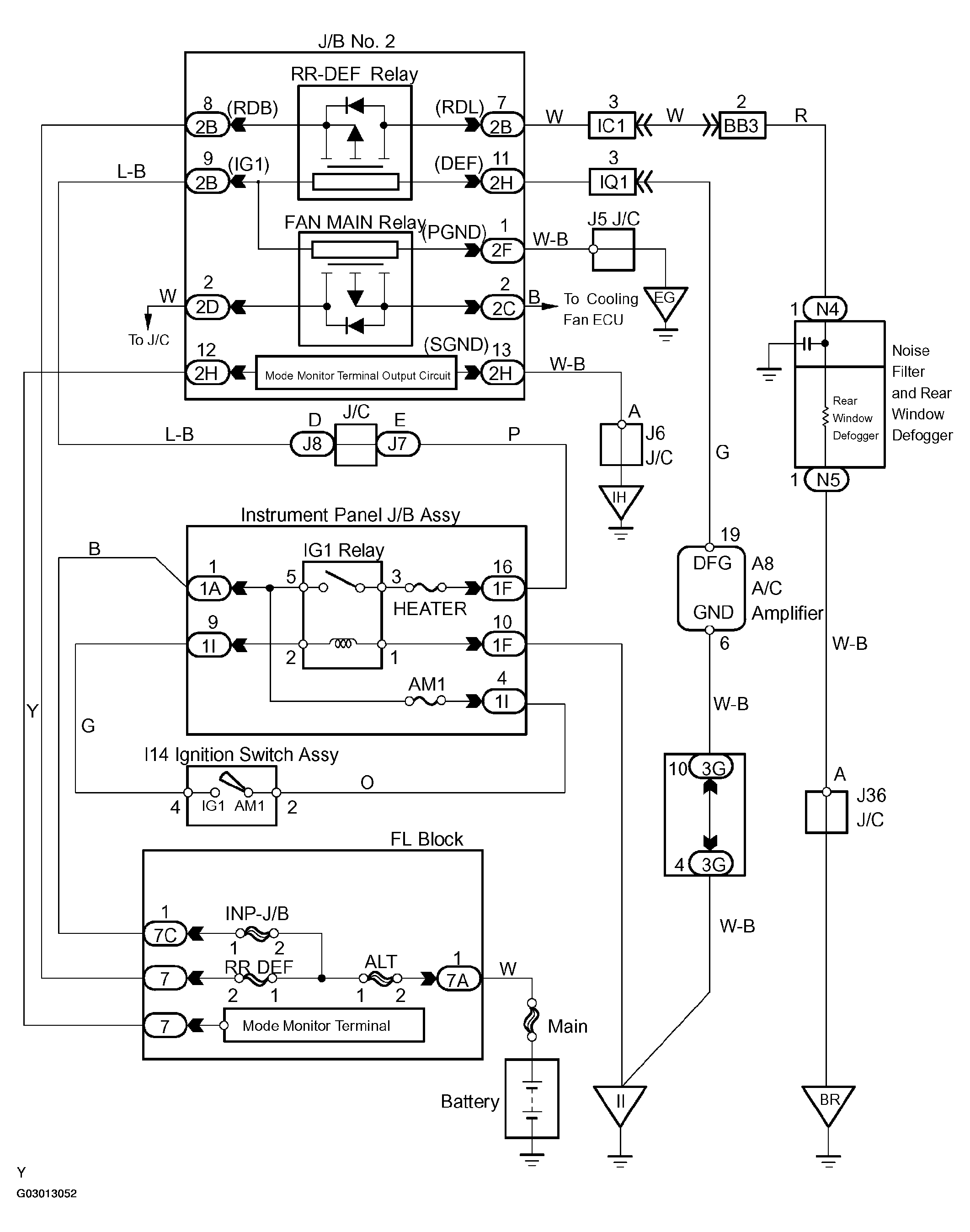

Fig 1: Wiring Diagram
G03013052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
