Fuel Tank ASSY (3MZ-FE): Components

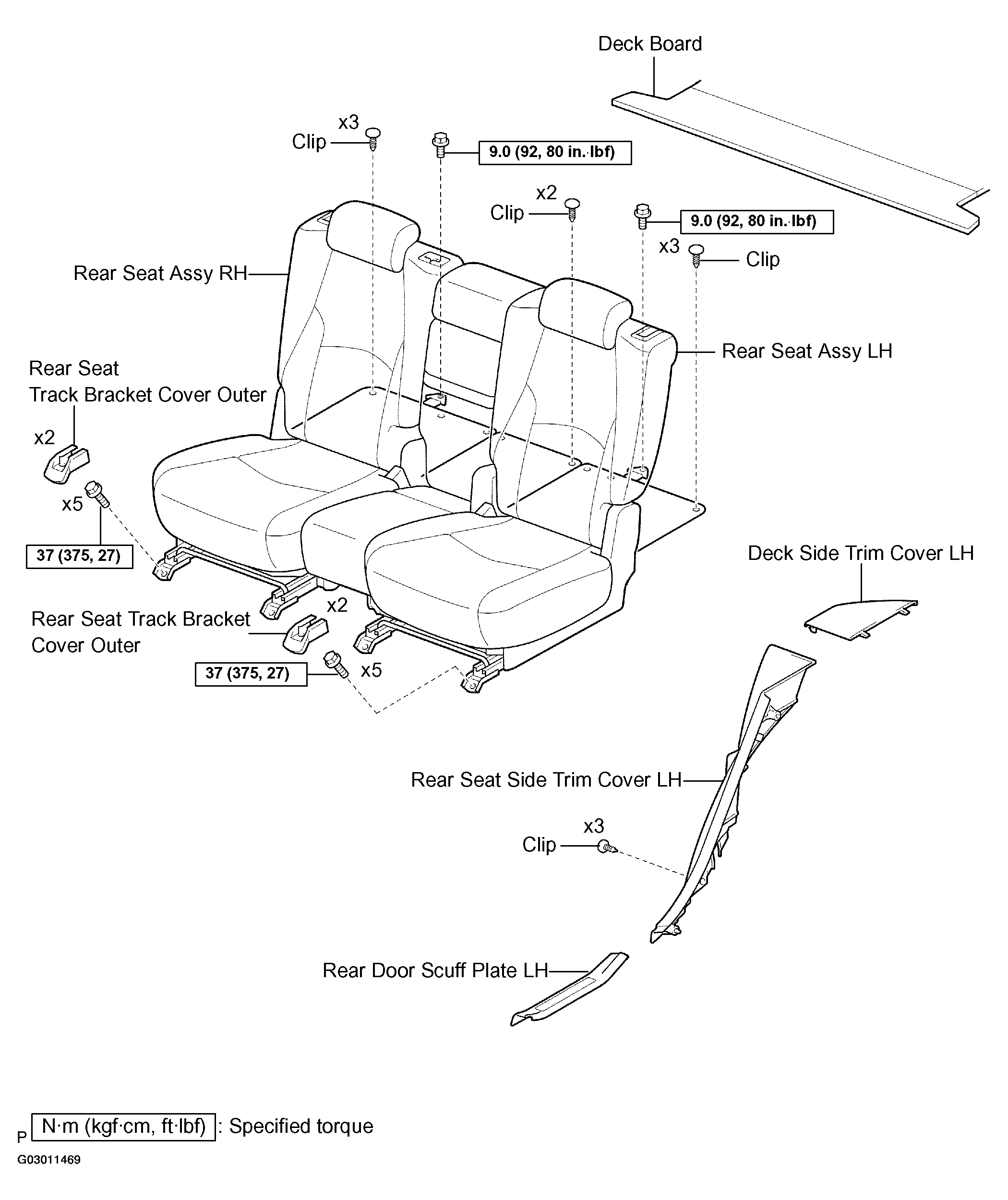

Fig 1: Exploded View Of Components (1 Of 5)

G03011469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

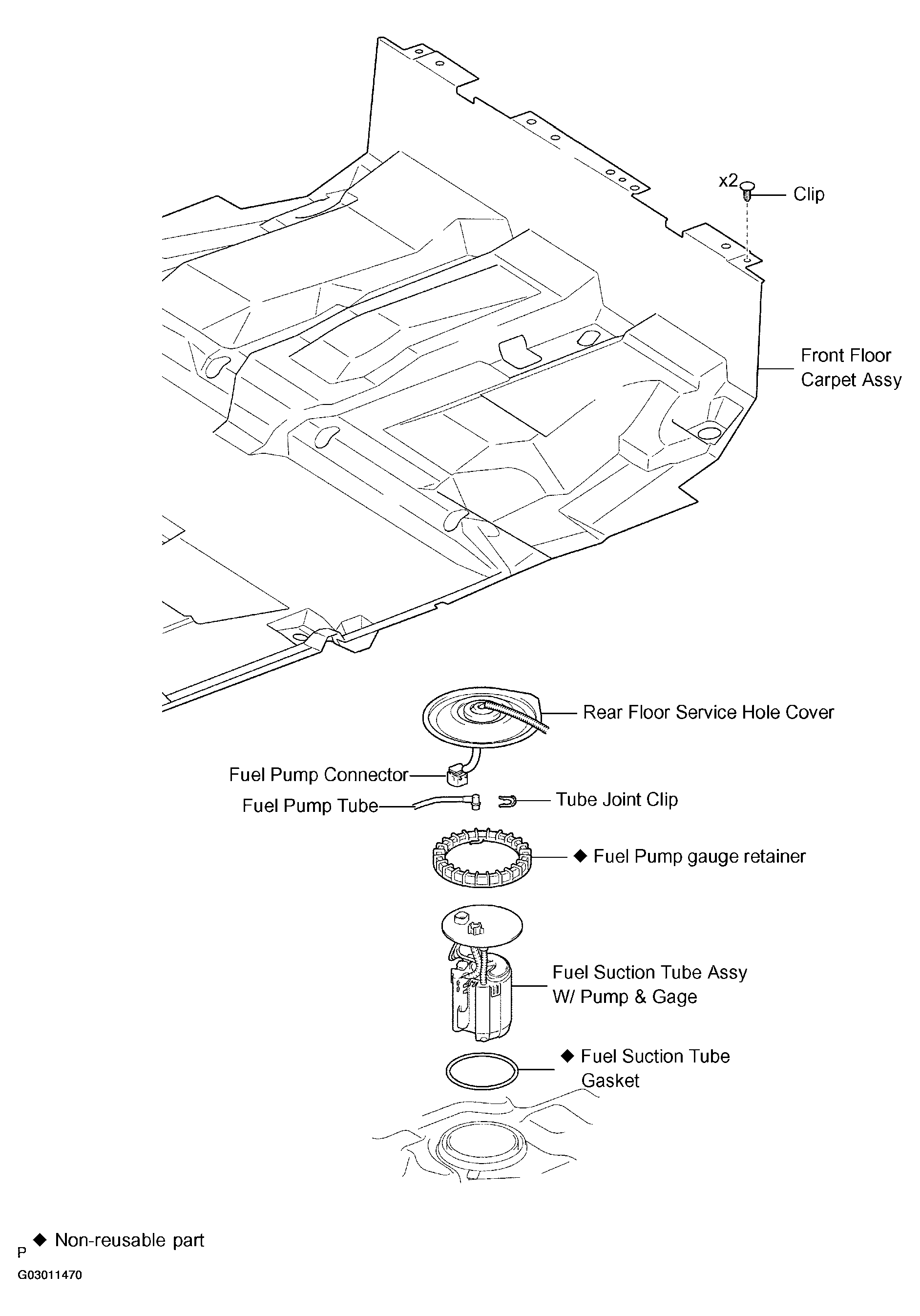

Fig 2: Exploded View Of Components (2 Of 5)

G03011470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

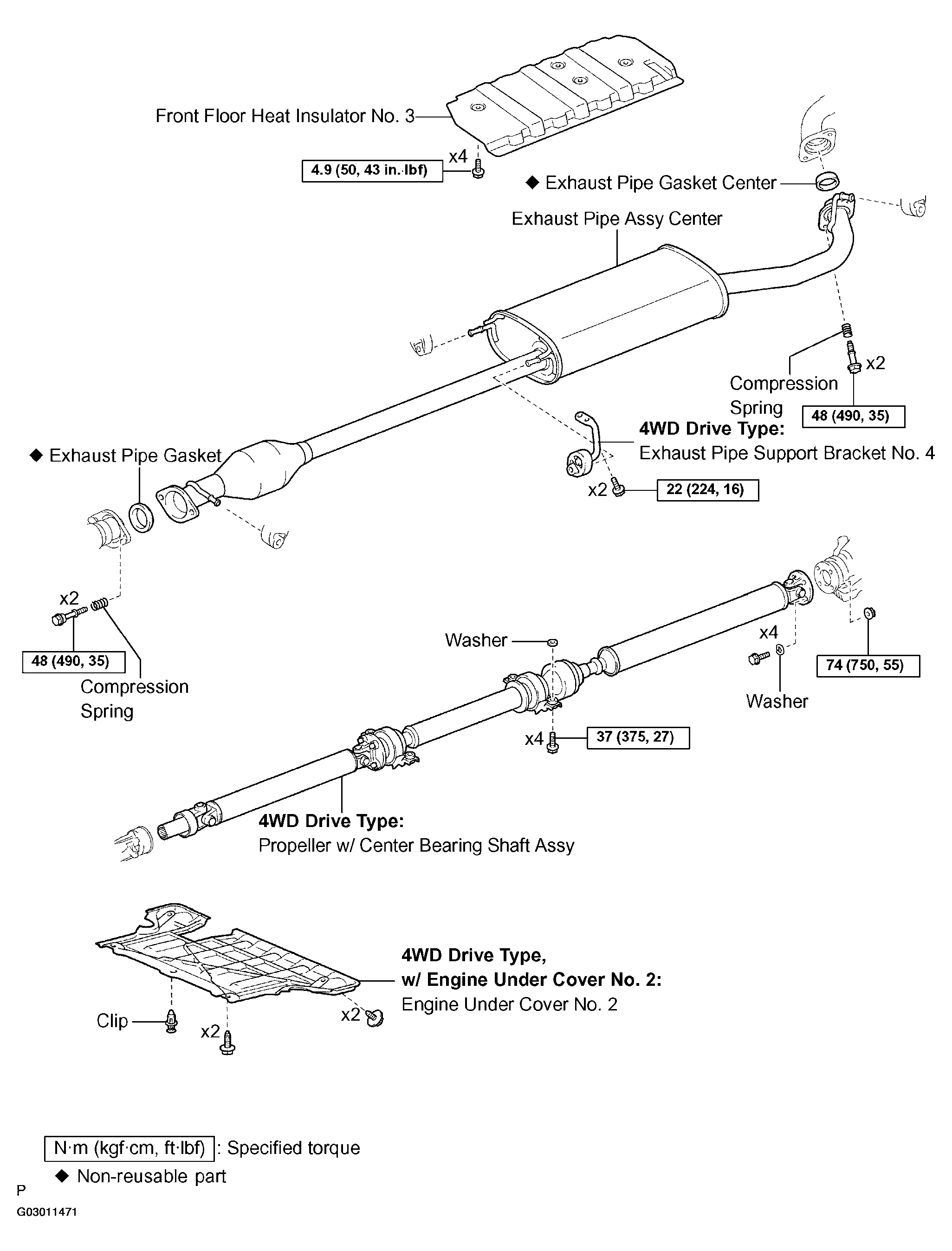

Fig 3: Exploded View Of Components (3 Of 5)

G03011471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

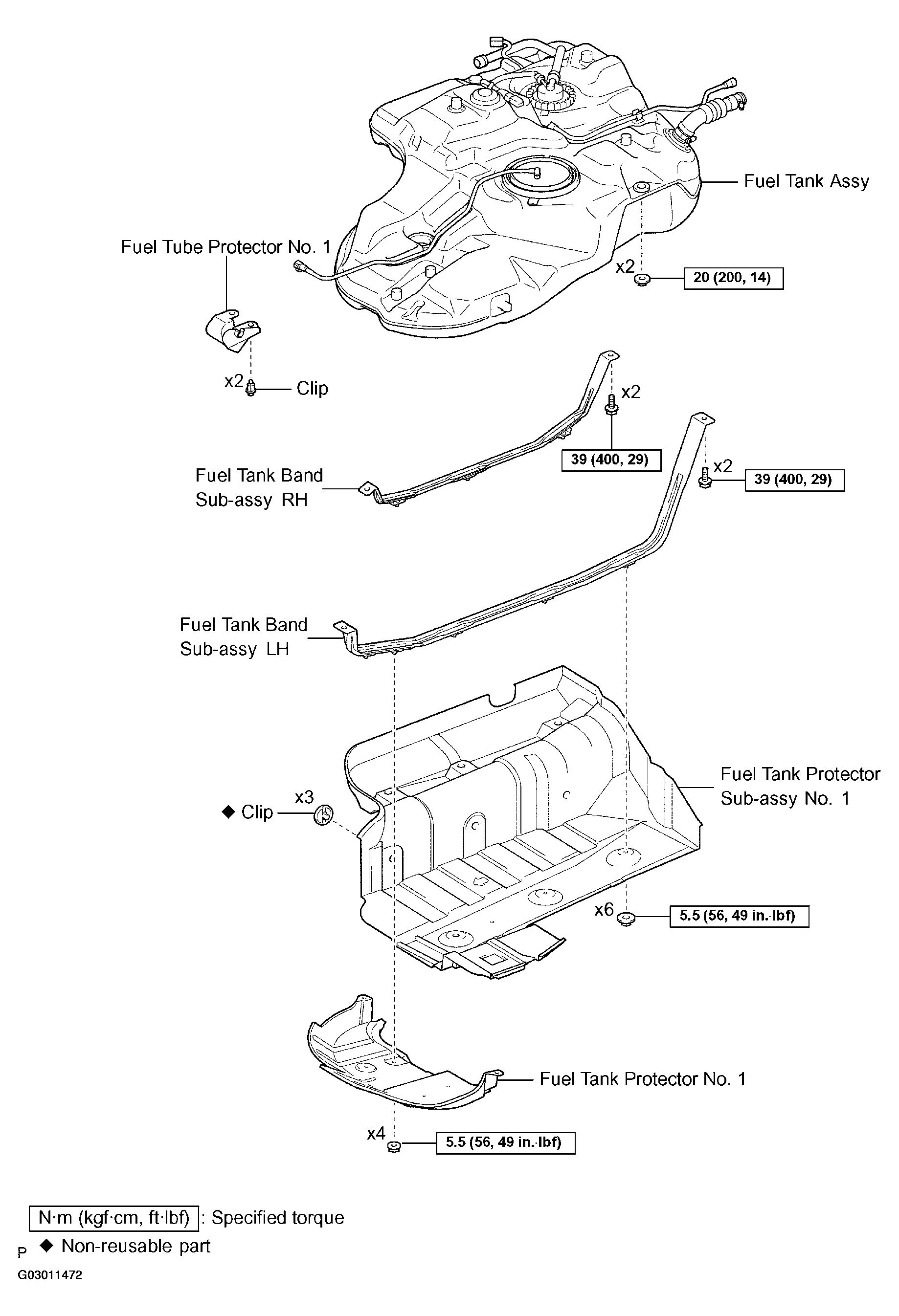

Fig 4: Exploded View Of Components (4 Of 5)

G03011472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

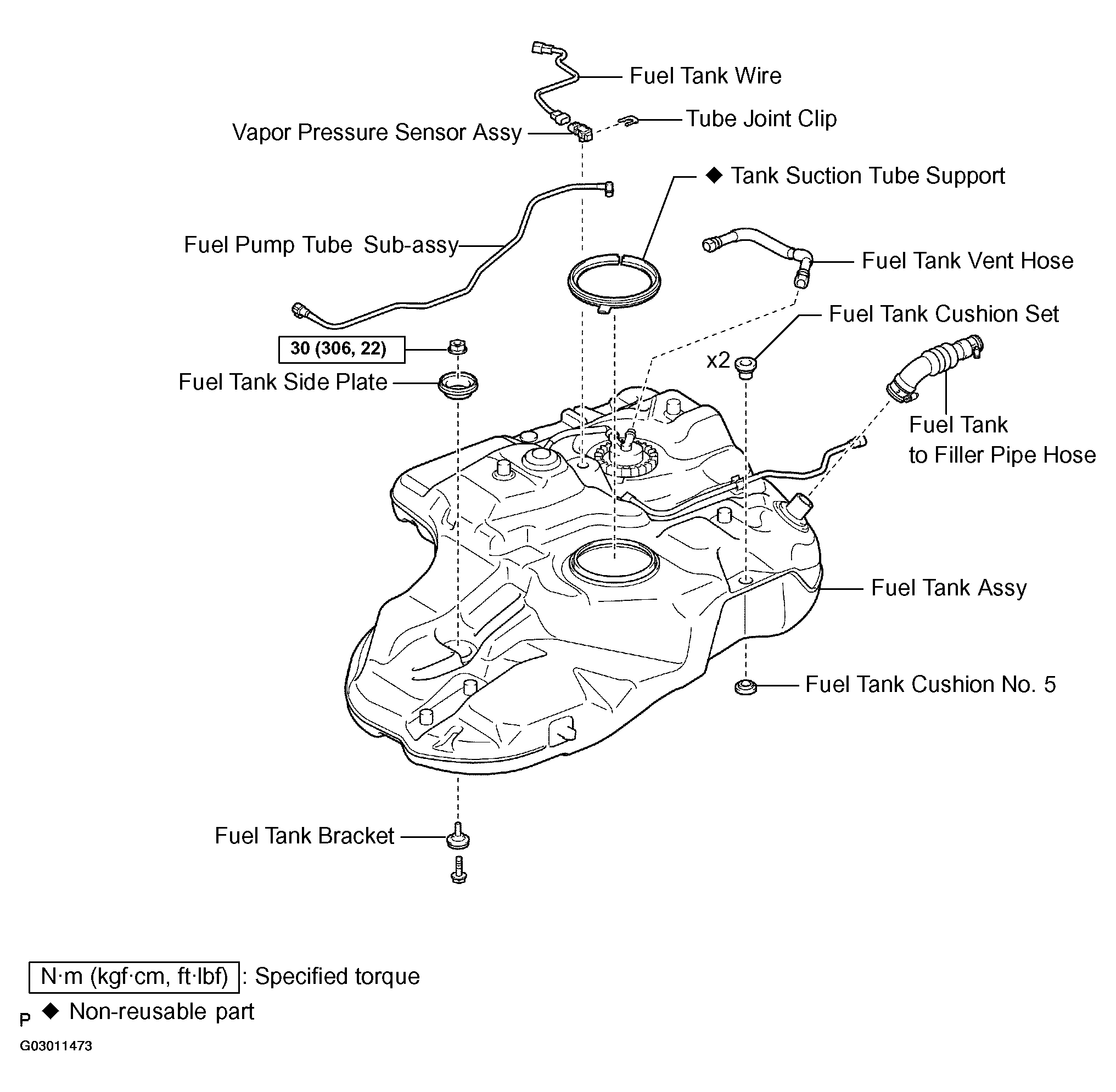

Fig 5: Exploded View Of Components (5 Of 5)

G03011473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
