Crankshaft Position Sensor (3MZ-FE): Replacement

REMOVE ENGINE UNDER COVER ASSY (W/ENGINE UNDER COVER ASSY)
(See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
REMOVE ENGINE UNDER COVER NO.1 (See step 2 in REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
REMOVE FRONT FENDER APRON SEAL RH

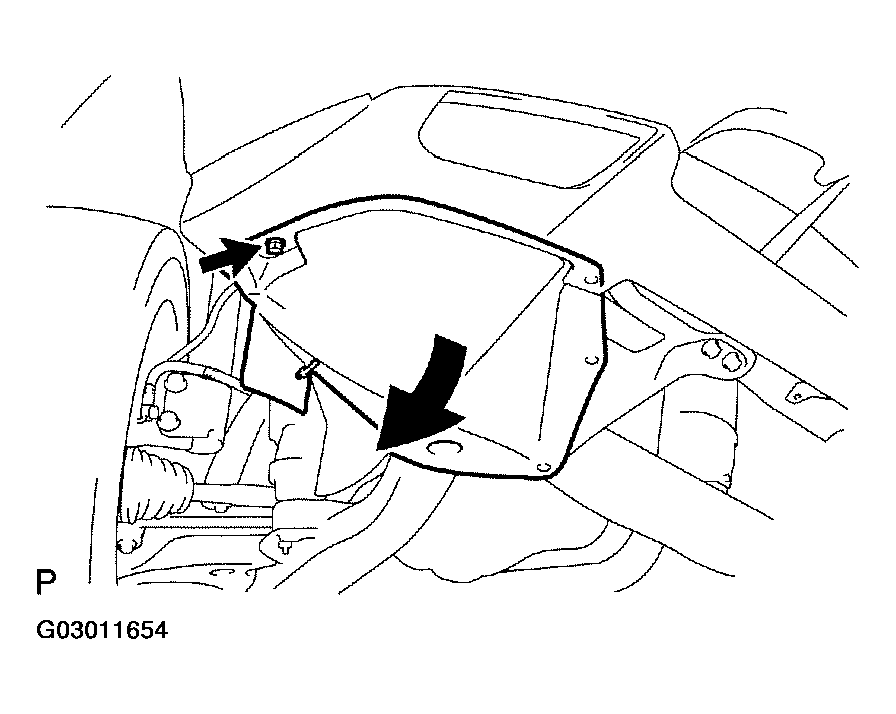

1. Remove the screw, and then open the front fender liner.

  Fig 1: Opening Front Fender Liner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

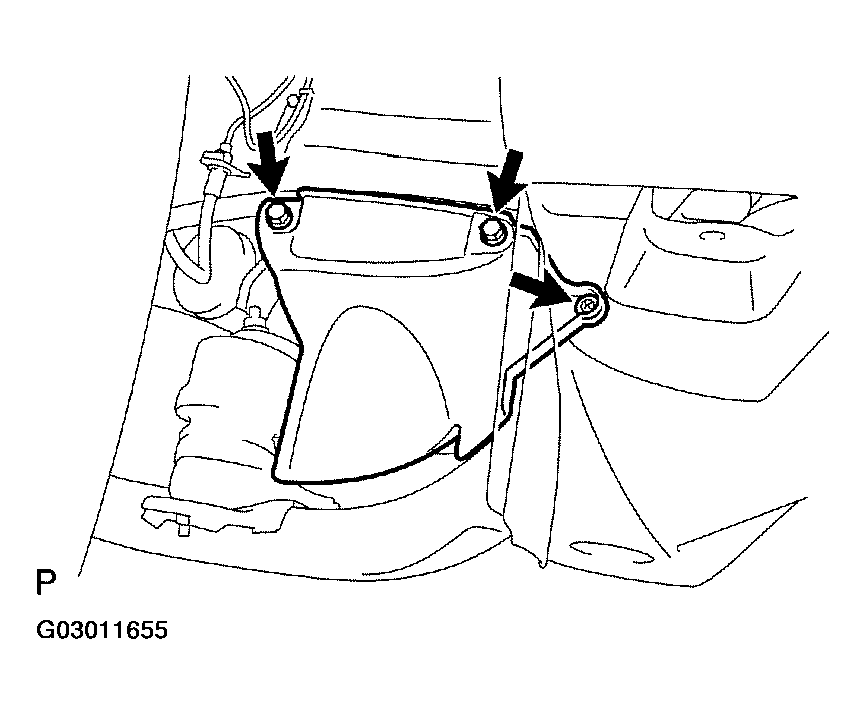

2. Remove the clip and 2 bolts, and then remove the front fender apron seal.

  Fig 2: Removing Front Fender Apron Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR

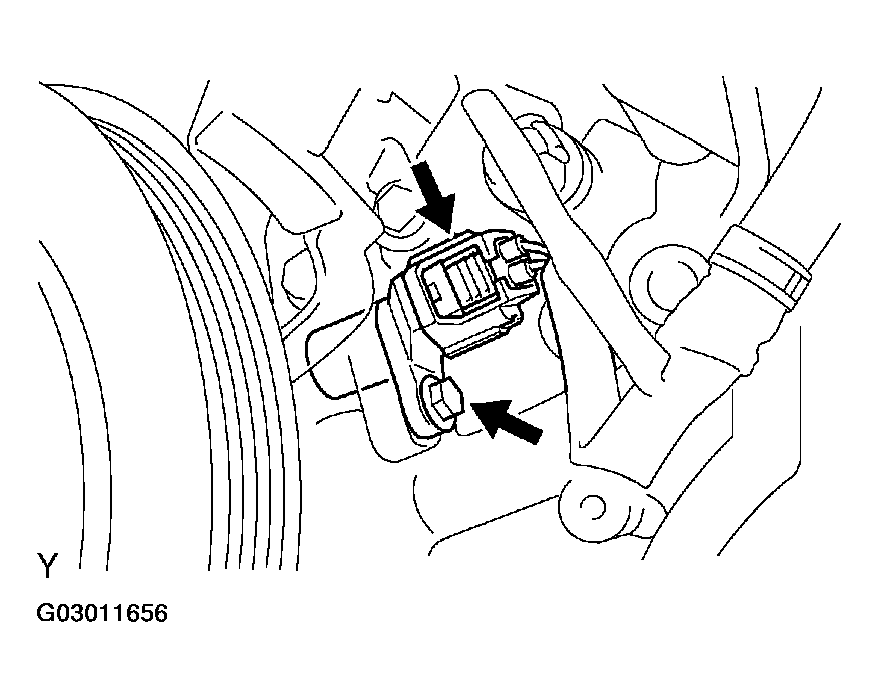

1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt, and then remove the crankshaft position sensor.

  Fig 3: Removing Bolt And Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)
INSTALL FRONT FENDER APRON SEAL RH
INSTALL ENGINE UNDER COVER NO. 1
INSTALL ENGINE UNDER COVER ASSY (W/ENGINE UNDER COVER ASSY)
