Active Control Engine Mount: Wiring Diagram

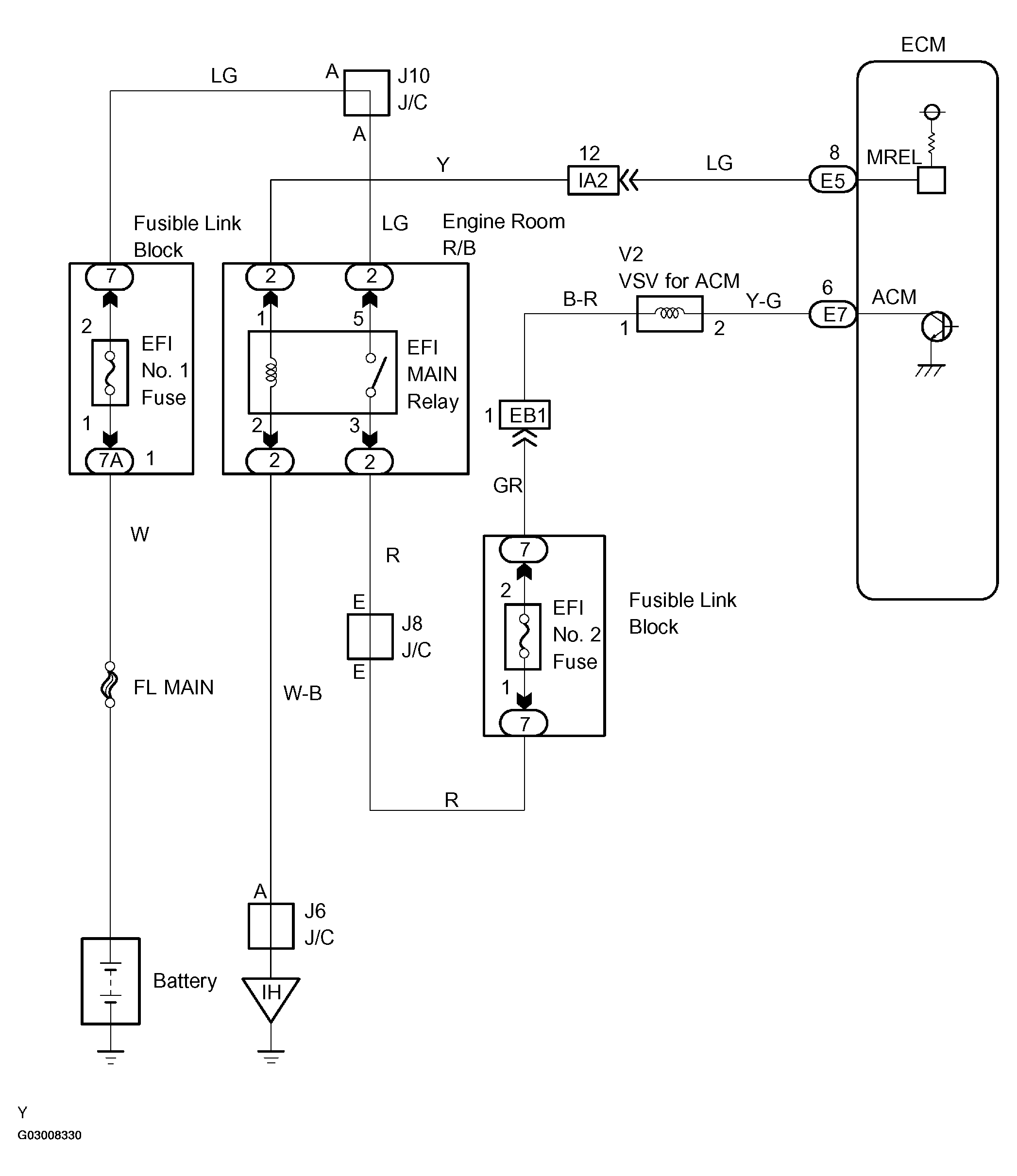

Fig 1: Active Control Engine Mount Wiring Diagram
G03008330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
