Radio Receiver: Removal

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
REMOVE CONSOLE PANEL UPPER FRONT (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REMOVAL )
REMOVE RADIO RECEIVER
1. Remove the 4 bolts.

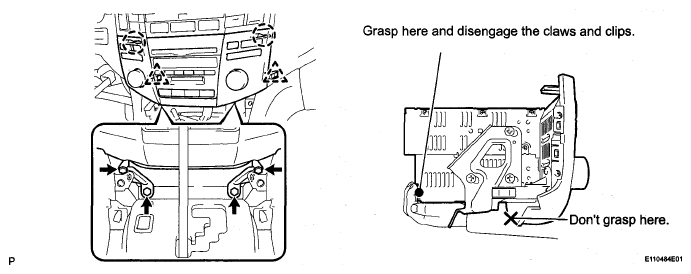

  Fig 1: Identifying Radio Receiver Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and the 2 clips.
3. Disconnect the connectors.
4. Remove the radio receiver with bracket.
5. Remove the 3 screws and the No.1 radio bracket.

  Fig 2: Identifying No.1 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 3 screws and the No.2 radio bracket.

  Fig 3: Identifying No. 2 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
