Suspension Control Ecu: Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  2. REMOVE COWL SIDE TRIM SUB-ASSY RH (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2 (See step 27 in  REPLACEMENT  )
  4. REMOVE GLOVE COMPARTMENT DOOR ASSY (See step 28 in  REPLACEMENT  )
  5. REMOVE ECM (See  REPLACEMENT  )
  6. REMOVE AIR CONDITIONER AMPLIFIER ASSY (See  REPLACEMENT  )
  7. REMOVE SUSPENSION CONTROL ECU
    1. Disconnect the suspension control ECU connector.
    2. Remove the 2 bolts and the suspension control ECU from the bracket.

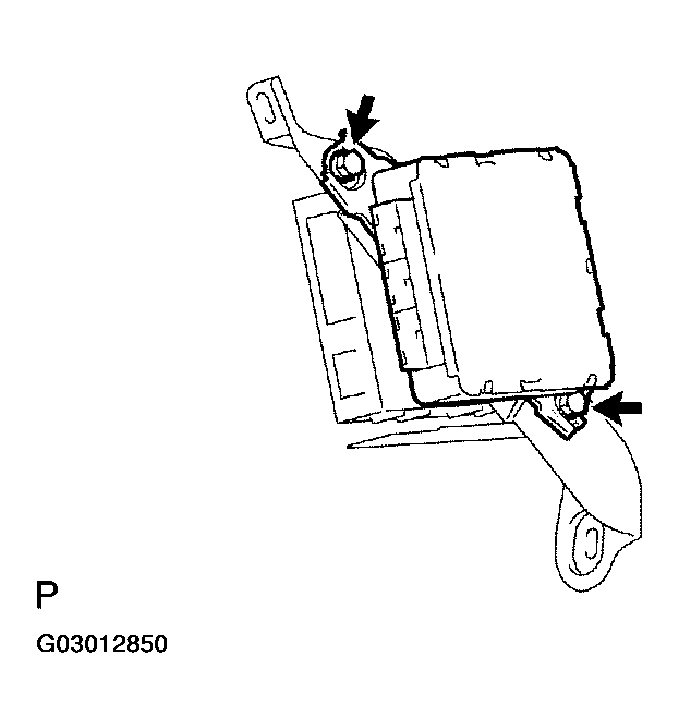

      Fig 1: Removing Suspension Control ECU
      G03012850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SUSPENSION CONTROL ECU
    1. Install the suspension control ECU with the 2 bolts onto the bracket.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

    2. Connect the suspension control ECU connector.

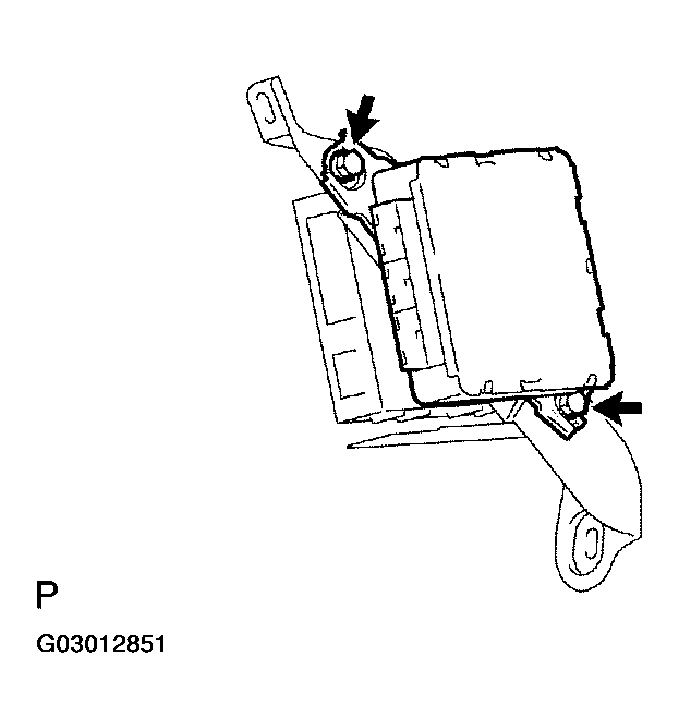

      Fig 2: Installing Suspension Control ECU
      G03012851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL AIR CONDITIONER AMPLIFIER ASSY (See  REPLACEMENT  )
  10. INSTALL ECM (See  REPLACEMENT  )
  11. INSTALL GLOVE COMPARTMENT DOOR ASSY
  12. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2
  13. INSTALL COWL SIDE TRIM SUB-ASSY RH
  14. INSTALL FRONT DOOR SCUFF PLATE RH
