Problem Symptoms Table

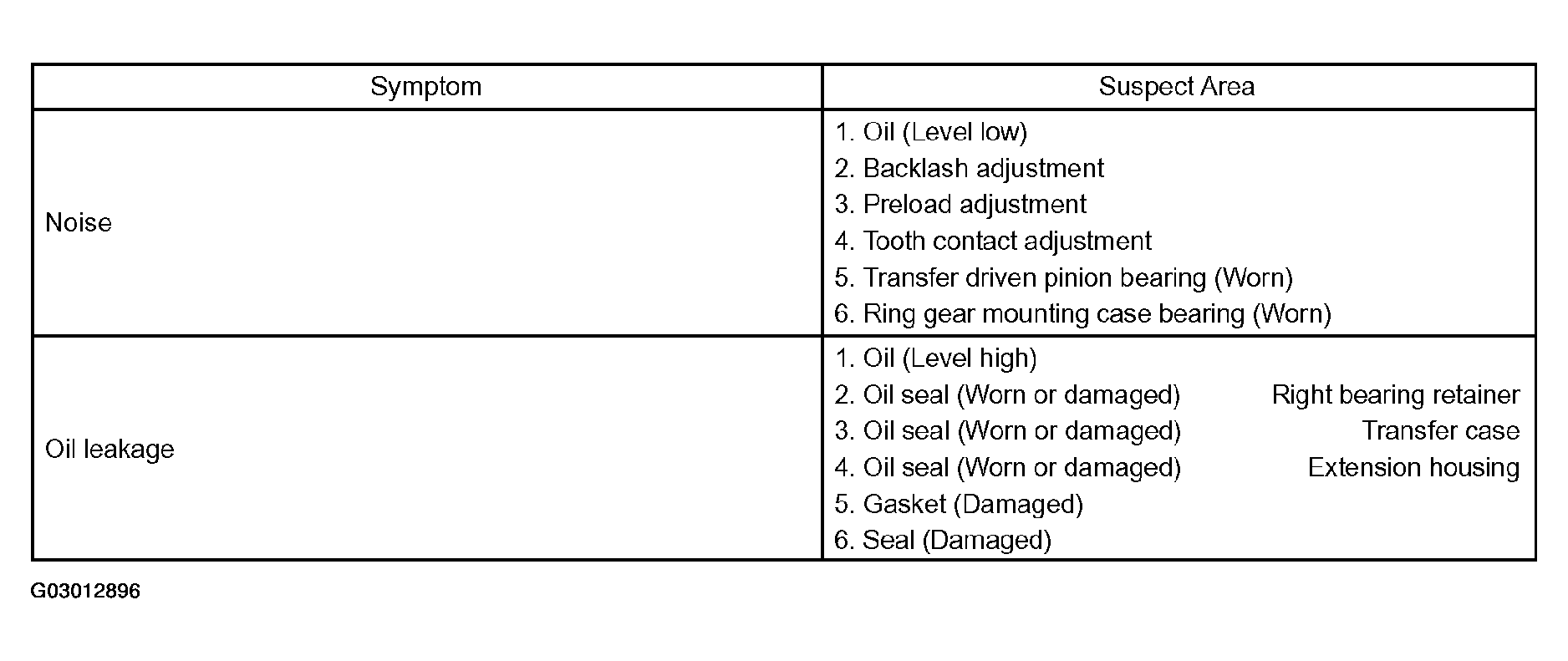

Fig 1: Problem Symptoms Chart

G03012896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
