Inspection Procedure

1. Check that the power window AUTO UP/DOWN function operates normally.

1. NG: Go to step 2.
2. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)

1. Remove the PWR M-fuse from the instrument panel J/B.
2. Check the resistance.

   Standard: Below 1 Ω

1. NG: REPLACE FUSE
2. OK: Go to next step.

1. Disconnect the P19 regulator switch connector.
2. Check the voltage between the wire harness side connector and the body ground.

   Standard:

   FOR POWER SOURCE OF PASSENGER SIDE POWER WINDOW REGULATOR SWITCH ASSY



   Tester Connection	Specified Condition
   P19-12 (BDR) - Body ground	10 to 14 V

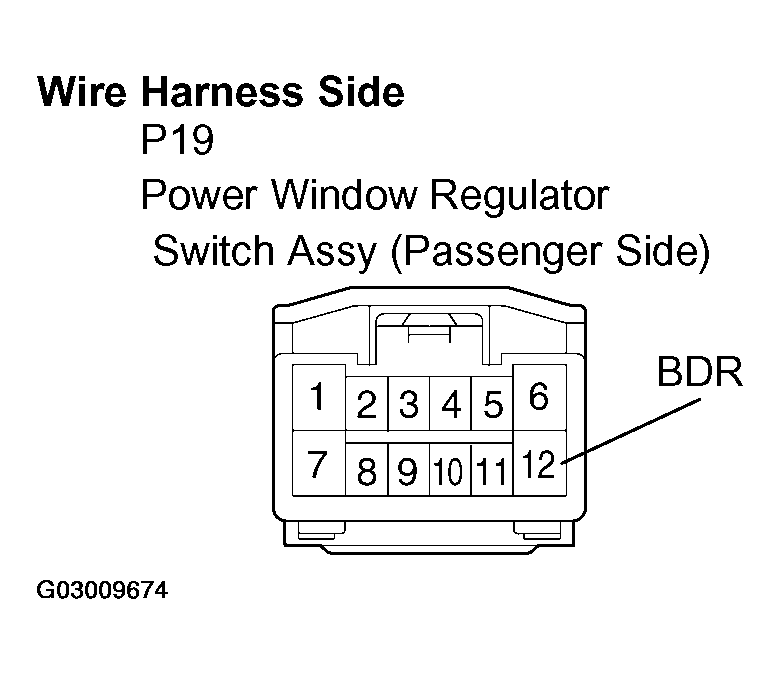

   Fig 1: Checking Wire Harness (For Power Source Of Passenger Side Power Window Regulator Switch Assy)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Disconnect the P19 regulator switch connector.
2. Check the resistance between the wire harness side connector and body ground.

   Standard:

   FOR GROUND OF PASSENGER SIDE POWER WINDOW REGULATOR SWITCH ASSY



   Tester Connection	Specified Condition
   P19-7 (GND) - Body ground	Below 1 Ω

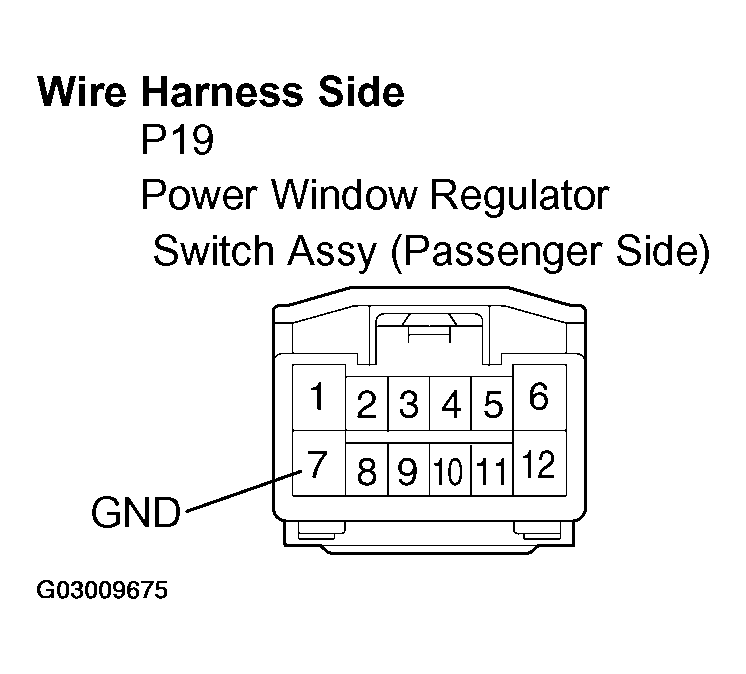

   Fig 2: Checking Wire Harness (For Ground Of Passenger Side Power Window Regulator Switch Assy)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Remove the regulator switch (the connector is connected).
2. Turn the ignition switch ON.
3. Check the voltage between the terminals.

   Standard:

   FOR WINDOW LOCK SWITCH OF PASSENGER SIDE POWER WINDOW REGULATOR SWITCH ASSY



   Window Lock Switch Condition	Tester Connection	Specified Condition
   ON (Normal)	P19-11 (PCT) - P19-7 (GND)	10 to 14 V
   OFF (Lock)	P19-11 (PCT) - P19-7 (GND)	Below 1 V

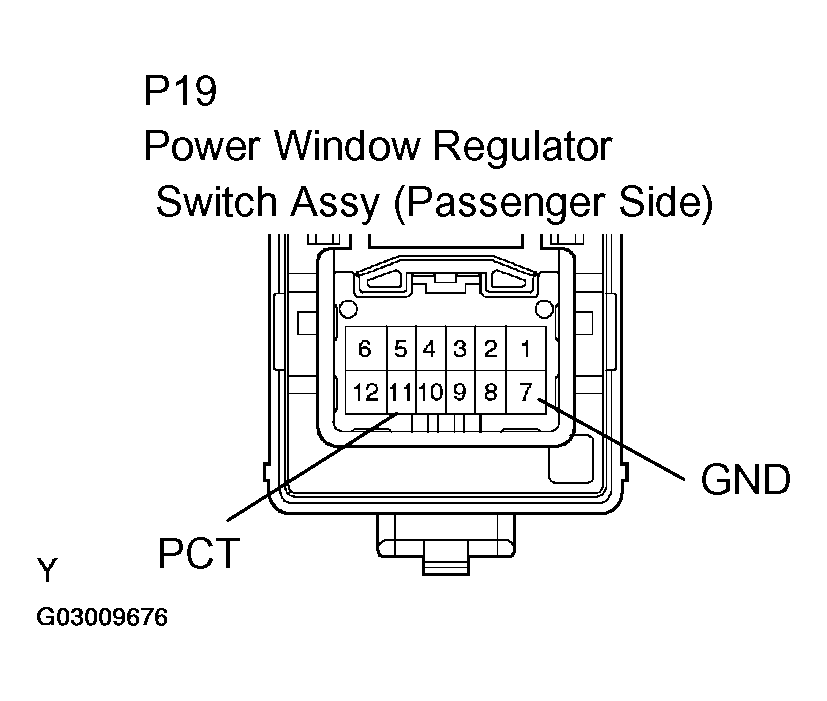

   Fig 3: Checking Wire Harness (For Window Lock Switch Of Passenger Side Power Window Regulator Switch Assy)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Disconnect the P19 regulator switch connector.
2. Disconnect the P24 power window motor connector.
3. Check the resistance of the wire harness side connectors.

   Standard:

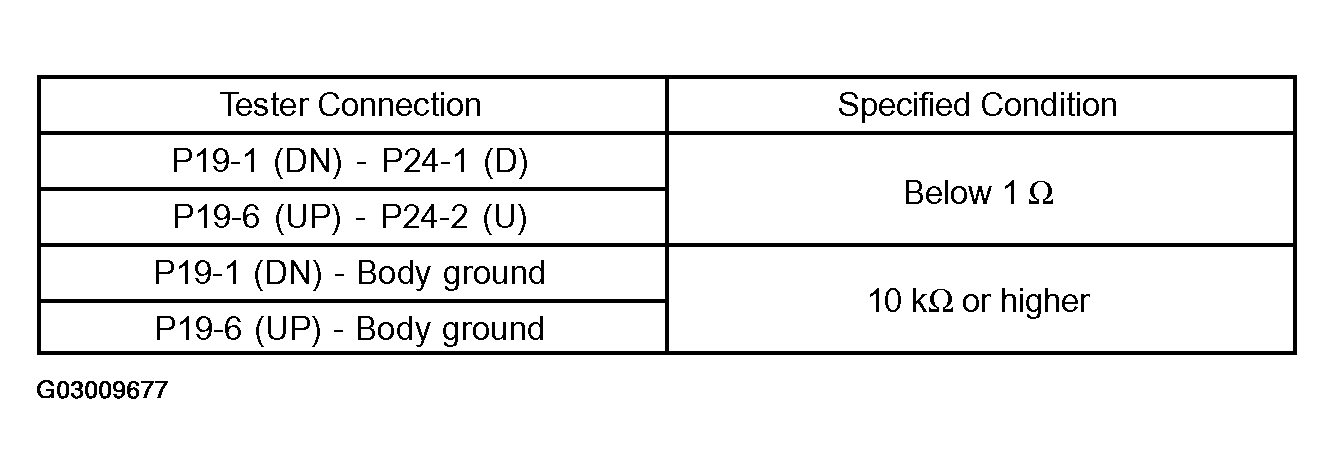

   Fig 4: Power Window Regulator Switch Assy - Power Window Regulator Motor Assy And Body Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

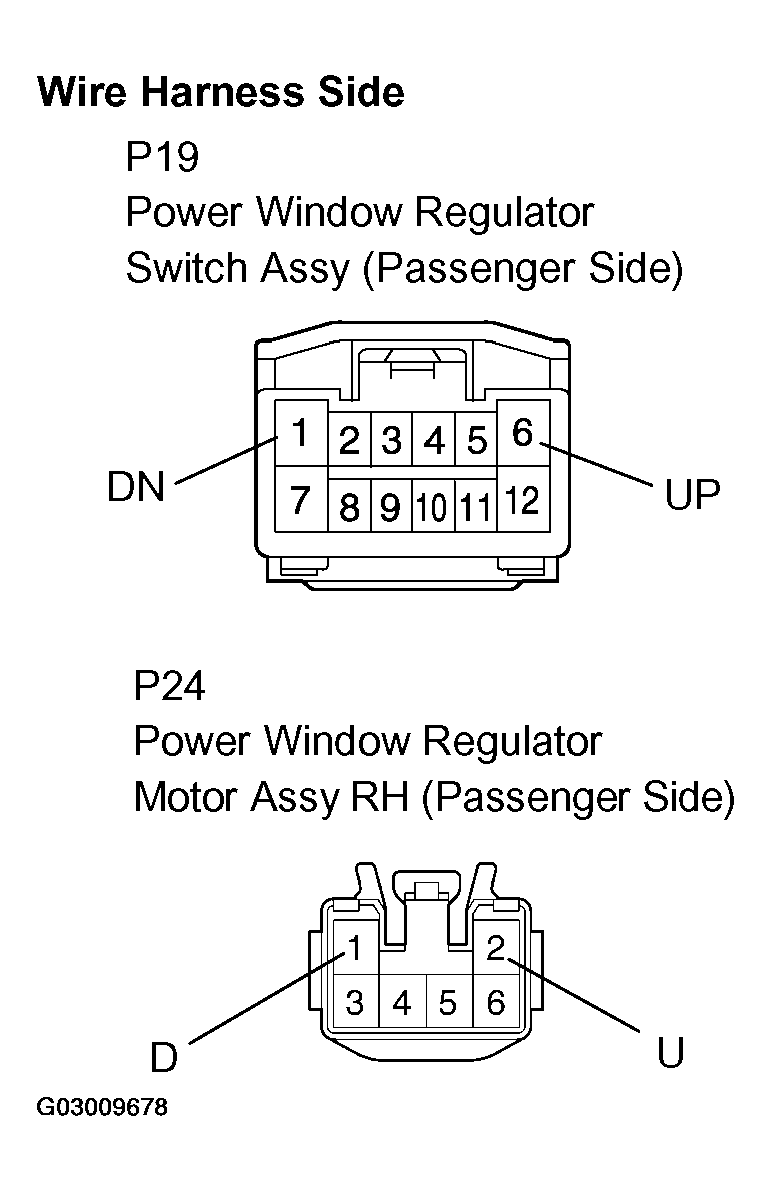

   Fig 5: Checking Wire Harness (Power Window Regulator Switch Assy - Power Window Regulator Motor Assy And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Remove the regulator switch (the connector is connected).
2. Turn the ignition switch ON.
3. Check the voltage between the terminals.

   Standard:

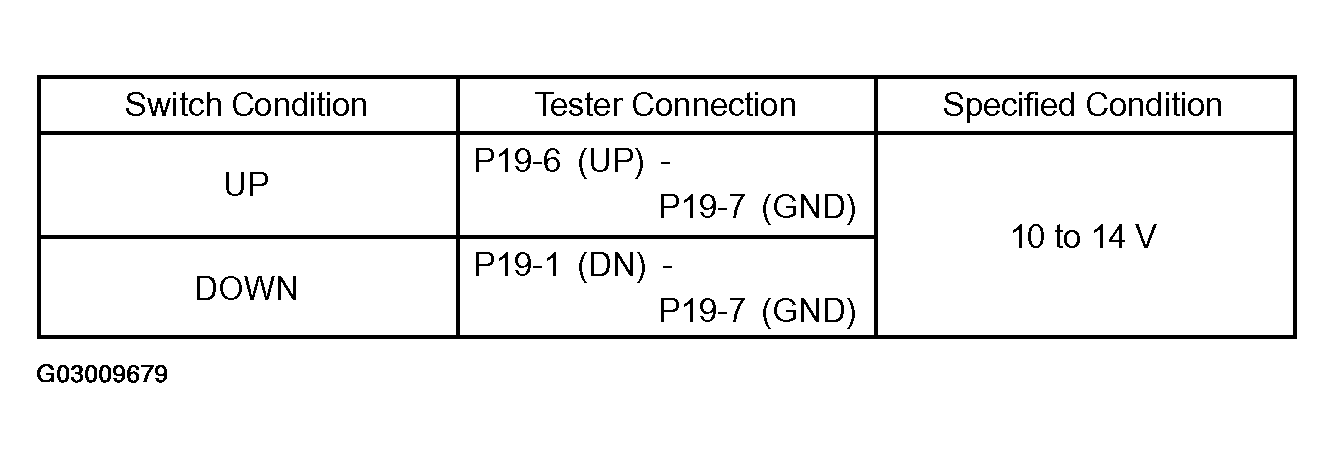

   Fig 6: Power Window Regulator Switch Assy (Passenger Side) Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

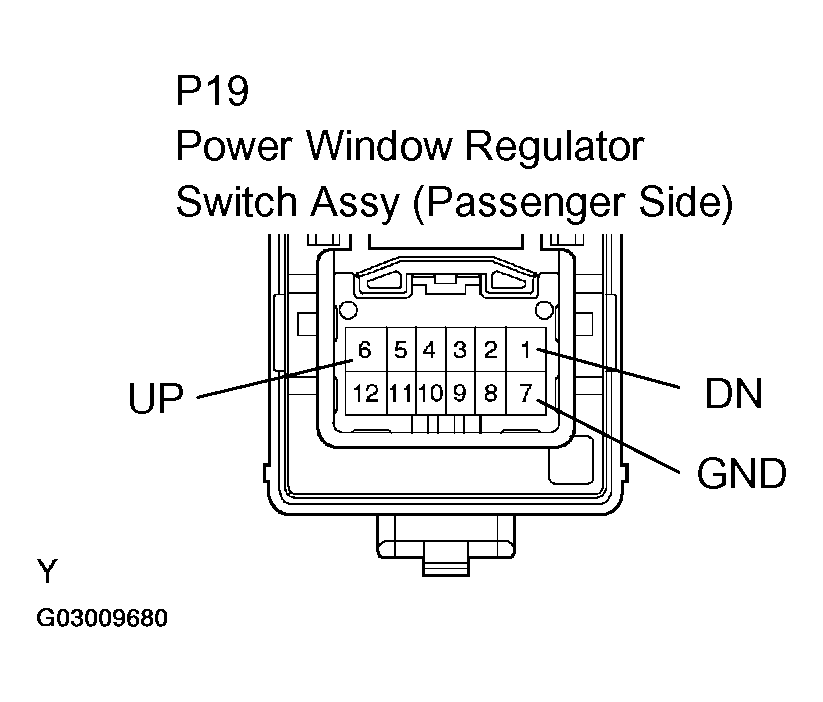

   Fig 7: Checking Power Window Regulator Switch Assy (Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY
2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)

Reference:

Check operation of the power window motor (passenger side).

1. Remove the motor (See OVERHAUL ).
2. Apply battery voltage to terminals 1 and 2.
3. Check that the motor rotates smoothly.
   NOTE: Do not apply battery voltage to any terminal except 1 and 2.

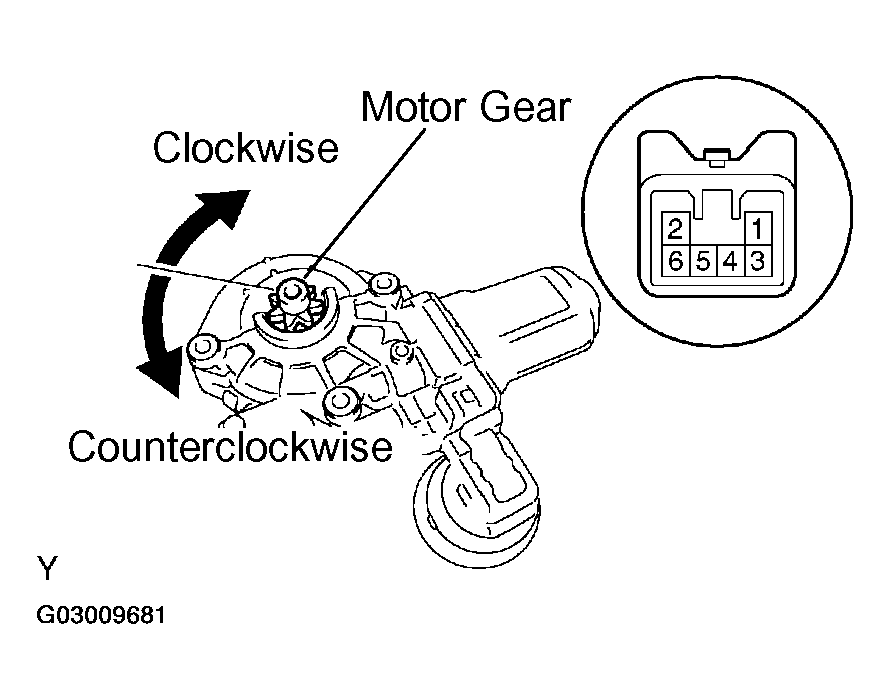

   Fig 8: Checking Motor Rotates Smoothly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   POWER WINDOW MOTOR (PASSENGER SIDE) ROTATING CONDITIONS



   Measurement Condition	Specified Condition
   Battery positive (+) -> 1	Motor gear rotates clockwise
   Battery negative (-) -> 2
   Battery positive (+) -> 2	Motor gear rotates counterclockwise
   Battery negative (-) - 1
