Remote Up/Down Function Does Not Operate: Wiring Diagram

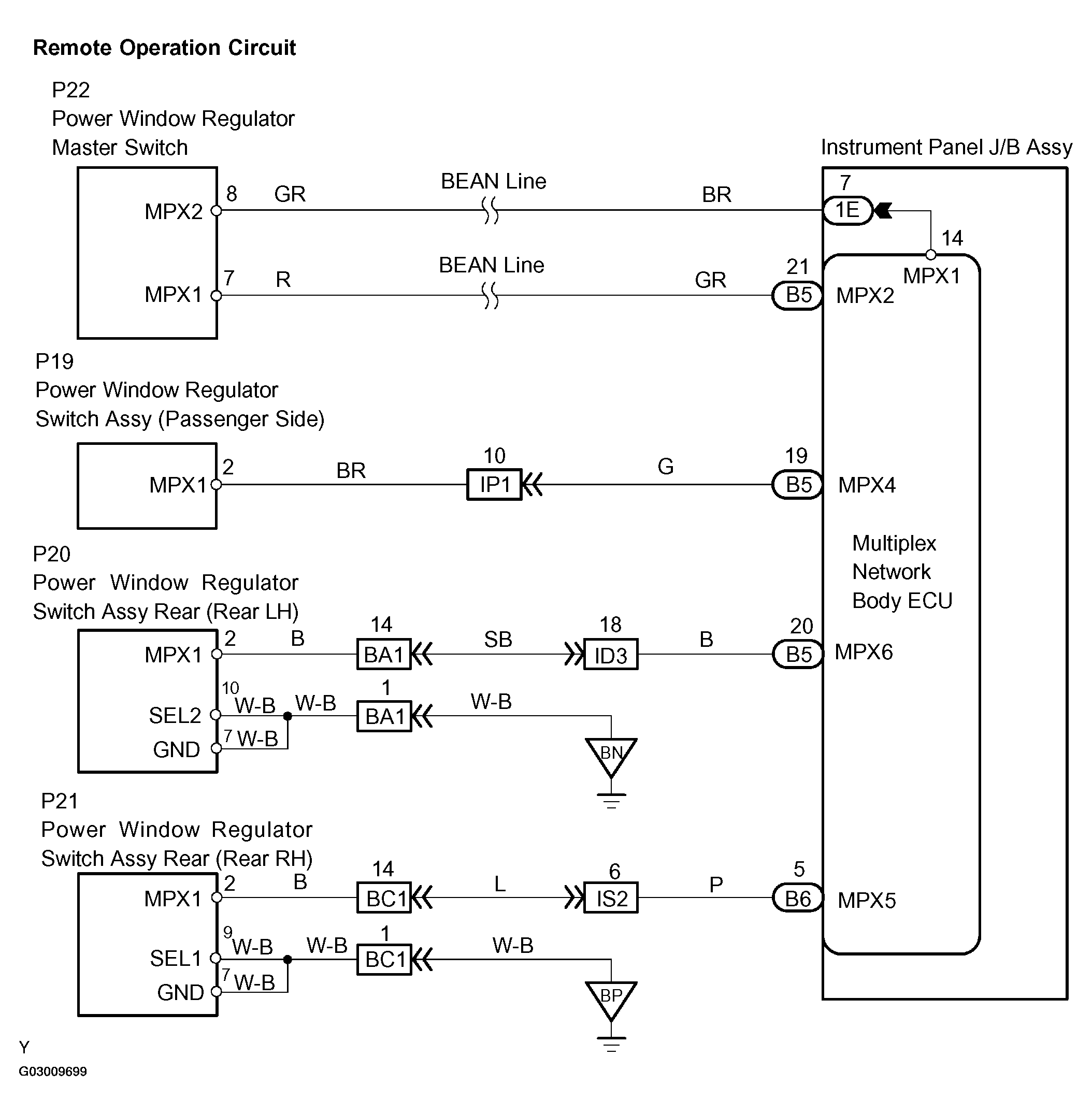

Fig 1: Remote Operation Circuit Wiring Diagram
G03009699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

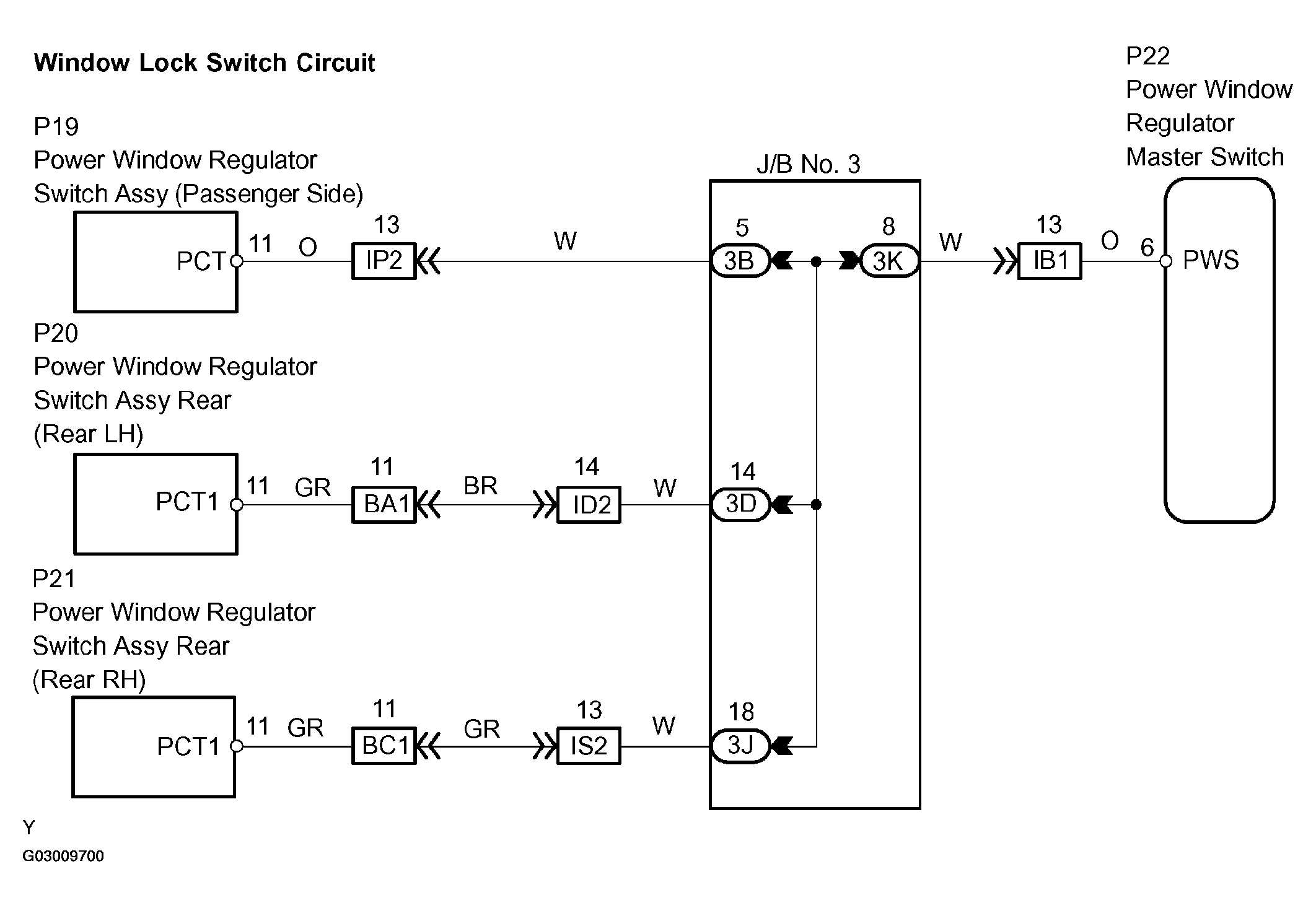

Fig 2: Window Lock Switch Circuit Wiring Diagram
G03009700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
