Quarter Window ASSY LH: Components

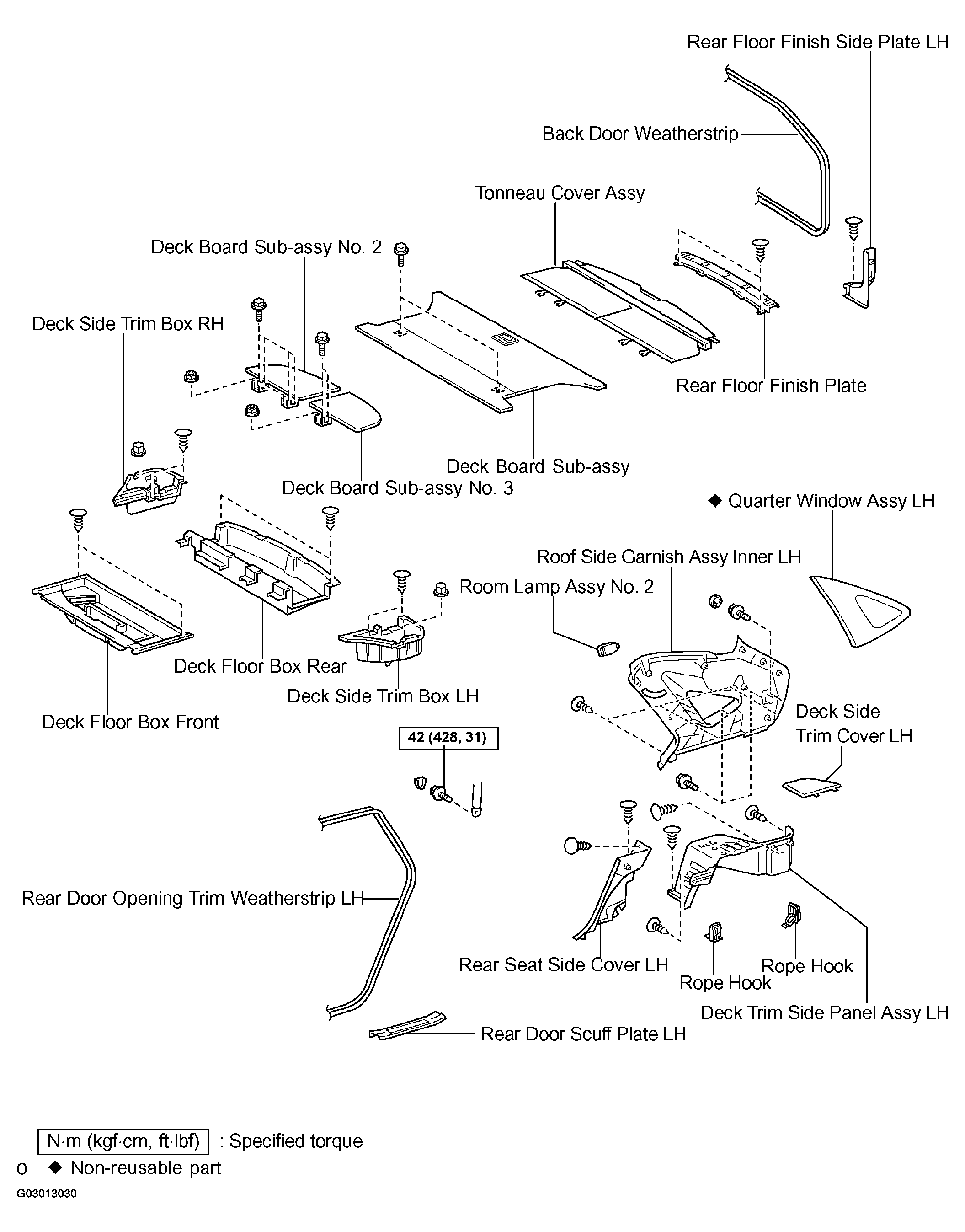

Fig 1: Identifying Quarter Window Component Assy LH
G03013030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
