On-Vehicle Inspection

  1. INSPECT INTAKE AIR CONTROL SYSTEM
    1. Using a 3-way connector, connect vacuum gauge to the actuator hose.
    2. Connect the hand-held tester to the DLC 3.
    3. Start the engine.
    4. Select the active test mode according to the message on the hand-held tester.

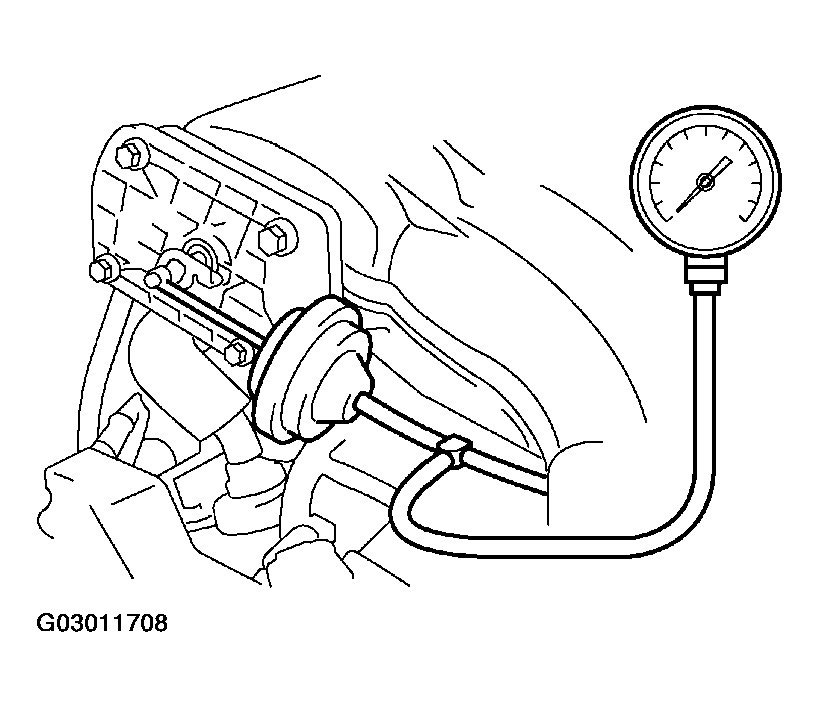

      Fig 1: Inspecting Intake Air Control System
      G03011708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Vacuum:

      INTAKE AIR CONTROL SYSTEM

      VSVON Approx. 27.6 kPa (200 mm Hg, 7.9 in. Hg)
      VSV OFF 0 kPa (0 mm Hg, 0 in. Hg.)
