List Of Disable A Monitor

HINT:

In the Fig 1 through Fig 6 shows the ECM monitoring status for the components when the DTCs on the left are set.

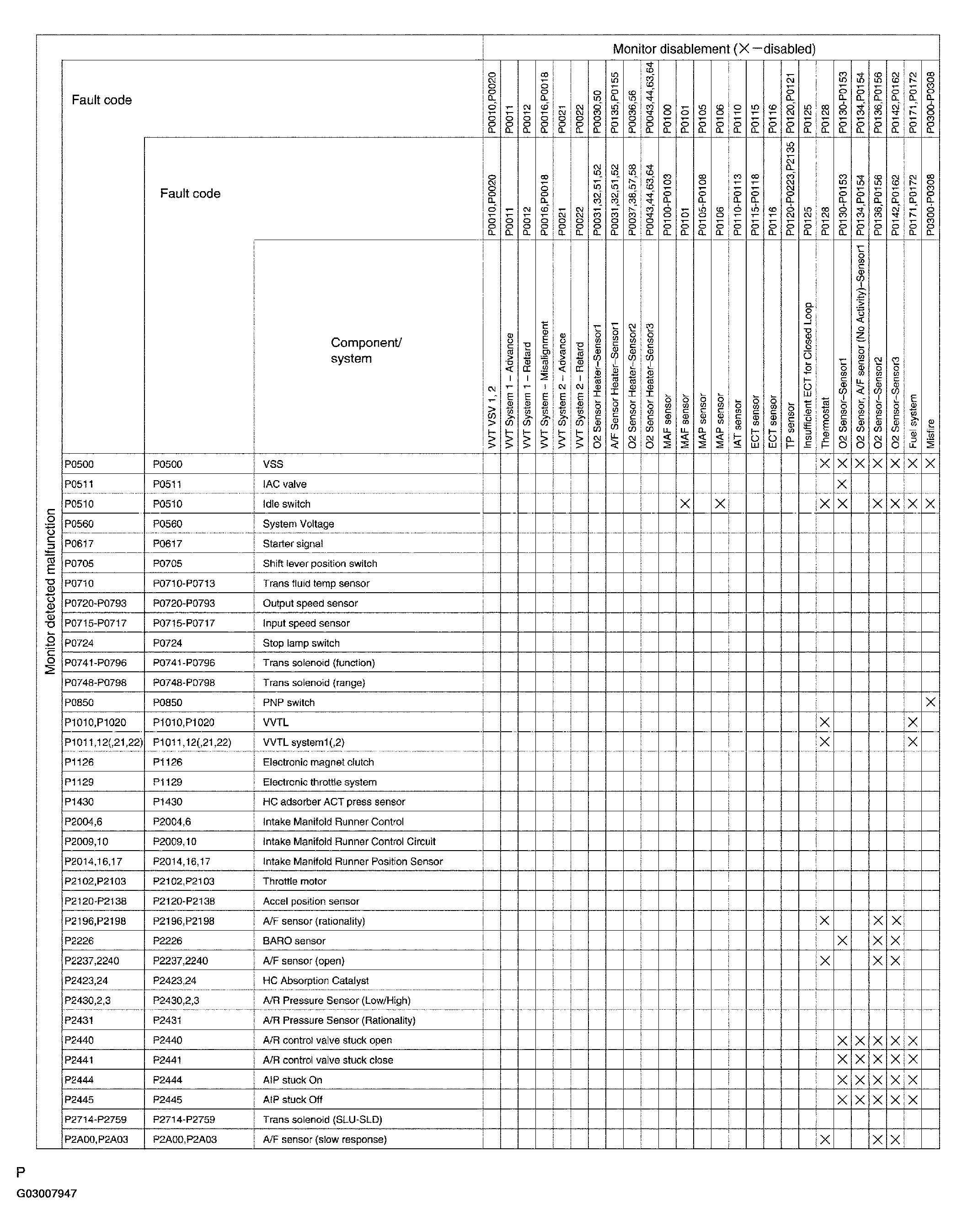

Fig 1: Disable Monitor List (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

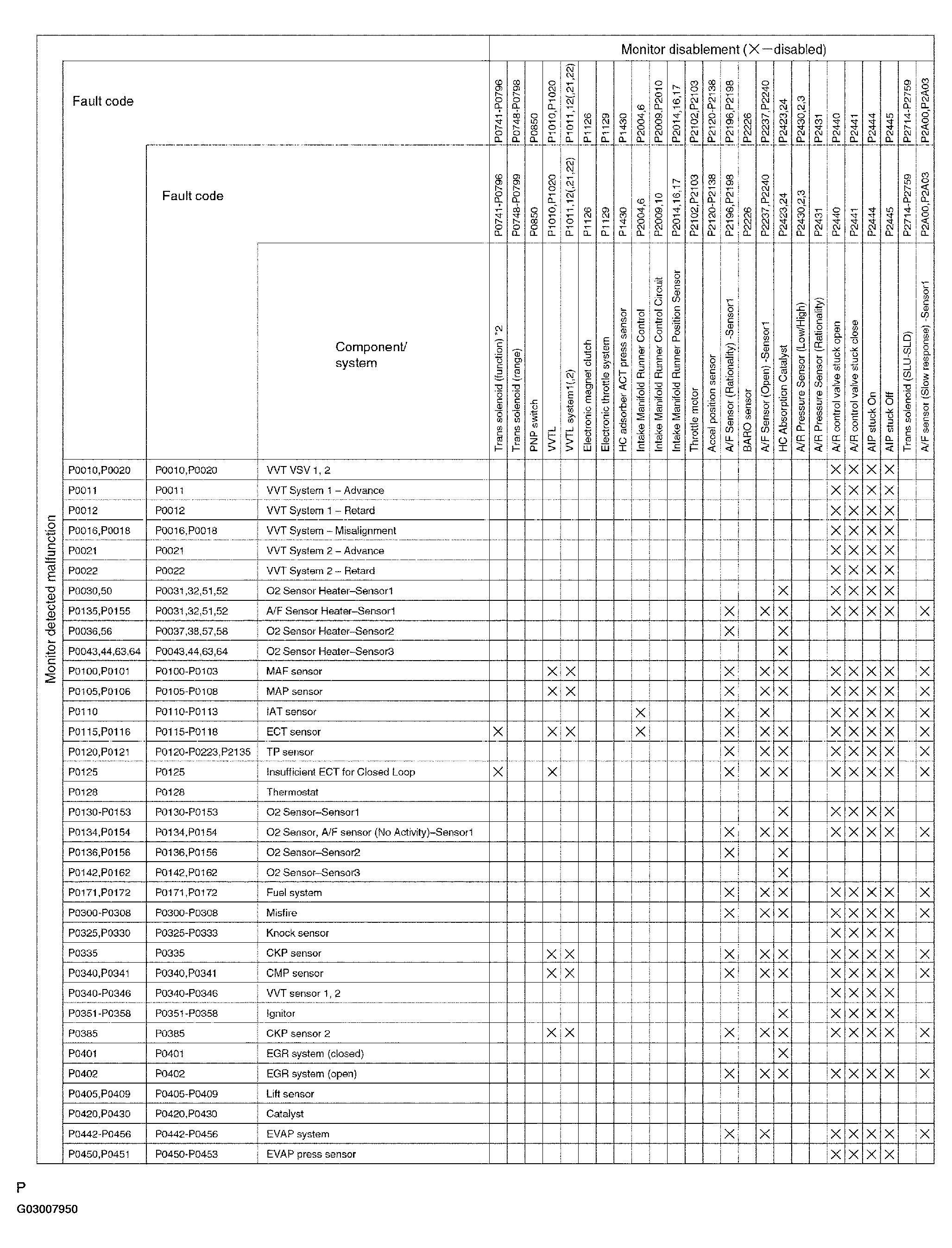

Fig 2: Disable Monitor List (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

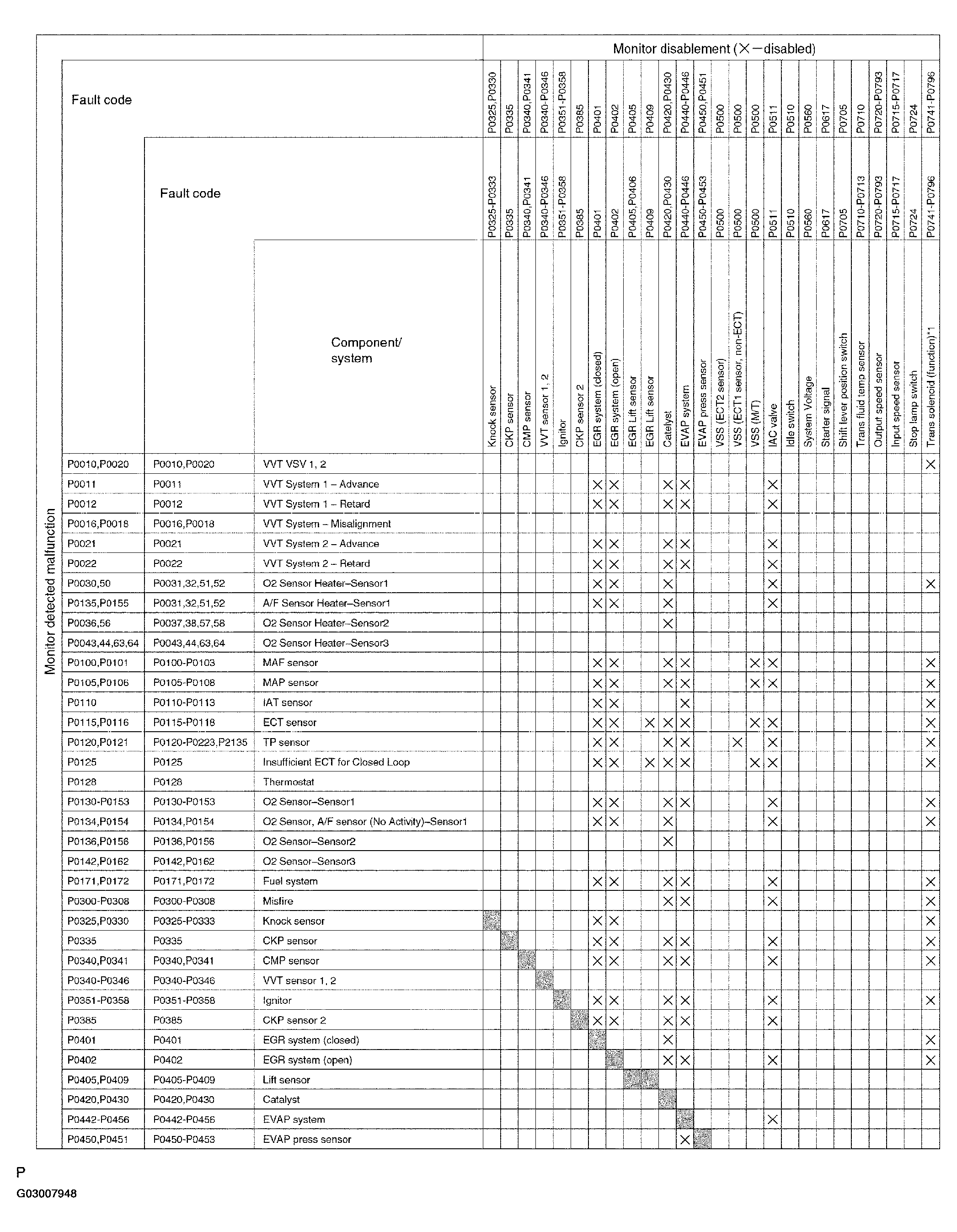

Fig 3: Disable Monitor List (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

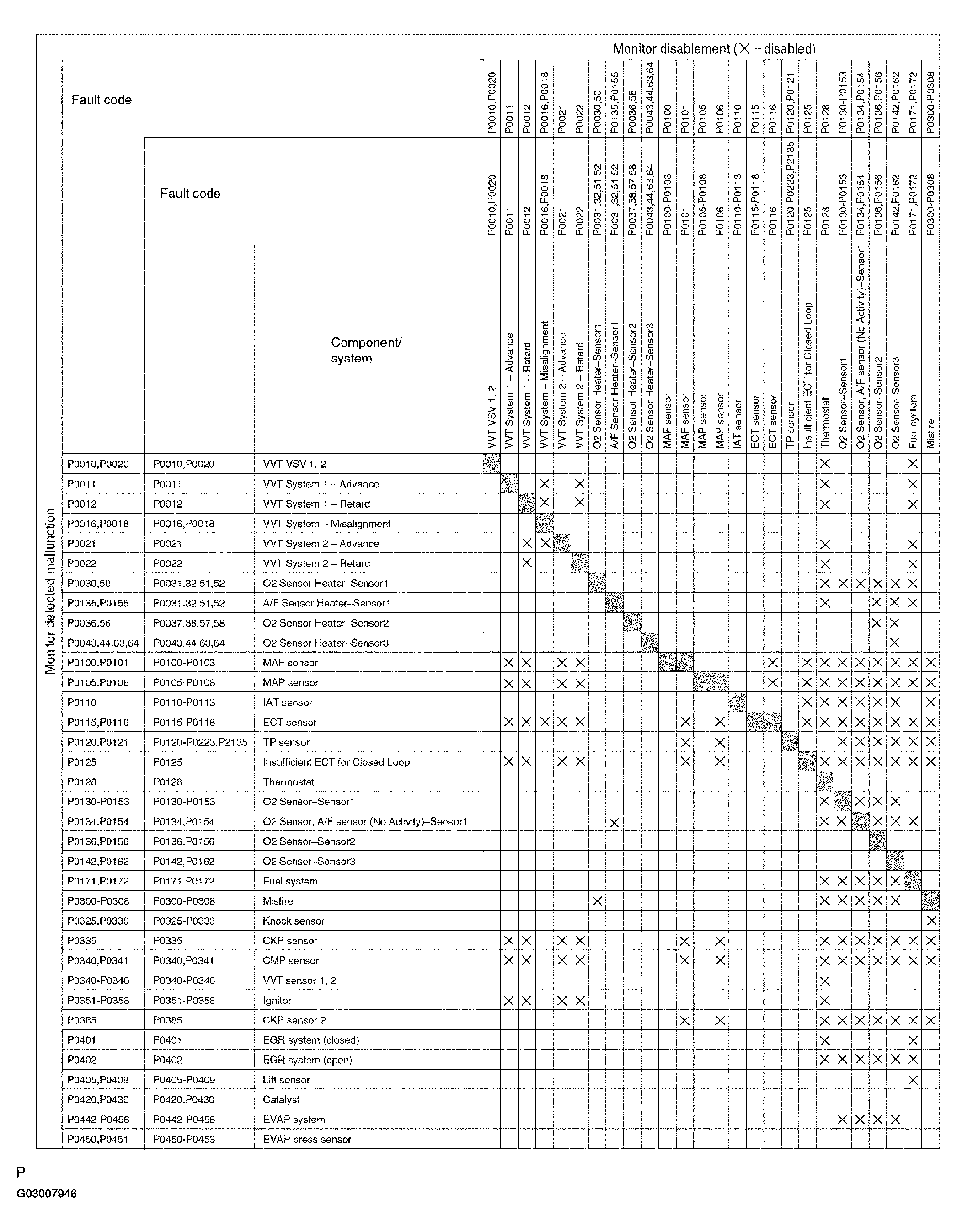

Fig 4: Disable Monitor List (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

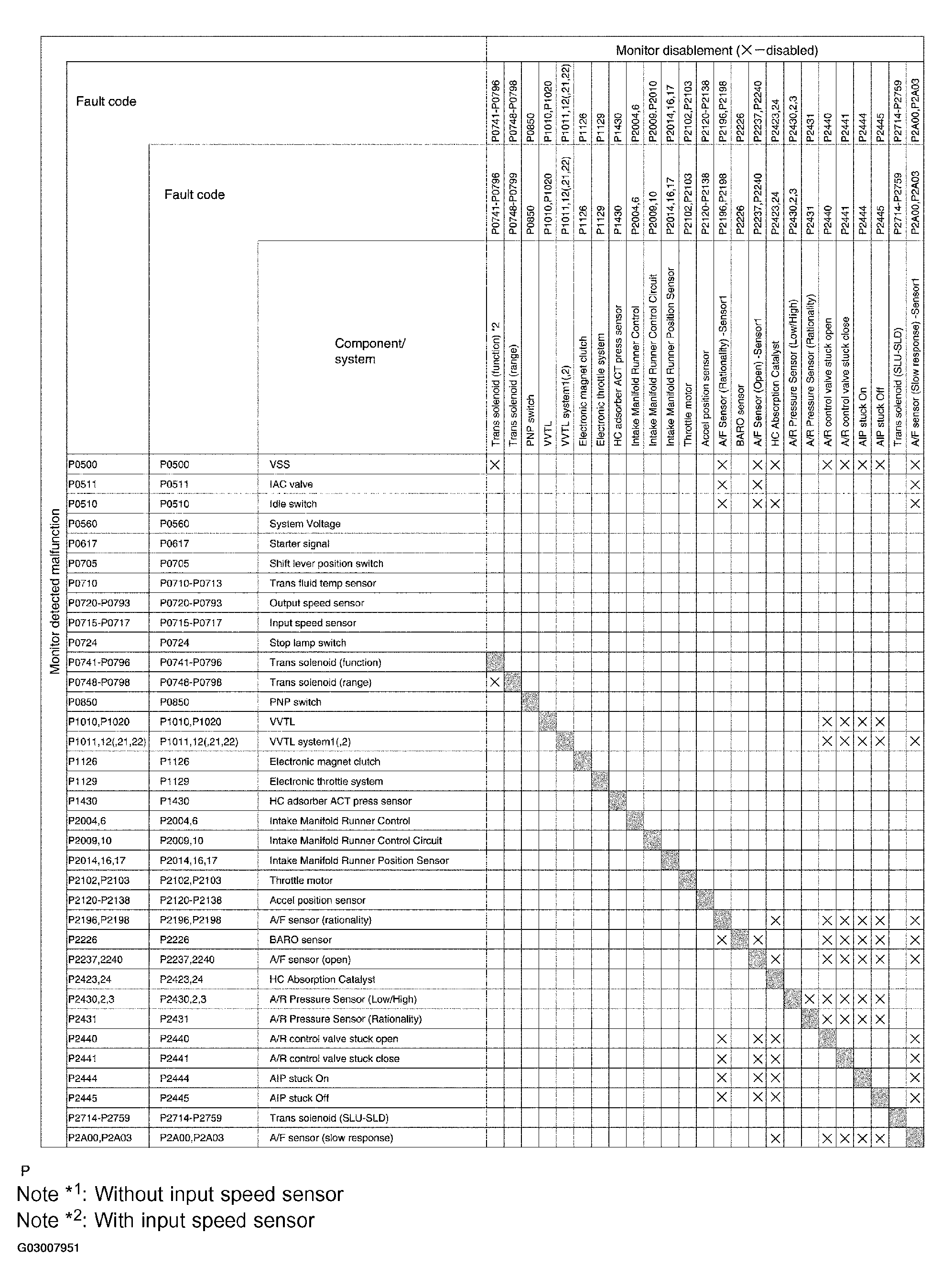

Fig 5: Disable Monitor List (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

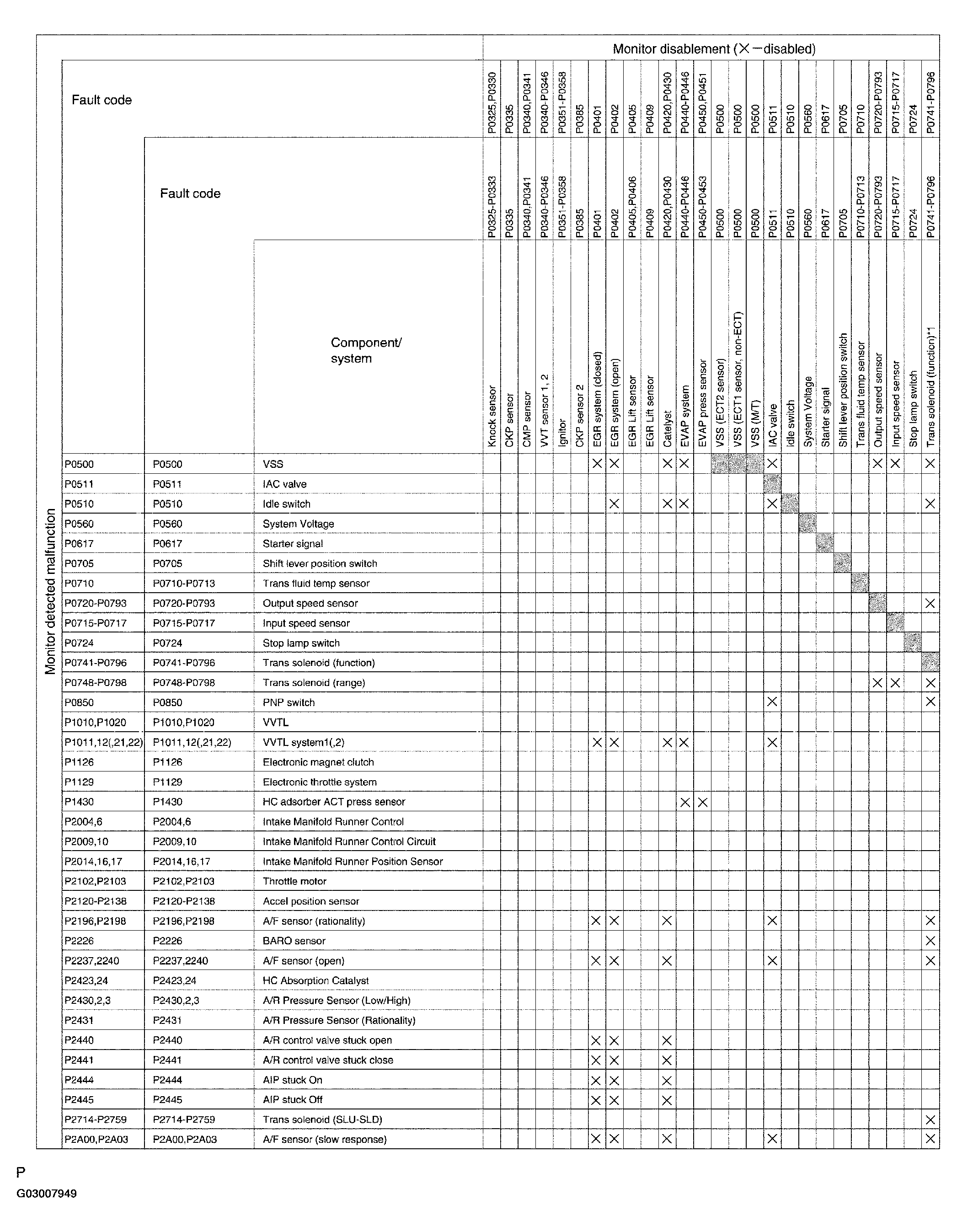

Fig 6: Disable Monitor List (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
