Height Control Sensor Sub-ASSY Front LH: Replacement

NOTE: Before replacement, press the height control OFF switch to stop the vehicle height control operation.

REMOVE FRONT WHEELS
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
1. Disconnect the connector.
2. Remove the Torx® nut and the height control sensor from the lower arm.

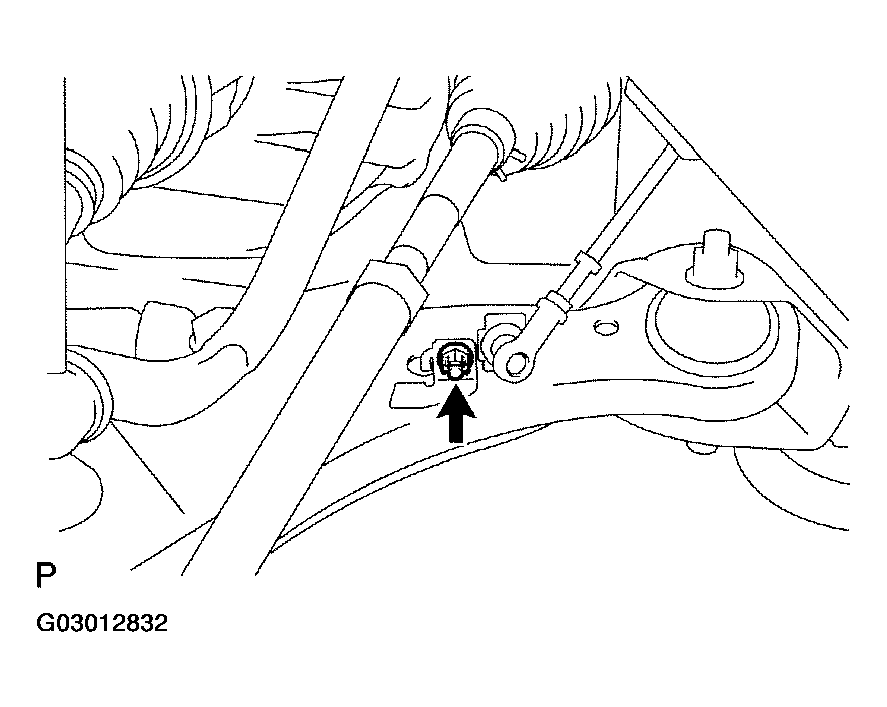

  Fig 1: Removing Torx® Nut And Height Control Sensor From Lower Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and the height control sensor FR LH.

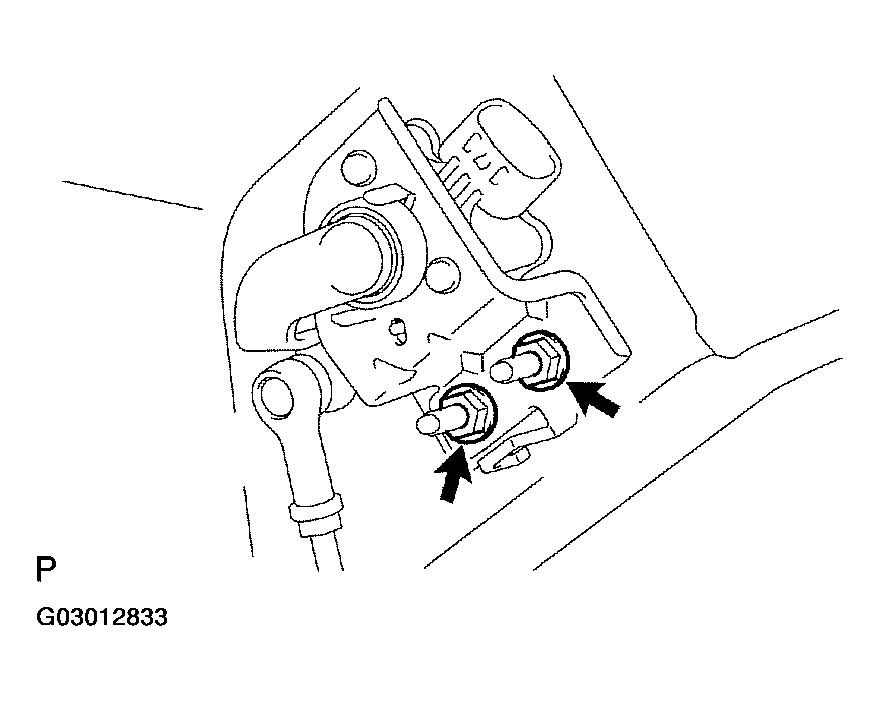

  Fig 2: Removing Height Control Sensor FR LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
1. Install the height control sensor FR LH with the 2 nuts.
  Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

  Fig 3: Installing Height Control Sensor FR LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the height control sensor onto the lower arm with the Torx® nut.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  Fig 4: Installing Height Control Sensor Onto Lower Arm With Torx® Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
ADJUST VEHICLE HEIGHT (See PRE-CHECK )
