Trunk / Liftgate Hinge

Luggage Compartment Door Hinge Part 1:

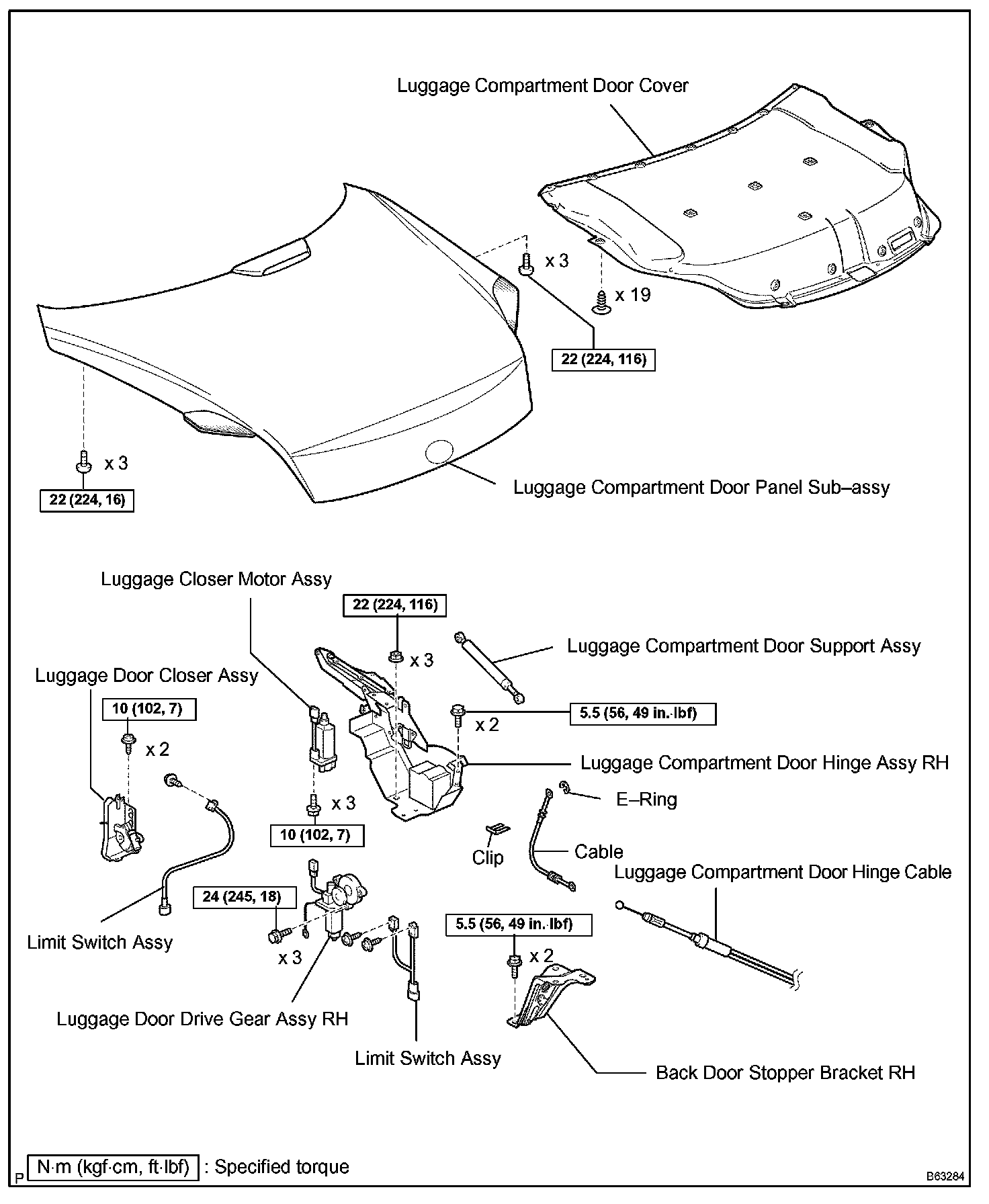

Luggage Compartment Door Hinge Part 2:
