Knock Sensor: Testing and Inspection

INSPECT KNOCK SENSOR

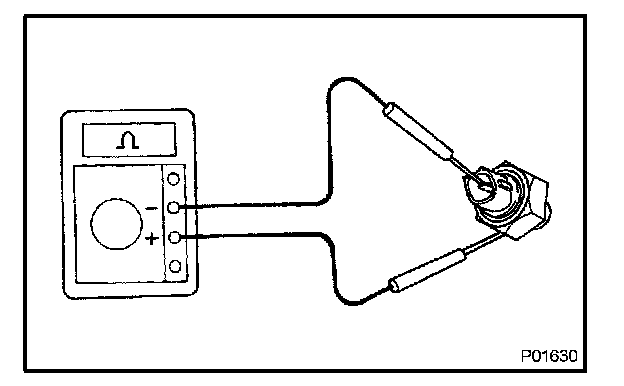

a. Measure the resistance between the terminal and body ground.

Standard: 120 to 280 kOhm at 20 °C (68 °F)

If the result is not as specified, replace the sensor.
