Ignition Timing: Testing and Inspection

INSPECT IGNITION TIMING
a. Warm up the engine and stop the engine.
b. Check the ignition timing.

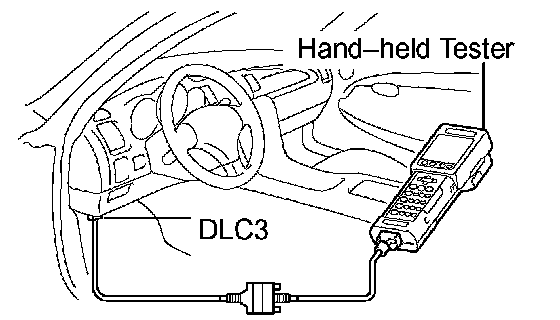

1. Connect a hand-held tester to the DLC3.
2. Enter DATA LIST MODE on the hand-held tester.

HINT: Please refer to the hand-held tester operator's manual for further details.

3. Start and idle the engine.
Ignition timing: 8 to 12° BTDC @ idle (Shift lever on N)
4. Disconnect the hand-held tester from the DLC3.
