Intake Manifold
RH

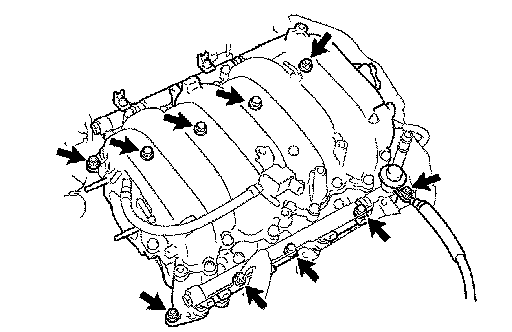

Install the intake manifold assembly with the 6 bolts and 4 nuts.
Torque 18 Nm (184 kgf-cm, 13 ft. lbs.)
LH

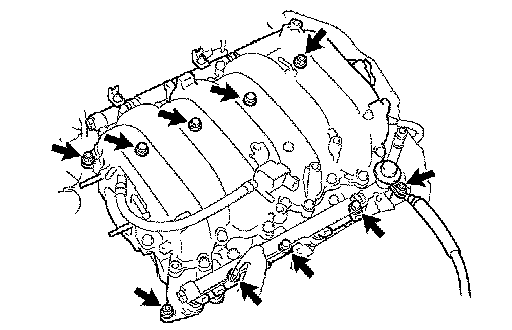

Install the intake manifold with the 6 bolts and 4 nuts.
Torque 18 Nm (184 kgf-cm, 13 ft. lbs.)
Install the intake manifold assembly with the 6 bolts and 4 nuts.
Torque 18 Nm (184 kgf-cm, 13 ft. lbs.)
LH
Install the intake manifold with the 6 bolts and 4 nuts.
Torque 18 Nm (184 kgf-cm, 13 ft. lbs.)
