Height Control Sensor Sub-ASSY Rear: Components

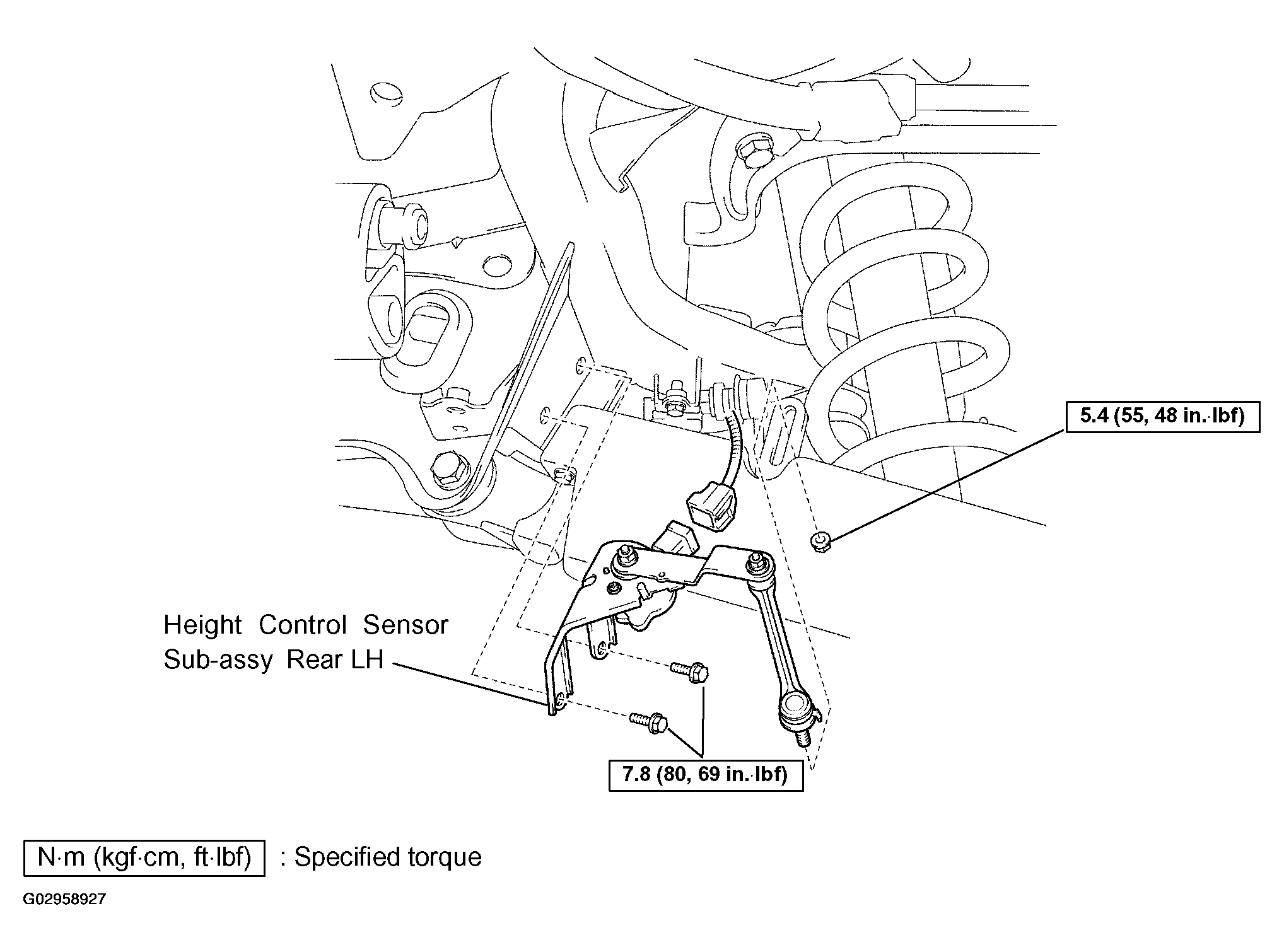

Fig 1: Identifying Height Control Sensor Sub-Assy Rear Components & Replacements
G02958927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
