Problem Symptoms Table: Notes

HINT:

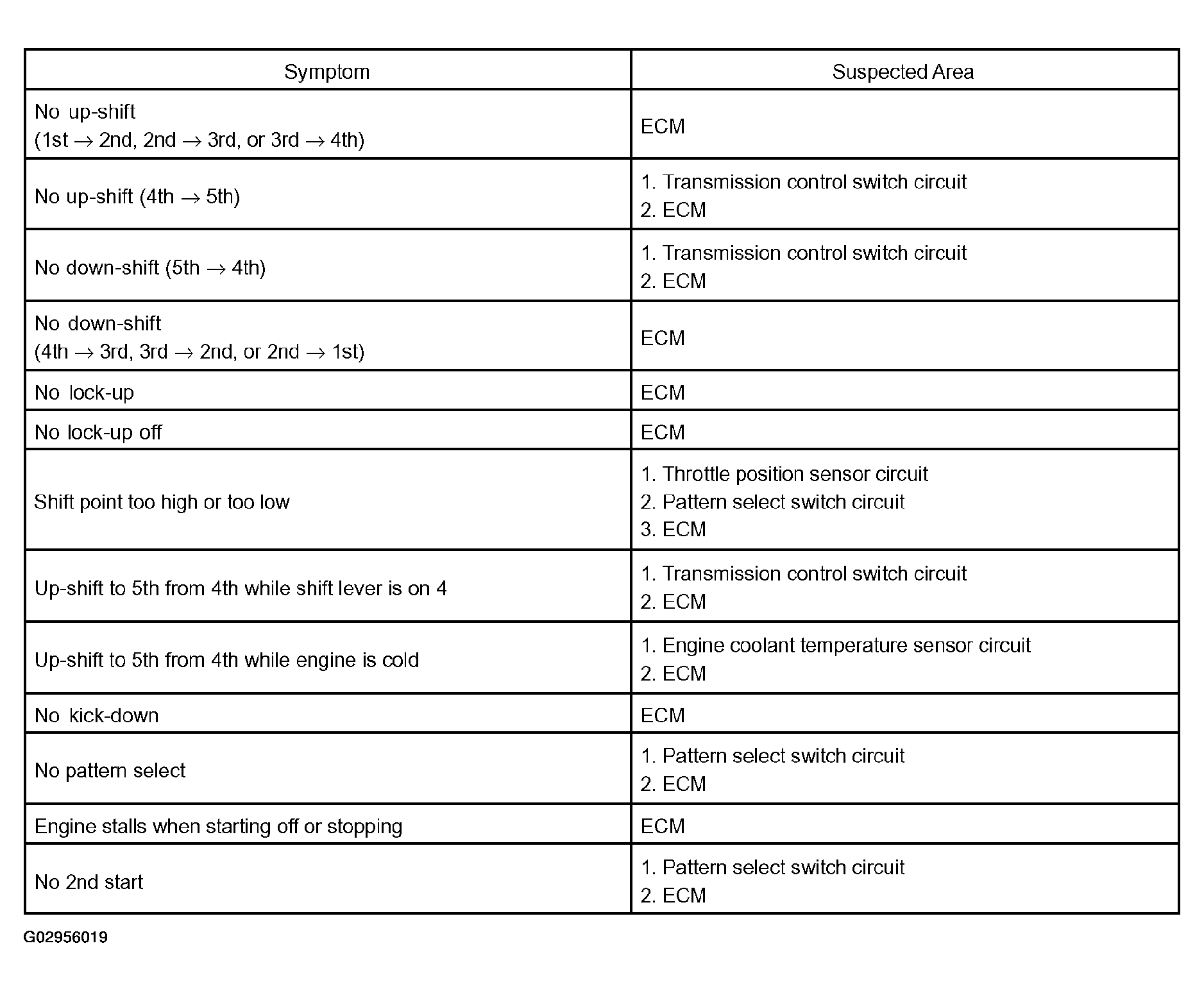

• Use Figure to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
• The Matrix Table is divided into 3 chapters. When troubleshooting, check chapter 1 first. If instructions are given in chapter 1 to proceed to chapter 2 or 3, proceed as instructed.
• If the instruction "Proceed to next circuit inspection shown on matrix table" is given in the flow diagram, proceed to the next suspected area circuit in the table.
• If the trouble still occurs even though there are no abnormalities in any of the circuits, check the ECM and replace it if necessary.
