Multi-Display (Center Display): Replacement

HINT:

• See COMPONENTS  .
• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat pretensioner activation.
2. REMOVE AIR CONDITIONING CONTROL ASSY (See  REPLACEMENT  )
3. w/ LEXUS Navigation System: REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (See  REPLACEMENT  )
4. w/ LEXUS Navigation System: REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY NO.2 (See  REPLACEMENT  )
5. w/ LEXUS Navigation System: REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
   1. Remove the 2 bolts and 2 screws.
   2. Disconnect the connector. Then remove the multi-display (center display) (with panel) and clip.

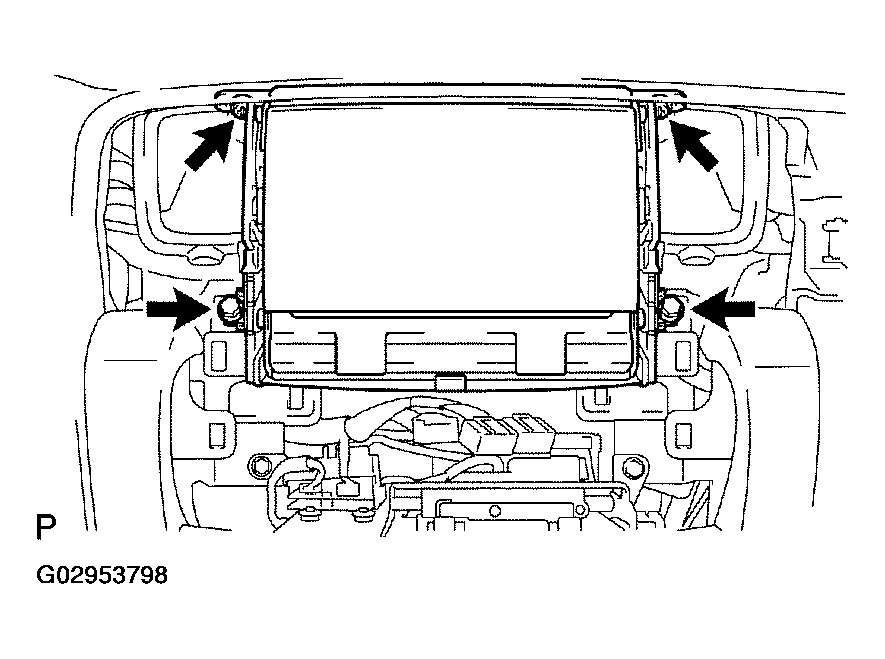

      Fig 1: Removing Bolts & Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE MULTI-DISPLAY (CENTER DISPLAY)

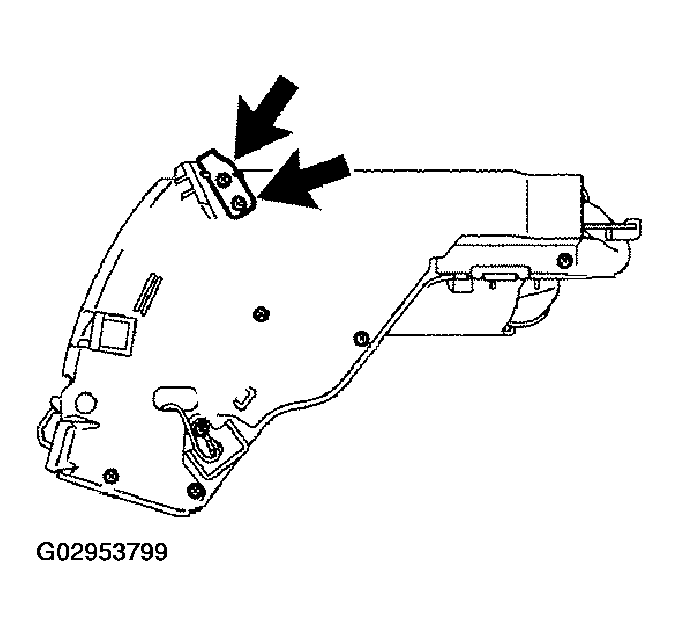

   1. Remove the 4 screws at the both sides of the instrument panel finish upper panel.
      Fig 2: Removing Instrument Panel Finish Upper Panel With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

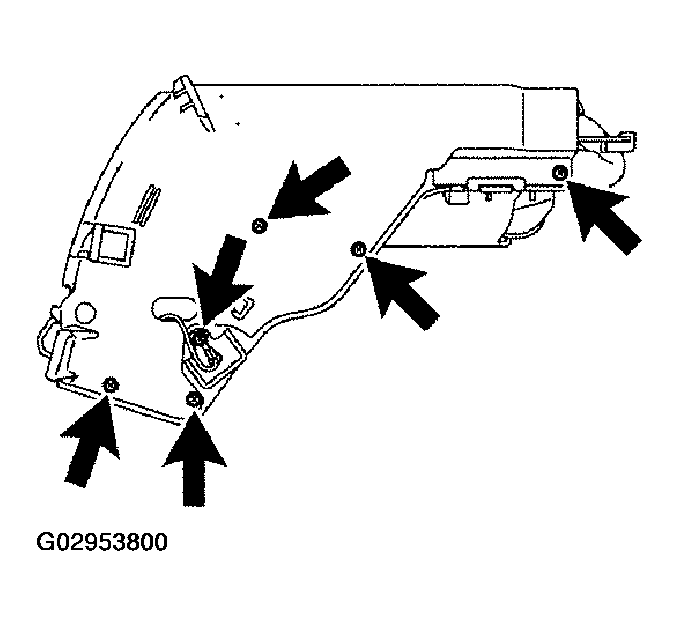

   2. Remove the 6 screws and instrument panel finish panel No. 1 retainer.
      Fig 3: Removing Instrument Panel Finish Panel No. 1 Retainer With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

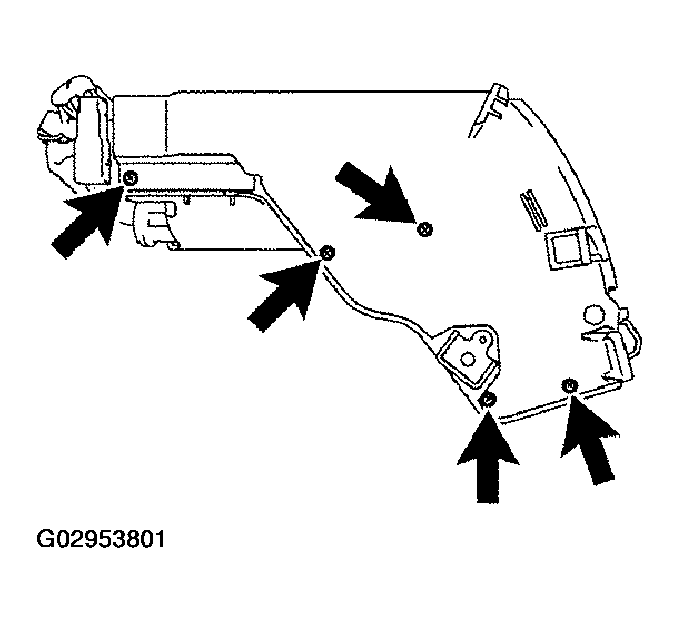

   3. Remove the 5 screws and instrument panel finish panel No. 2 retainer.
   4. Remove the instrument cluster finish center lower panel.
      Fig 4: Removing Instrument Panel Finish Panel No. 2 Retainer With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the 2 screws.

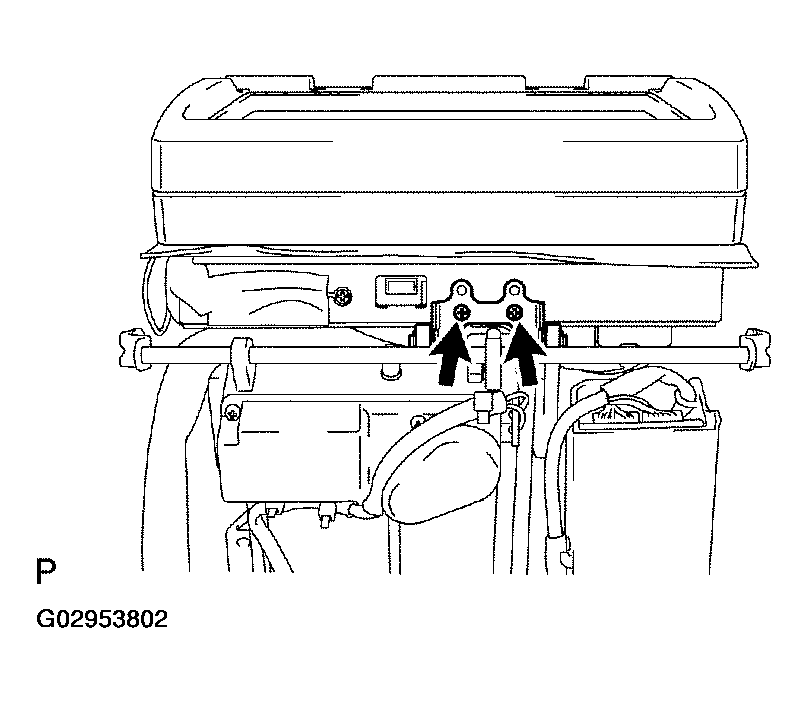

      Fig 5: Removing Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Remove the 2 screws and wiring harness clamp.
   7. Disconnect the 4 connectors, then remove the clamp.
   8. Remove the multi-display.

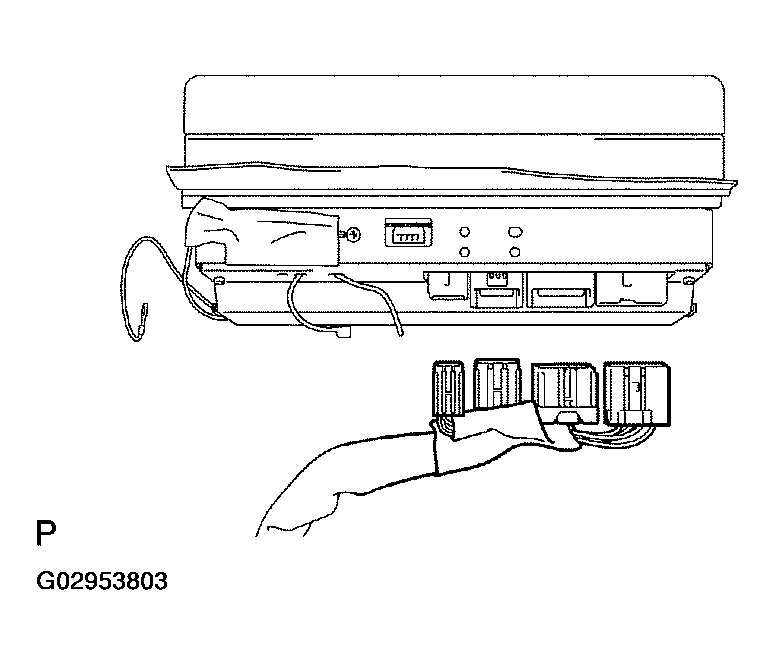

      Fig 6: Disconnecting Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION (See  INITIALIZATION  )
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
9. CHECK SRS WARNING LAMP (See  ON-VEHICLE INSPECTION  )
