Power Point Socket ASSY: Replacement

HINT:

• See COMPONENTS  .
• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE CONSOLE UPPER PANEL GARNISH REAR (See  REPLACEMENT  )
3. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
4. REMOVE POWER POINT SOCKET ASSY
   1. Pull the claw of the socket in the direction of the arrow, push the socket toward the inside of the chamber and remove it.

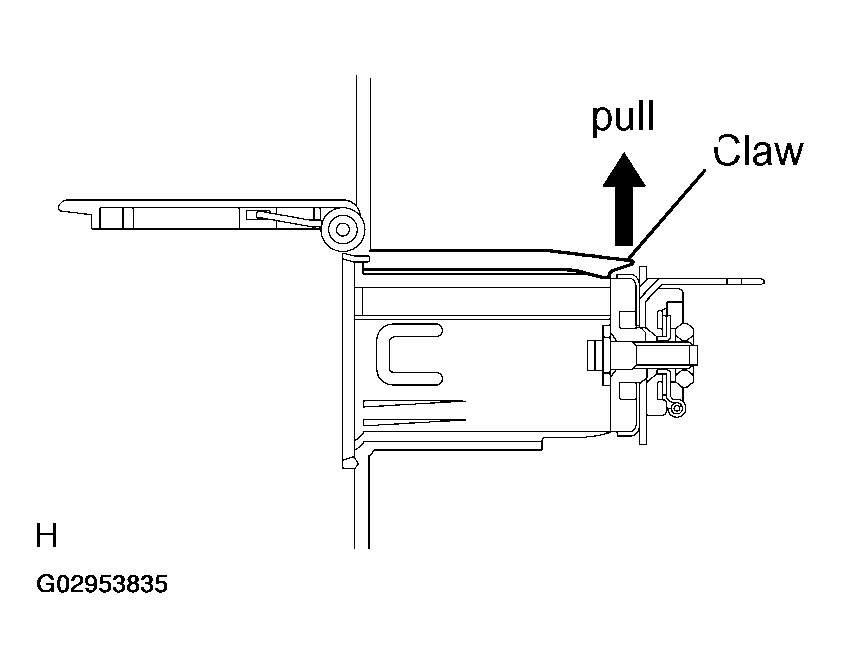

      Fig 1: Pulling Claw Of Socket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE POWER POINT SOCKET COVER
   1. Remove the cover from the console box.
6. INSTALL POWER POINT SOCKET ASSY
   1. Align the claw of the socket with the cutout of the cover and fully push it in to install.
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION (See  INITIALIZATION  )
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
