Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST.

   Position control ECU assy (driver, passenger side):

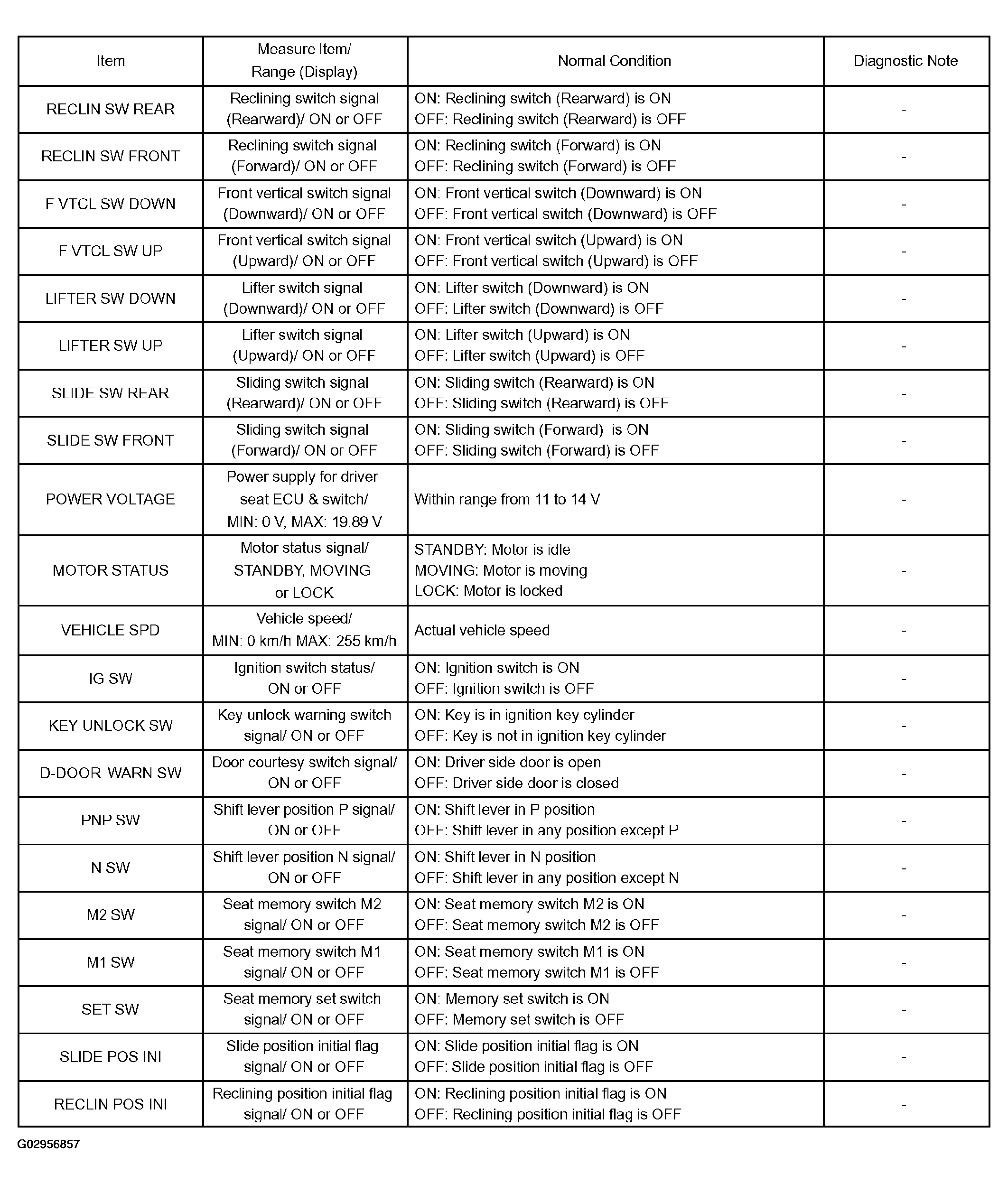

   Fig 1: Data List Table (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

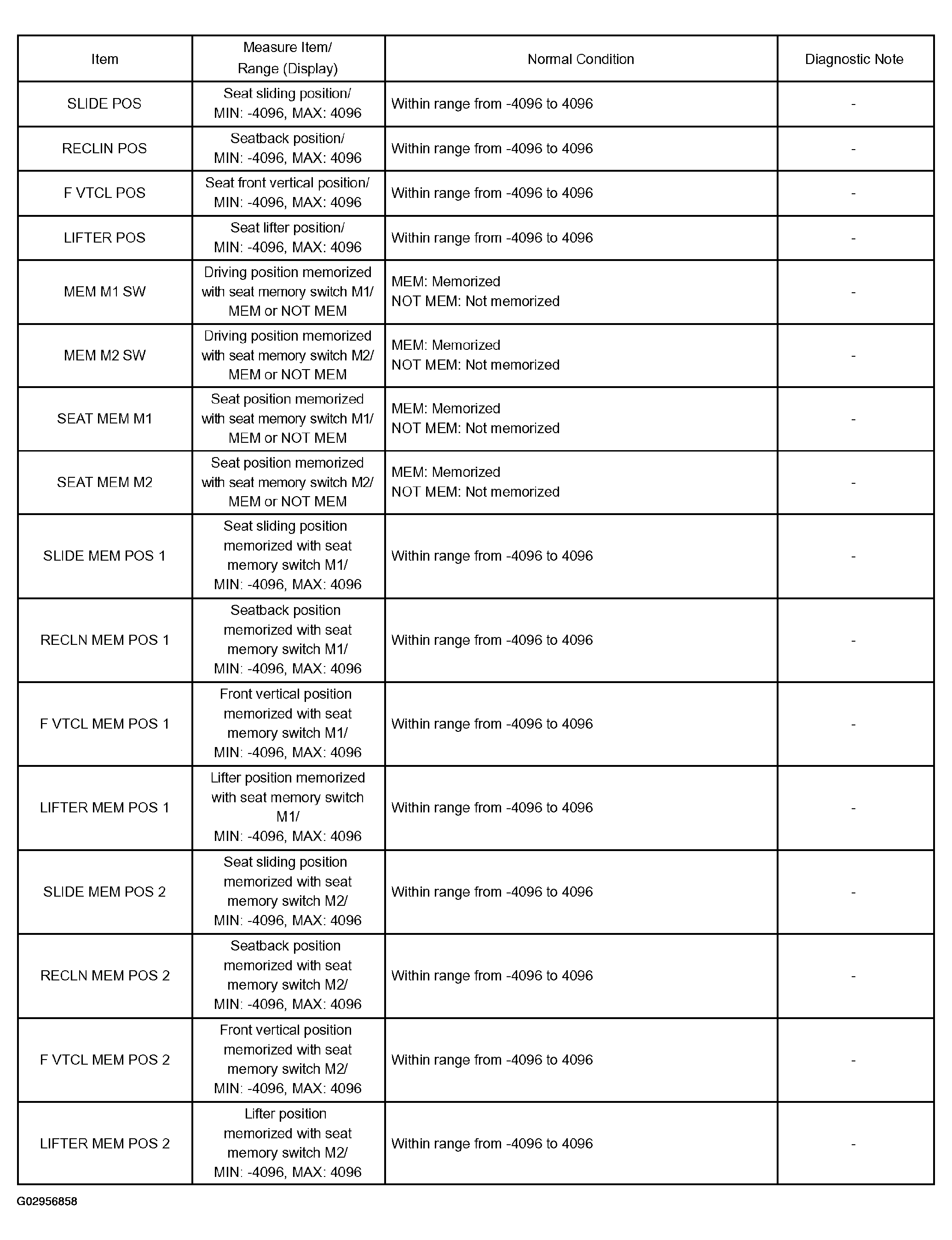

   Fig 2: Data List Table (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time.

The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST.

   Position control ECU assy (driver, passenger side):

   ACTIVE TEST



   Item	Test Details	Diagnostic Note
   RECLINING	Seat reclining operation FRONT/REAR	-
   F VERTICAL	Seat front vertical operation UP/DOWN	-
   LIFTER	Seat lifter operation UP/DOWN	-
   SLIDE	Seat sliding operation FRONT/REAR	-
