Front Power Seat Control System (W/Memory) - Diagnostics: Location

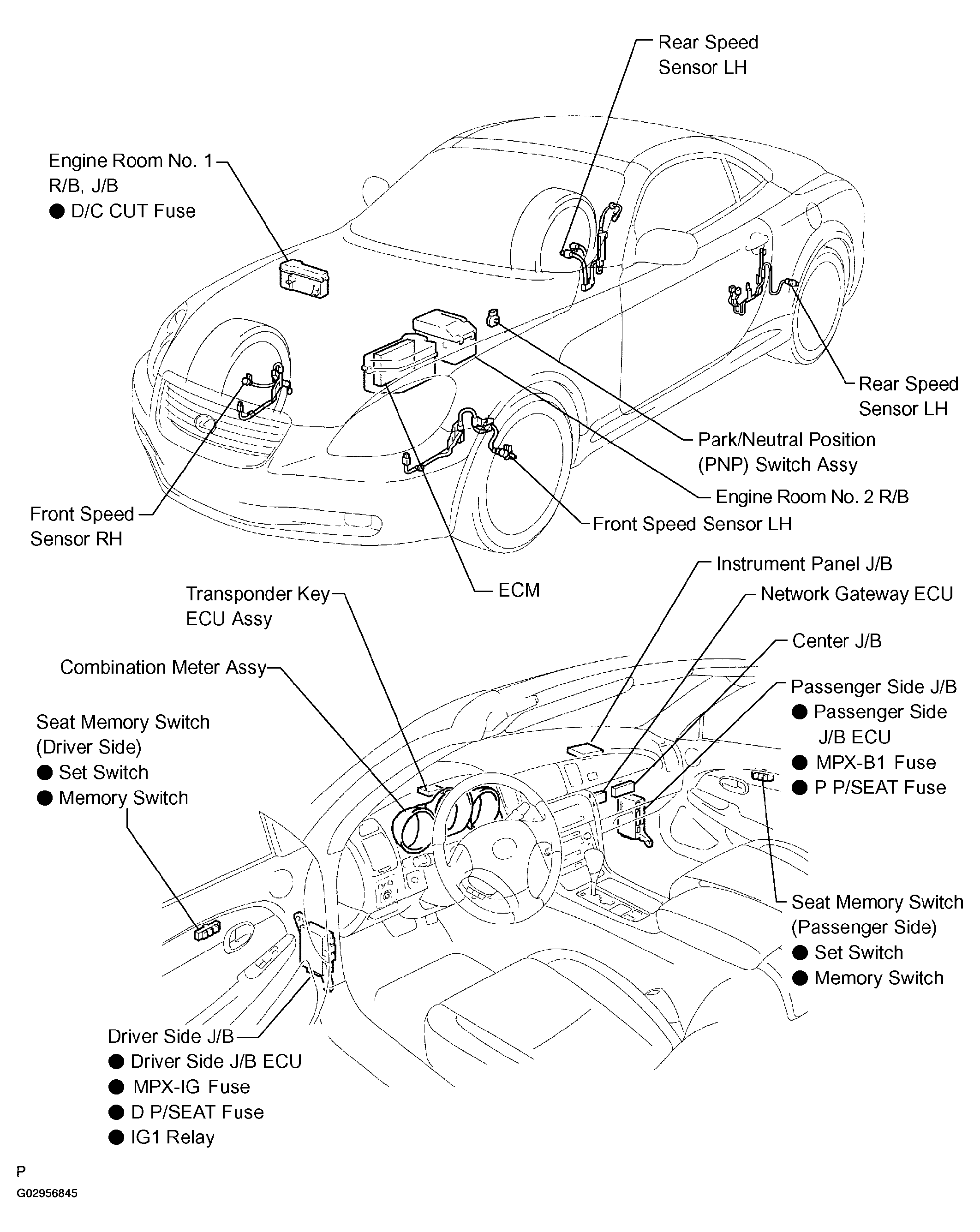

Fig 1: Locating Front Power Seat Control System Components & Replacements (W/Memory - 1 Of 3)
G02956845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

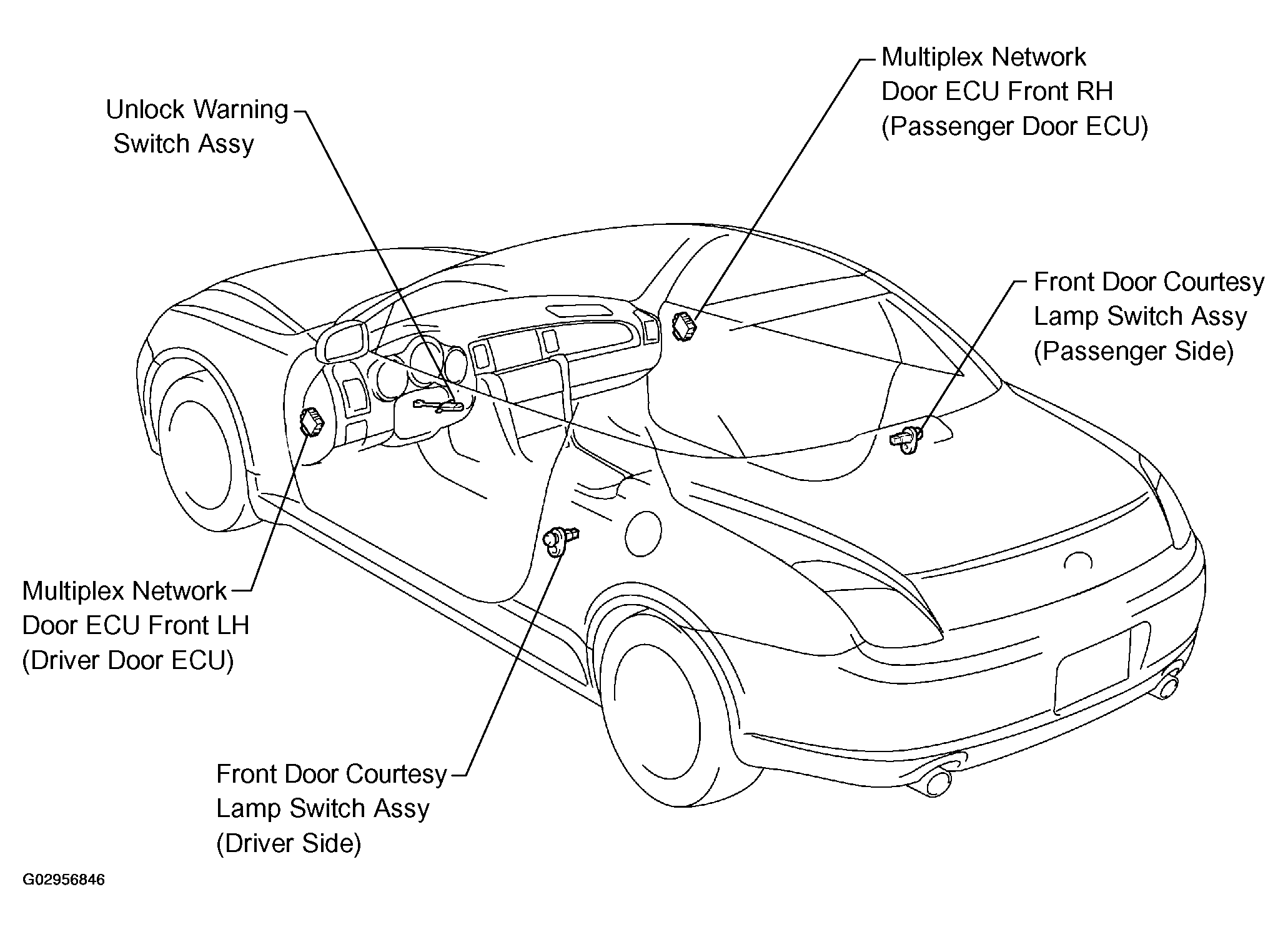

Fig 2: Locating Front Power Seat Control System Components & Replacements (W/Memory - 2 Of 3)
G02956846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

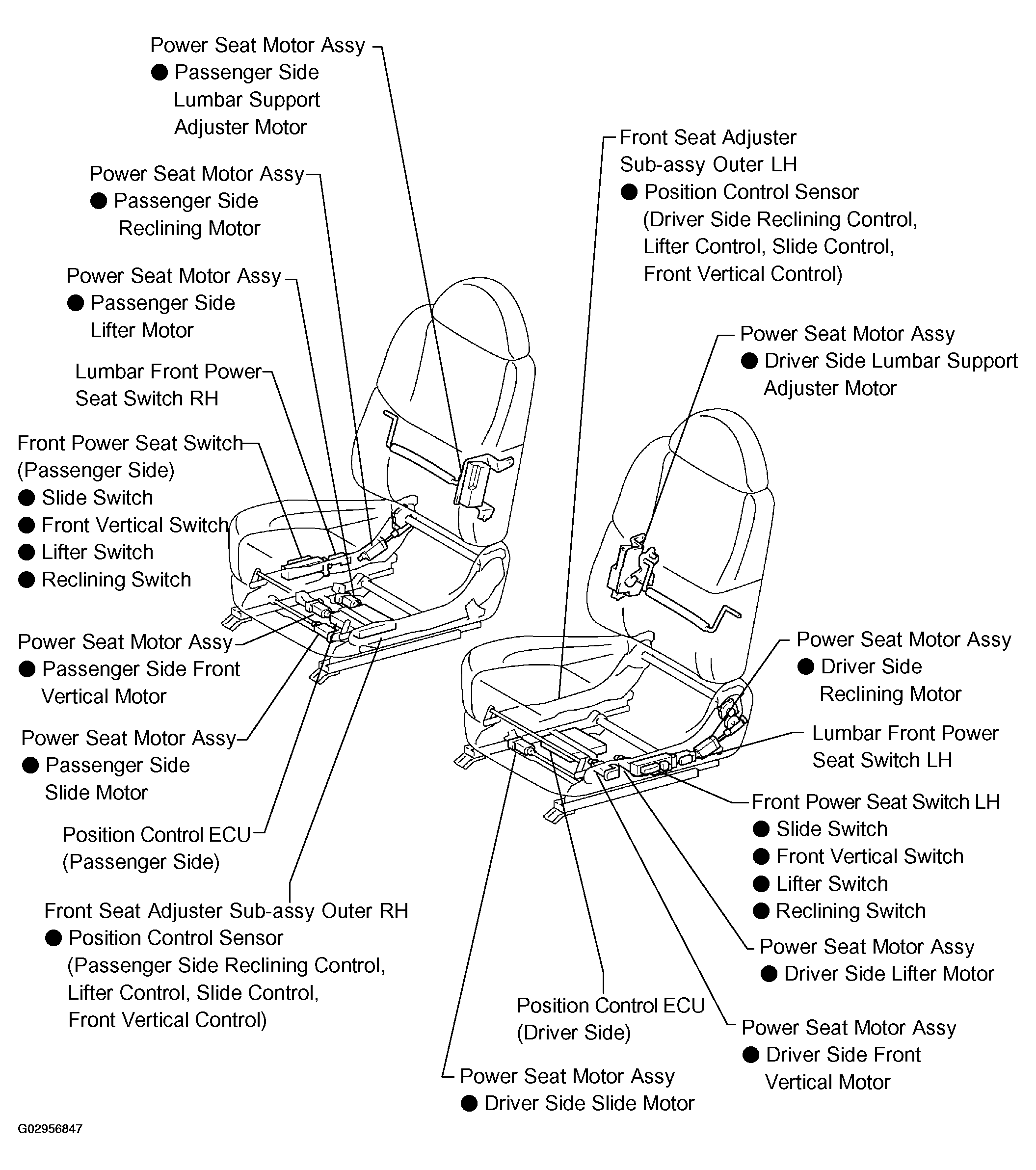

Fig 3: Locating Front Power Seat Control System Components & Replacements (W/Memory - 3 Of 3)
G02956847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
