Rear Seat: Components

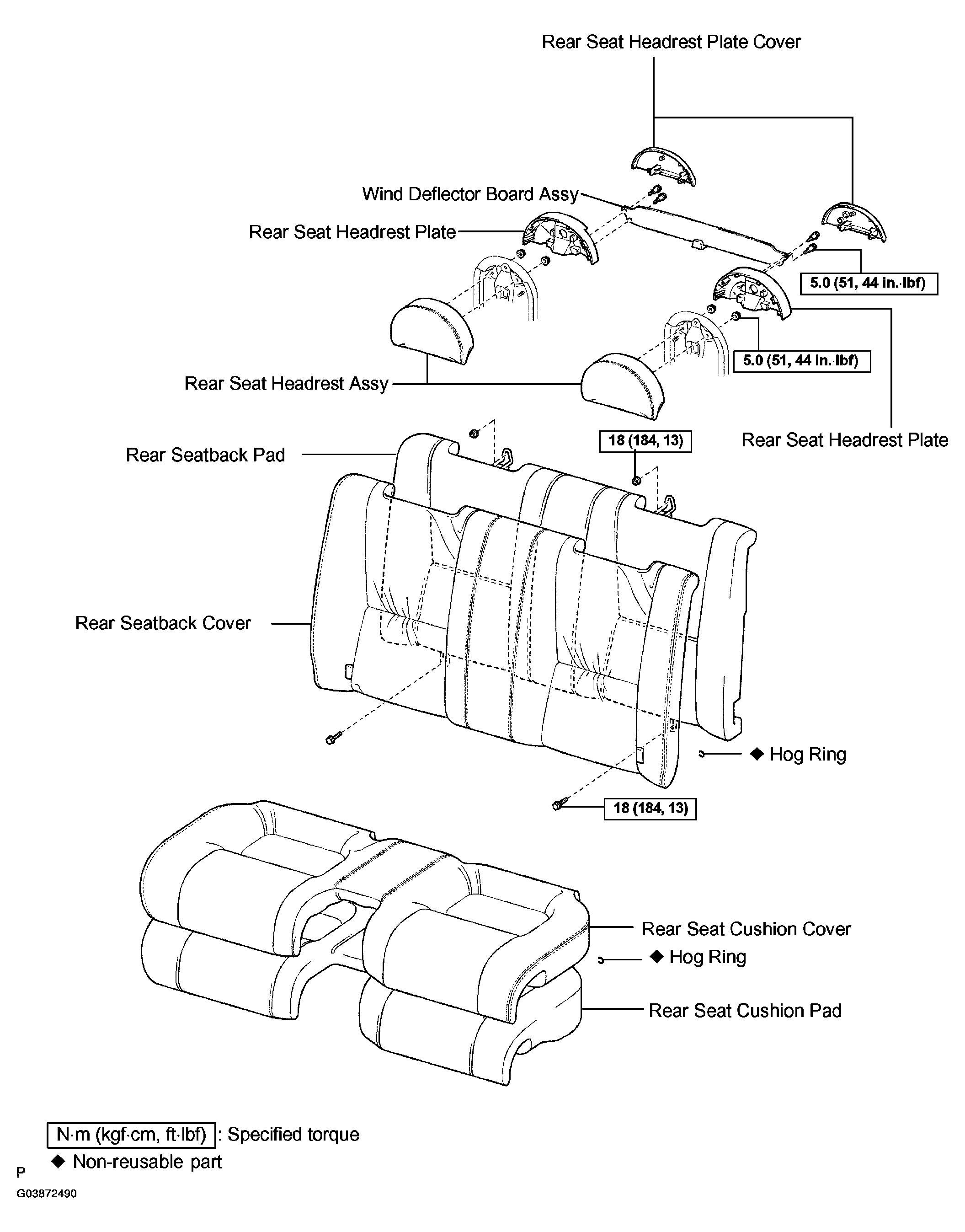

Fig 1: Identifying Rear Seat Components & Replacements
G03872490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
