Power Window Does Not Operate On Passenger Side: Wiring Diagram

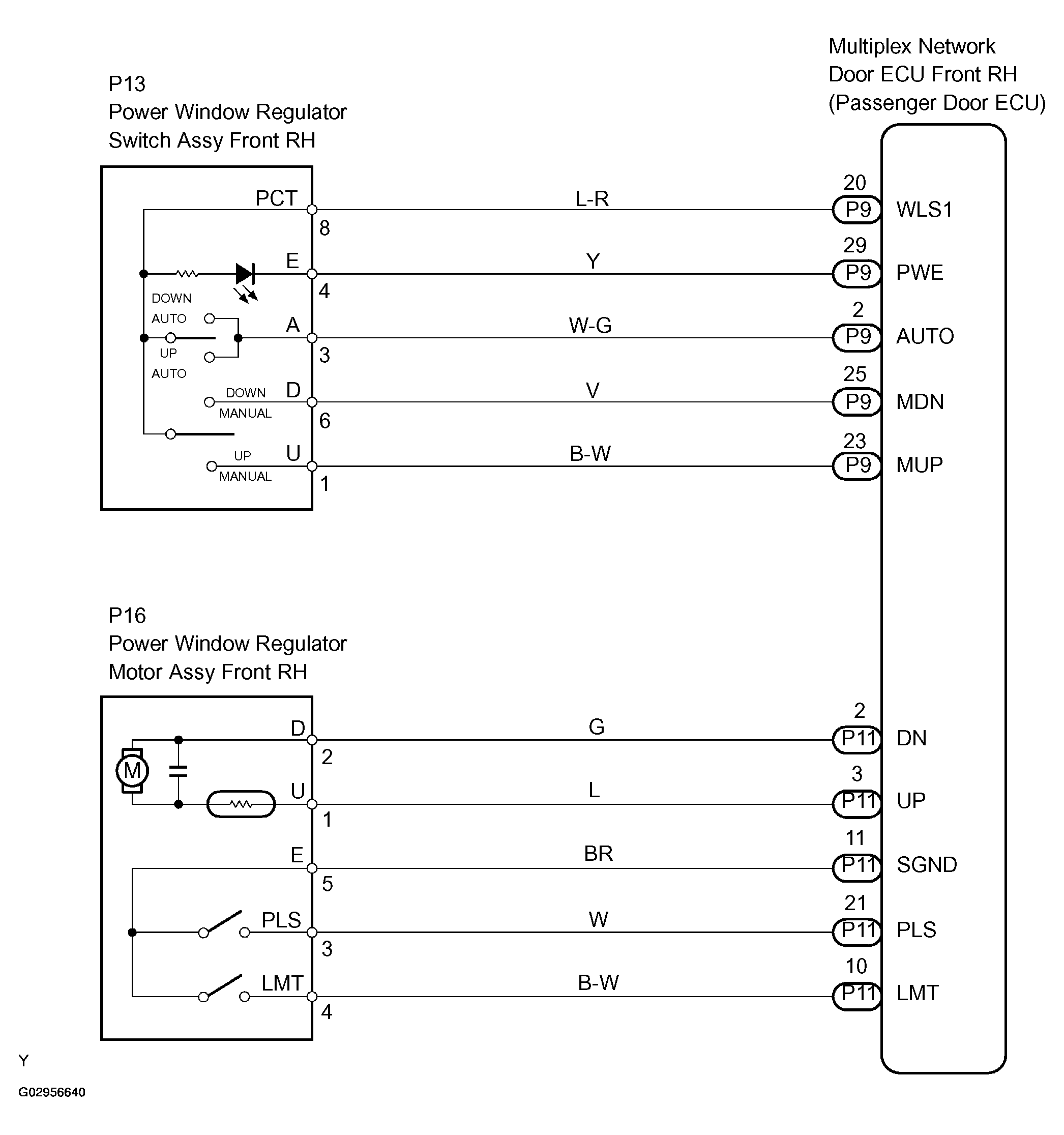

Fig 1: Power Window Does Not Operate On Passenger Side Wiring Diagram
G02956640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
