System Diagram

The starting system rotates the starter motor according to the signals from the ignition switch.

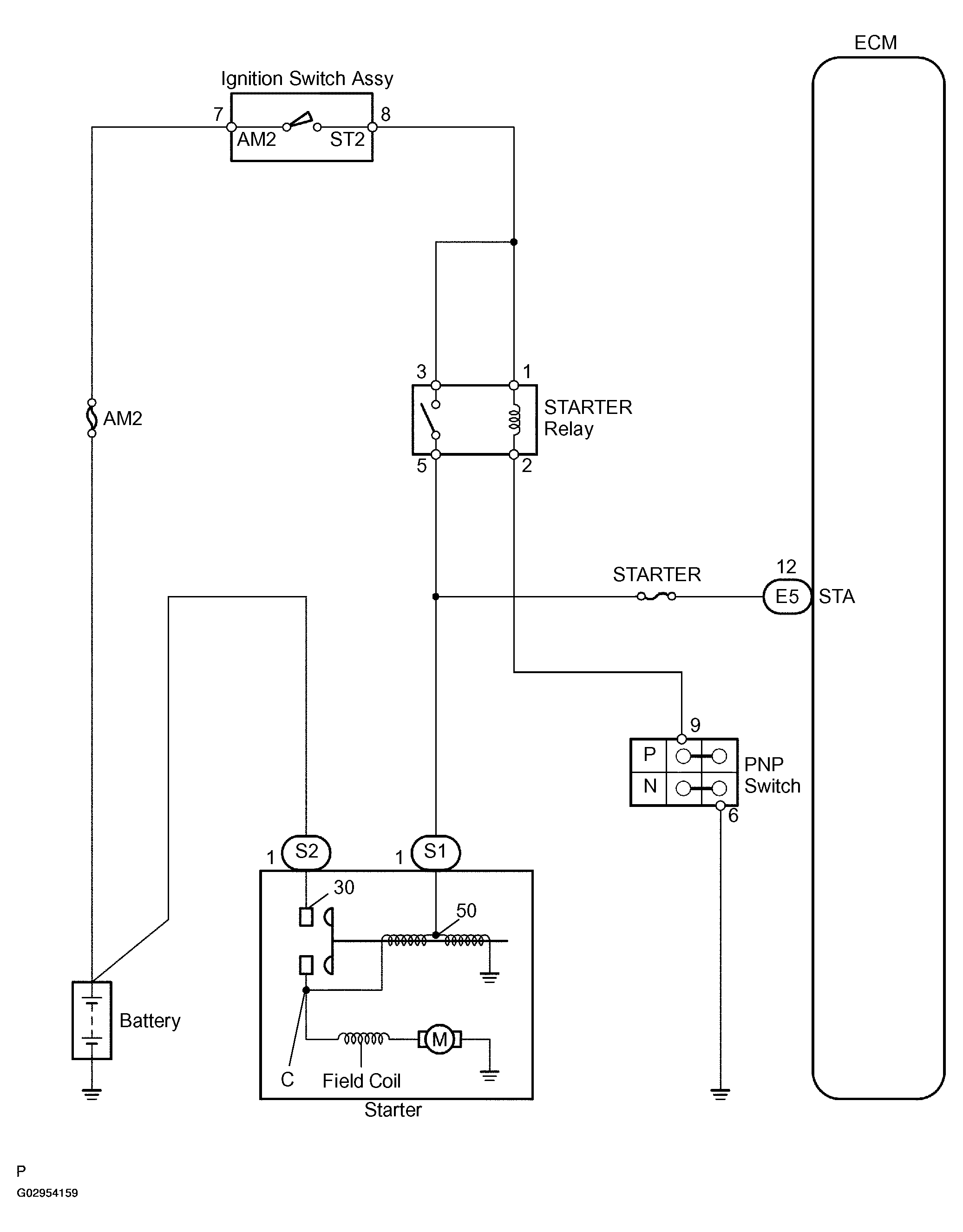

Fig 1: Starting System Diagram
G02954159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
