Combination Meter - Diagnostics
>>
Compass Does Not Function
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Compass Does Not Function: Wiring Diagram

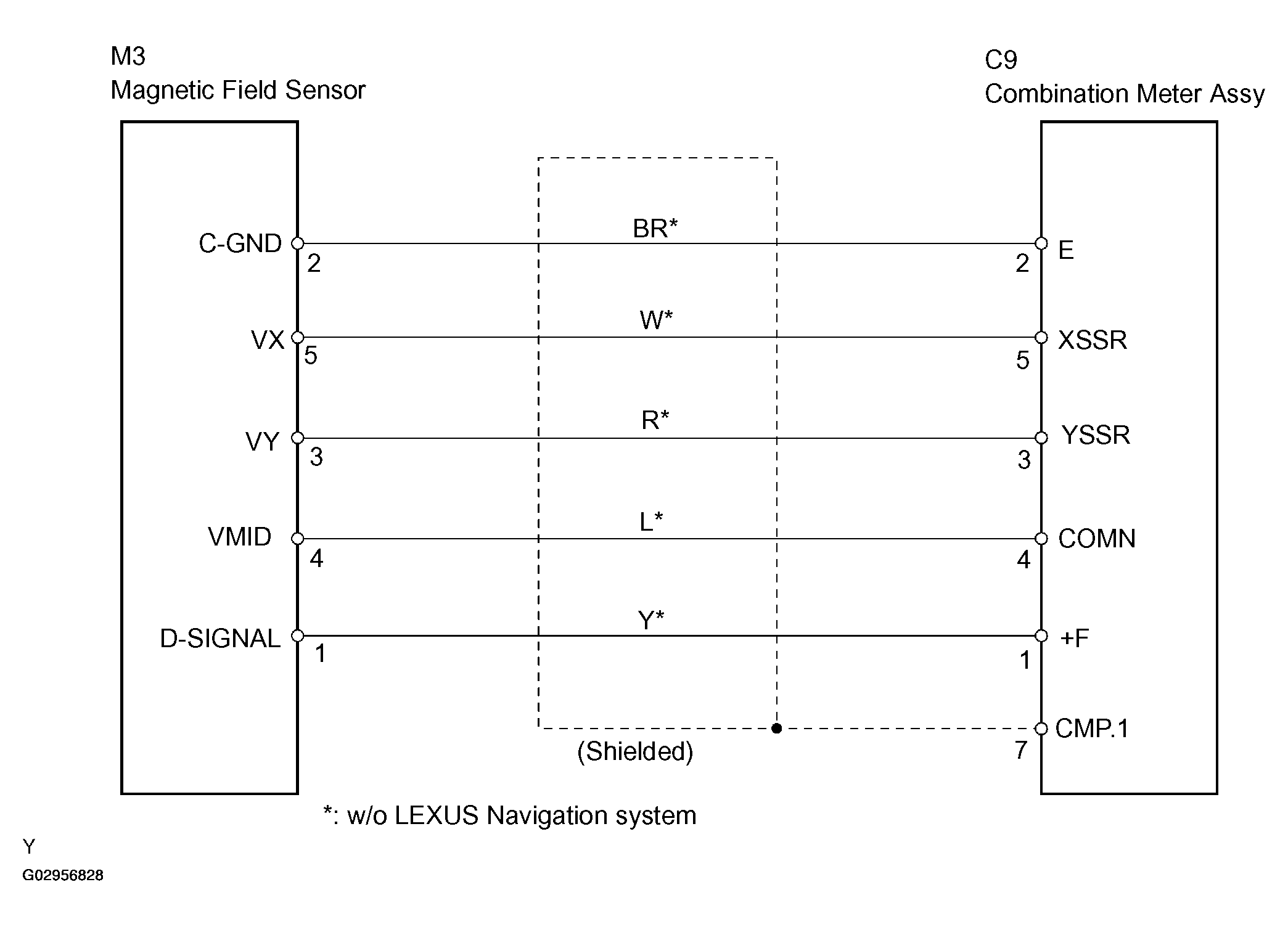

Fig 1: Compass - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
