RX 330

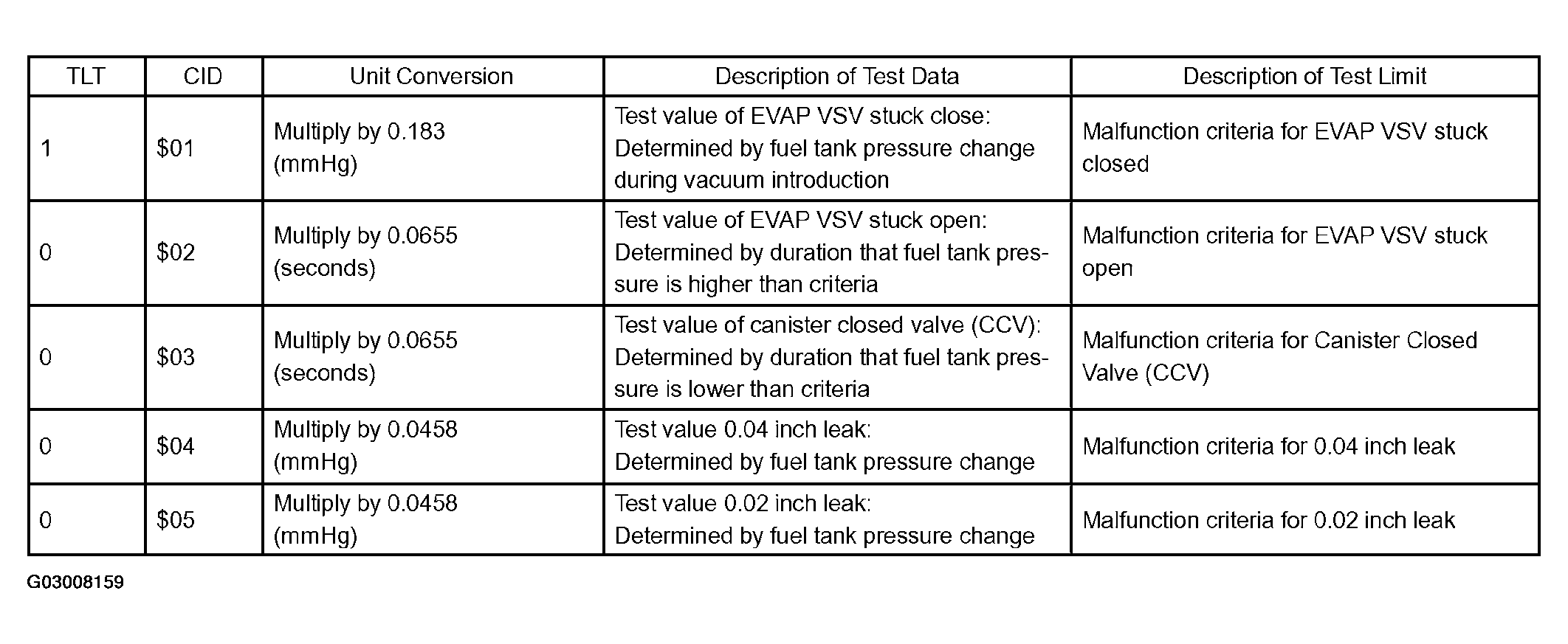

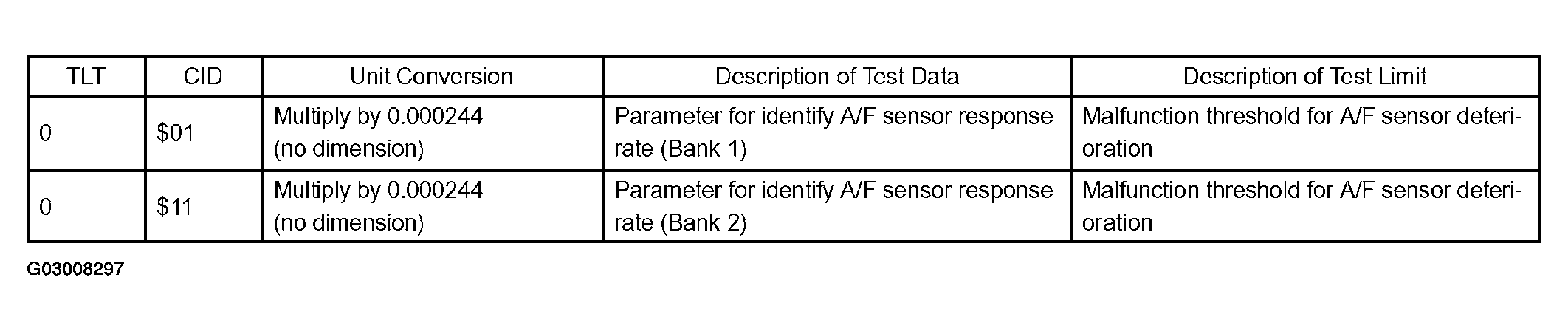

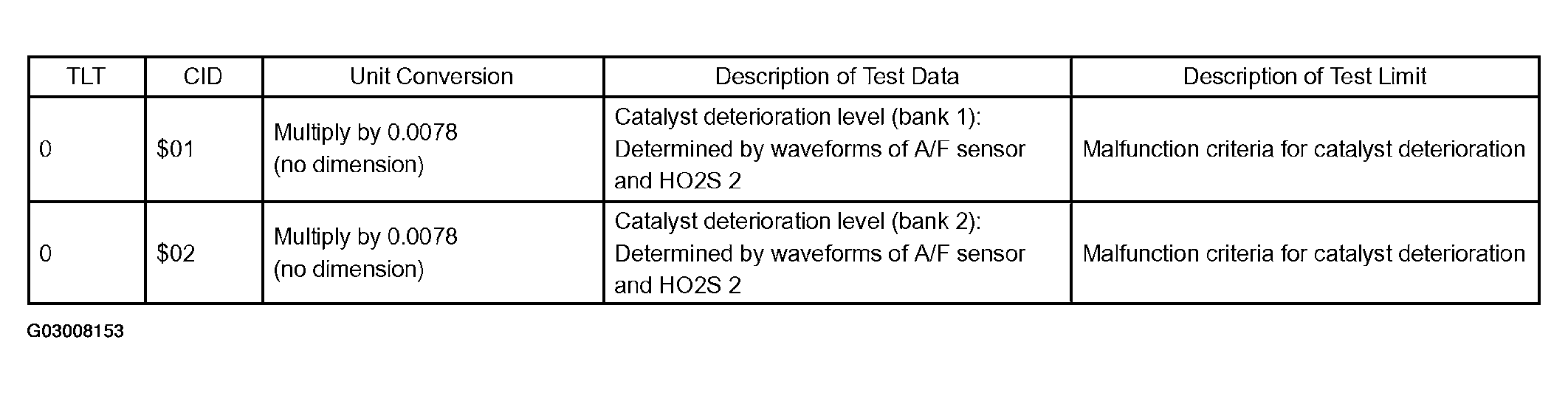

TID $07 A/F SENSOR HEATER DESCRIPTION
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.00017 (A) | Maximum heater current (Bank 1) | Malfunction criterion for A/F sensor heater |
| 1 | $10 | Multiply by 0.00017 (A) | Maximum heater current (Bank 2) | Malfunction criterion for A/F sensor heater |
TID $04 HO2S HEATER
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $02 | Multiply by 0.000076 (A) | Maximum HO2S heater current (Bank 1 Sensor 2) | Malfunction threshold for HO2S heater |
| 1 | $20 | Multiply by 0.000076 (A) | Maximum HO2S heater current (Bank 2 Sensor 2) | Malfunction threshold for HO2S heater |
TID $08: THERMOSTAT
| TLT | CID | Unit Conversion | Description of Test Data | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.625 and subtract 40 (°C) | ECT sensor output when estimated ECT has reached to malfunction criterion | Malfunction criteria for thermostat |
O2S TEST RESULT (MODE 05)
| TEST ID/COMP ID | Description of TEST VALUE | Conversion Factor | Unit | Standard Value |
|---|---|---|---|---|
| $07 | Minimum HO2S voltage | N/A | V | Less than TEST LIMIT |
| $08 | Maximum HO2S voltage | N/A | V | More than TEST LIMIT |
| $31 | Average time per one-cycle of HO2S frequency that HO2S switches Rich to Lean | N/A | Second | Less than TEST LIMIT |
| $32 | Average time per one-cycle of HO2S frequency that HO2S switches Lean to Rich | N/A | Second | Less than TEST LIMIT |
| $37 | Time until HO2S voltage drops to 0.2 V during fuel-cut | N/A | Second | Less than TEST LIMIT |
| $81 | Percentage in monitoring time while HO2S voltage is lower than 0.05V | Multiply by 0.39 | % | Less than TEST LIMIT |
| $84 | Percentage in monitoring time while HO2S voltage is higher than 0.7V | Multiply by 0.39 | % | Less than TEST LIMIT |
| $85 | Continuous time while HO2S voltage is higher than 0.45V | Multiply by 0.262 | Second | Less than TEST LIMIT |
| $87 | Percentage in monitoring time while HO2S voltage is higher than 0.45V | Multiply by 0.39 | % | More than TEST LIMIT |
