DTC P0116: Engine Coolant Temp. Circuit Range/Performance Problem: Wiring Diagram

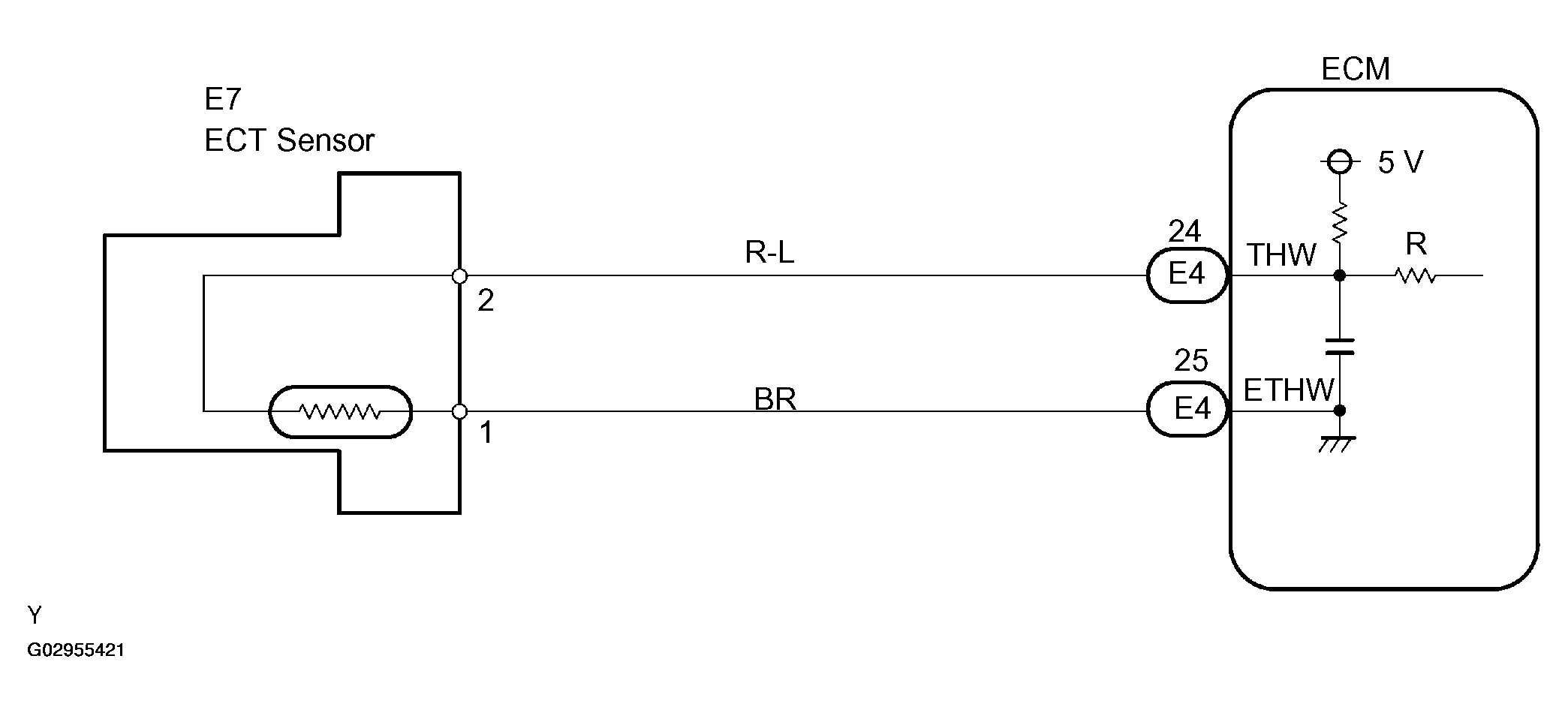

Fig 1: Engine Coolant Temperature Wiring Diagram
G02955421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
