Engine Mechanical: Preparation: SST

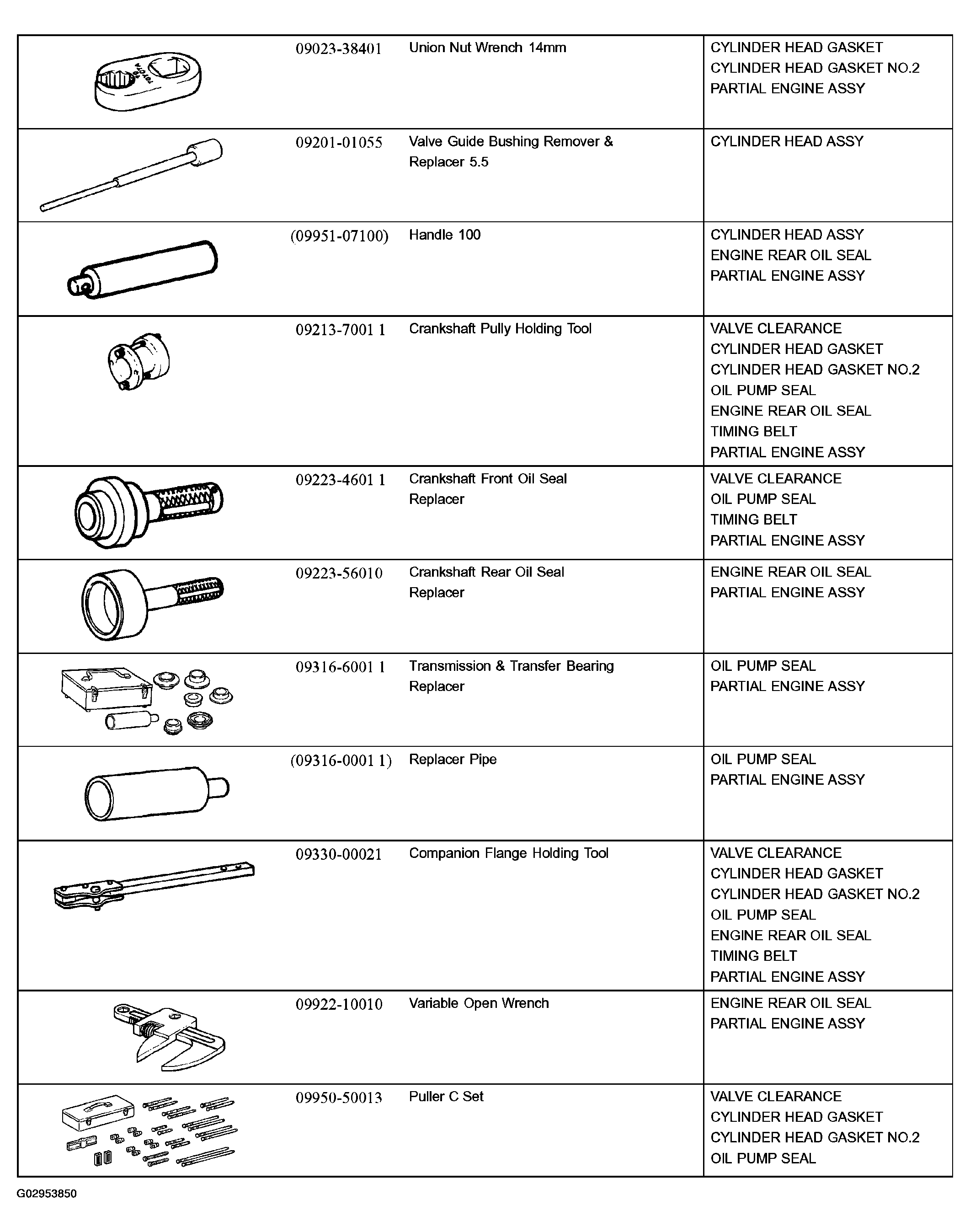

Fig 1: Engine Mechanical - Preparation Special Tools Specifications Table (1 Of 3)
G02953850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

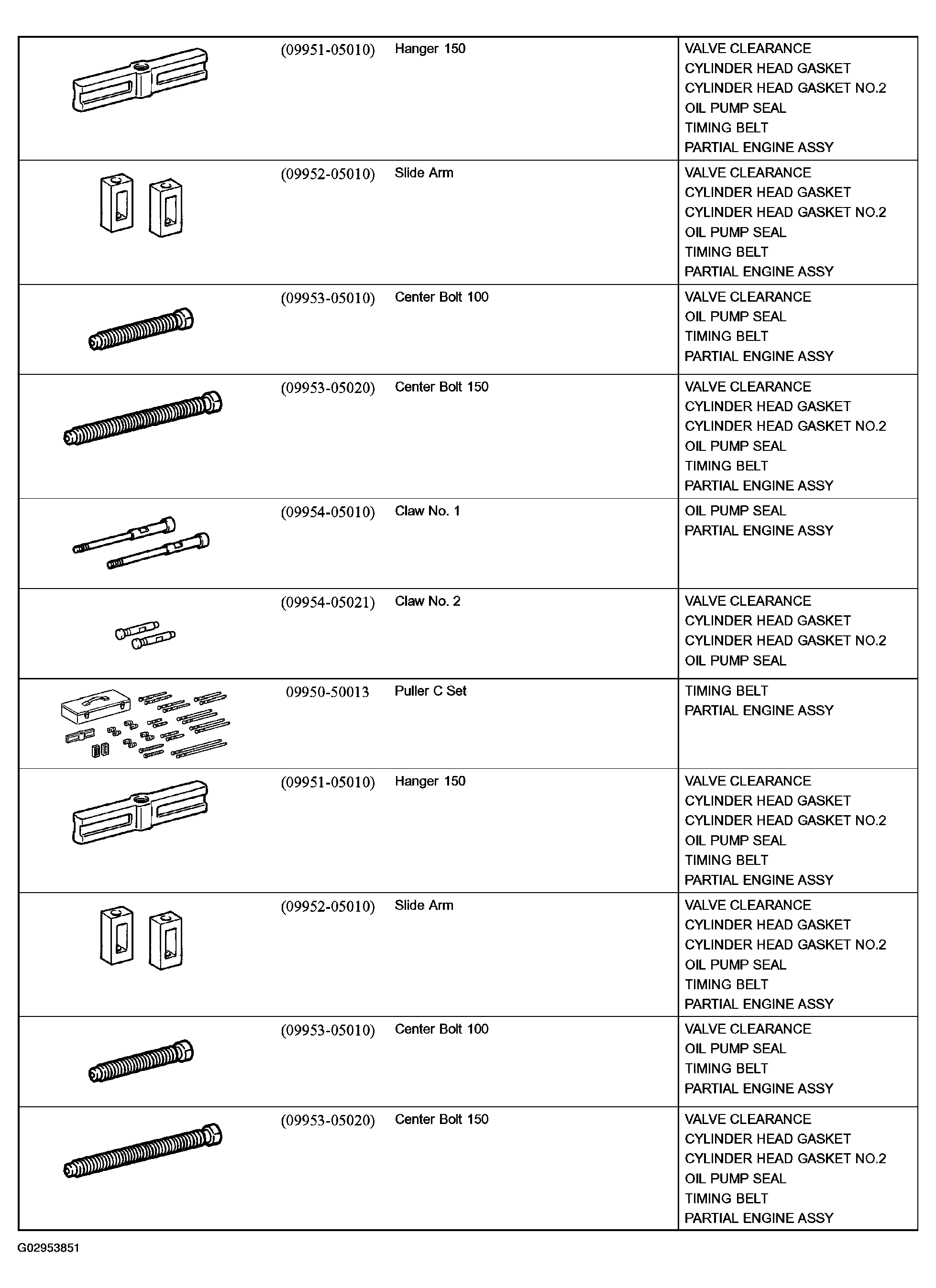

Fig 2: Engine Mechanical - Preparation Special Tools Specifications Table (2 Of 3)
G02953851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

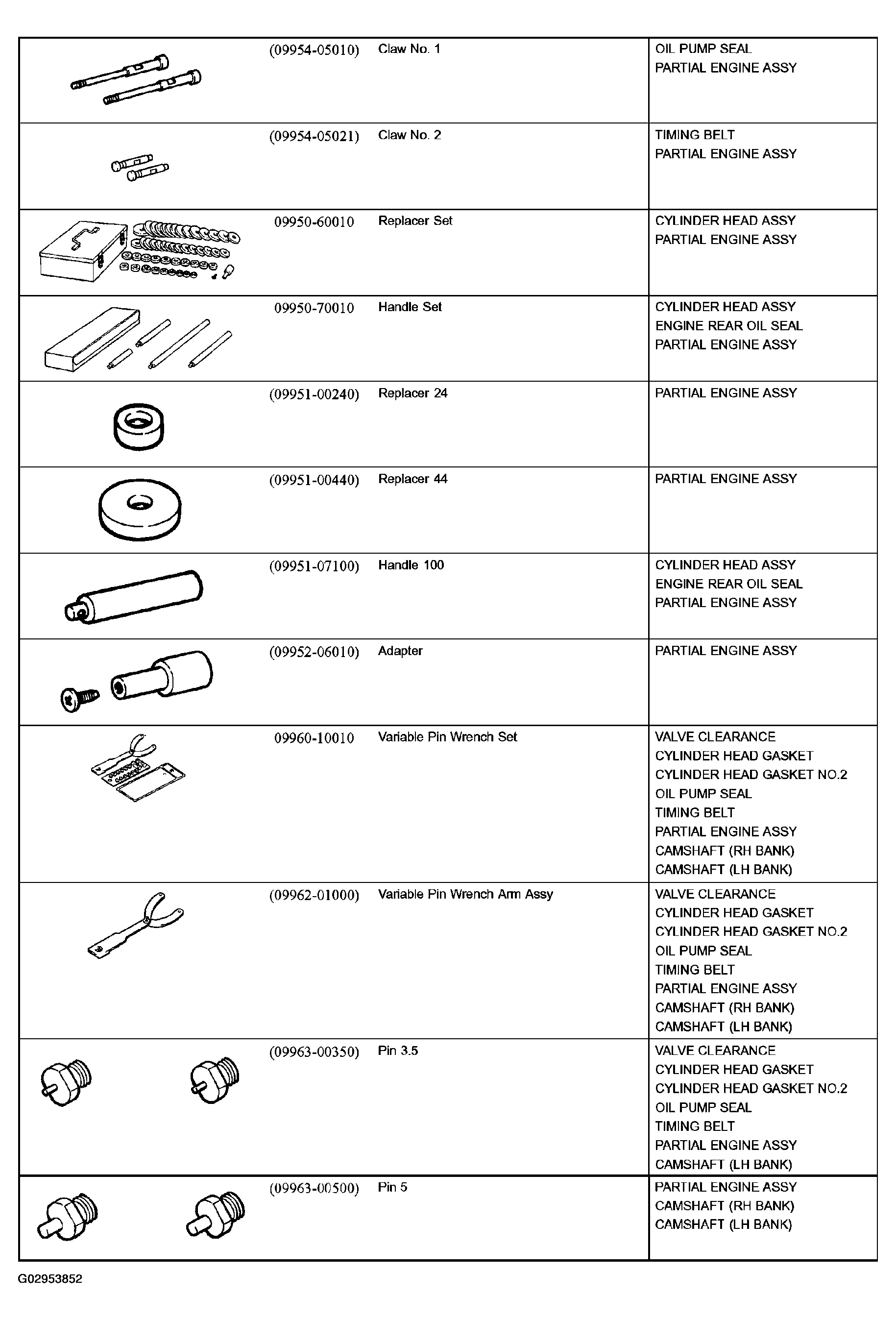

Fig 3: Engine Mechanical - Preparation Special Tools Specifications Table (3 Of 3)
G02953852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
