Diagnosis System
- DESCRIPTION
- Progressive power steering system data and the Diagnostic Trouble Codes (DTCs) can be read in the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the hand-held tester to check for malfunctions and perform repairs.
- CHECK DLC3
HINT:

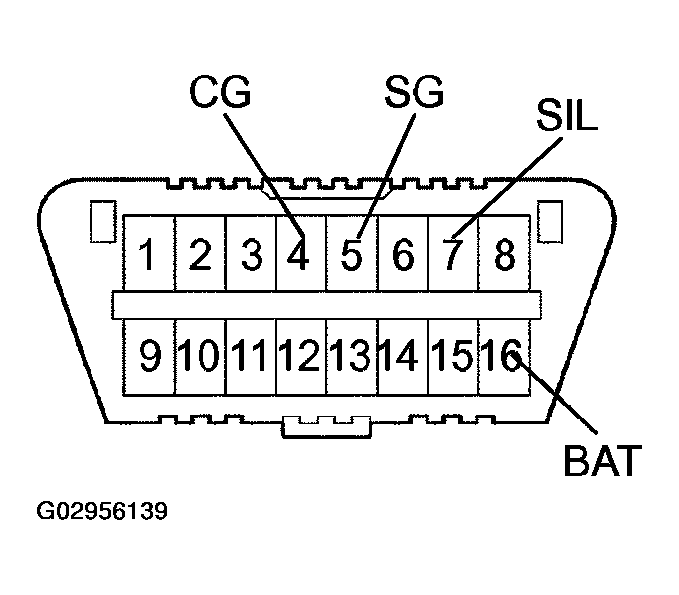

The vehicle uses ISO 9141-2 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.
DLC3Symbols (Terminal No.) Terminal Description Condition Specified Condition SIL (7) - SG (5) Bus "+" line During transmission Pulse generation CG (4) - Body ground Chassis ground Always Below 1 ohms SG (5) - Body ground Signal ground Always Below 1 ohms BAT (16) - Body ground Battery positive Always 11 to 14 V If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
HINT:

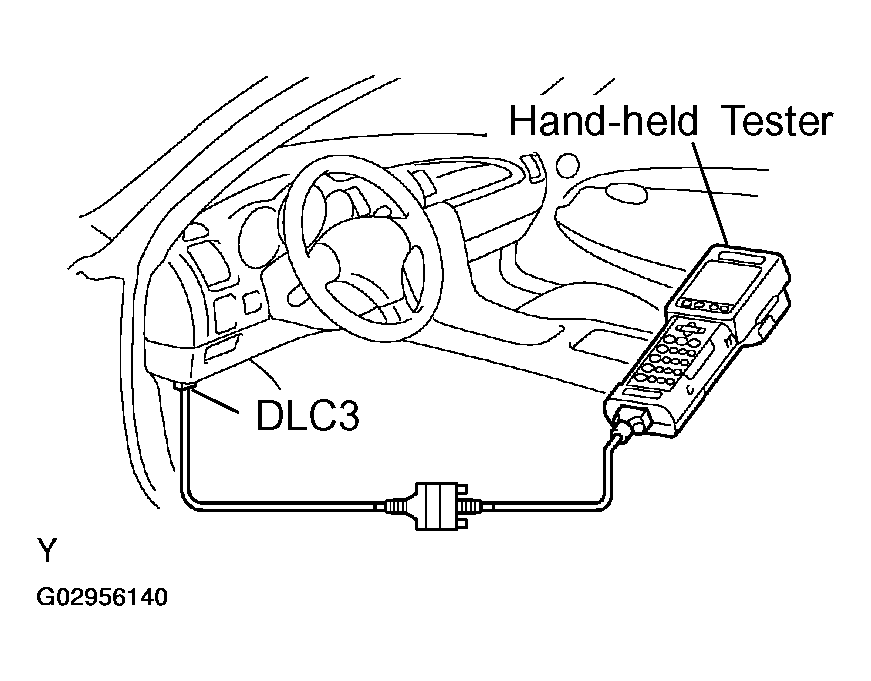

Connect the cable of the hand-held tester to the DLC3, turn the ignition switch ON and attempt to use tester. If the screen displays the message UNABLE TO CONNECT TO VEHICLE, there is a problem either with the vehicle or with the tester.
- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.
- INSPECT BATTERY VOLTAGE
- Inspect the battery positive voltage.
Standard: 11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
- Inspect the battery positive voltage.
