Relay Box

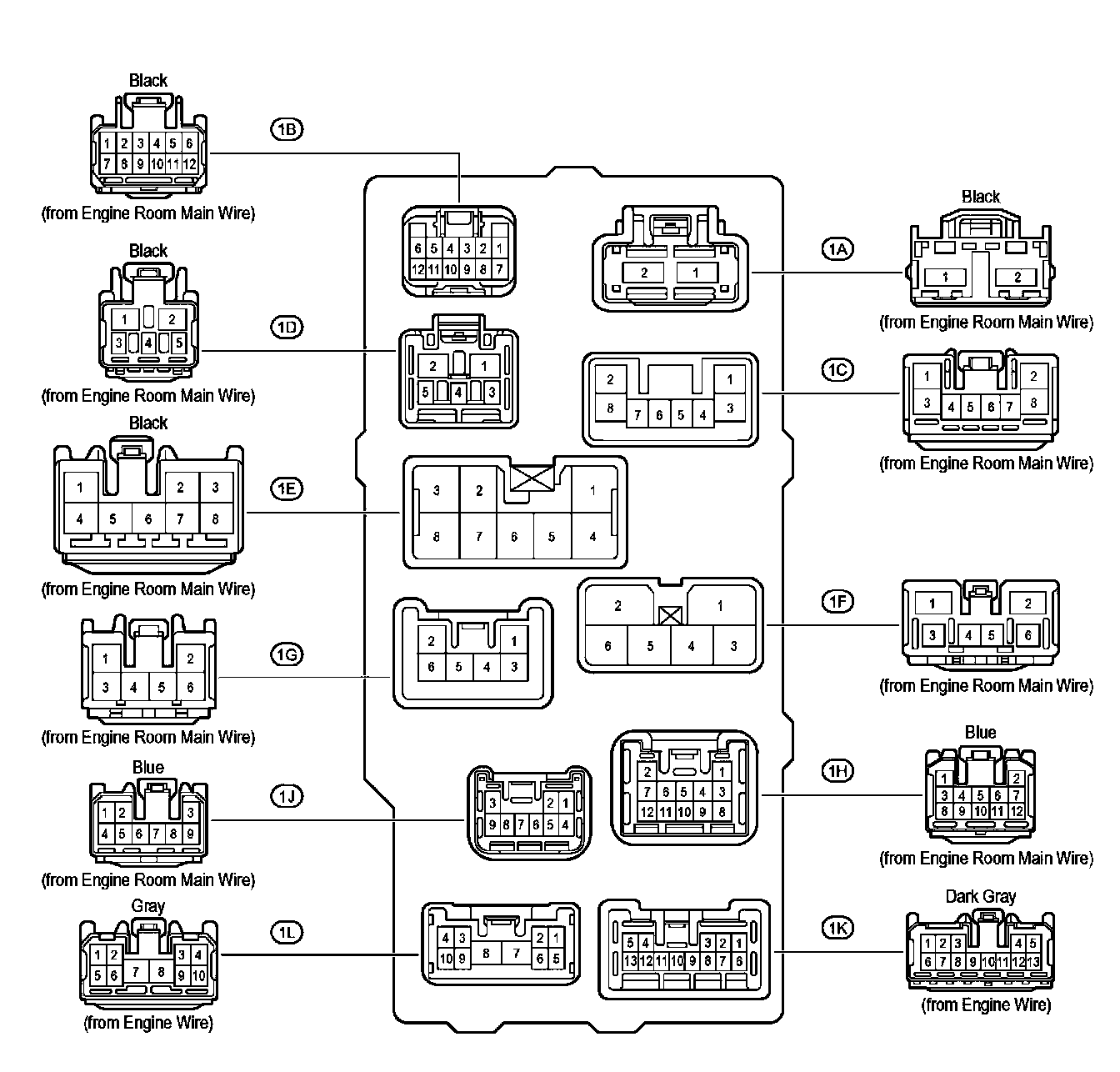

Engine Room J/B - Engine Compartment Left:

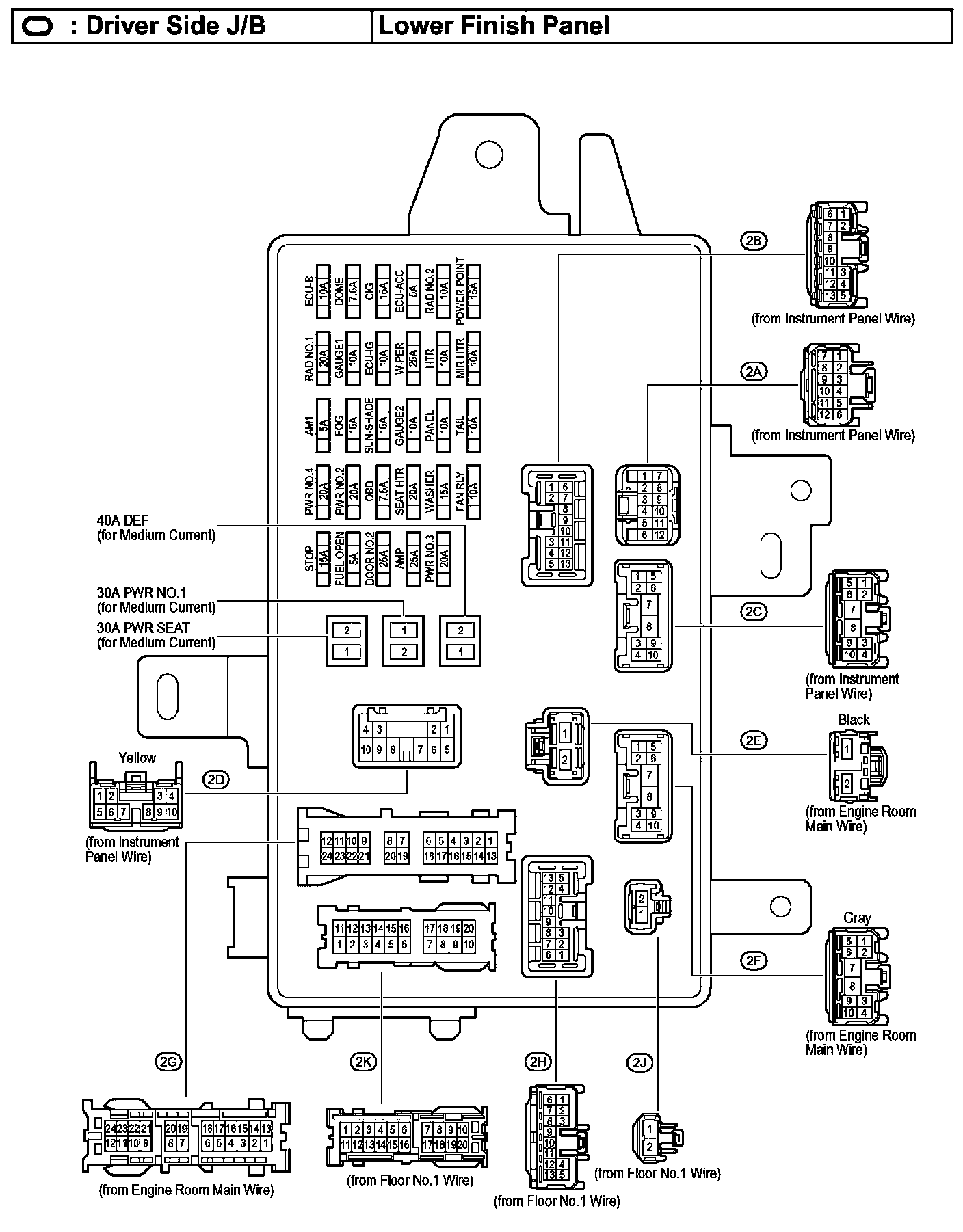

Driver Side J/B - Lower Finish Panel:

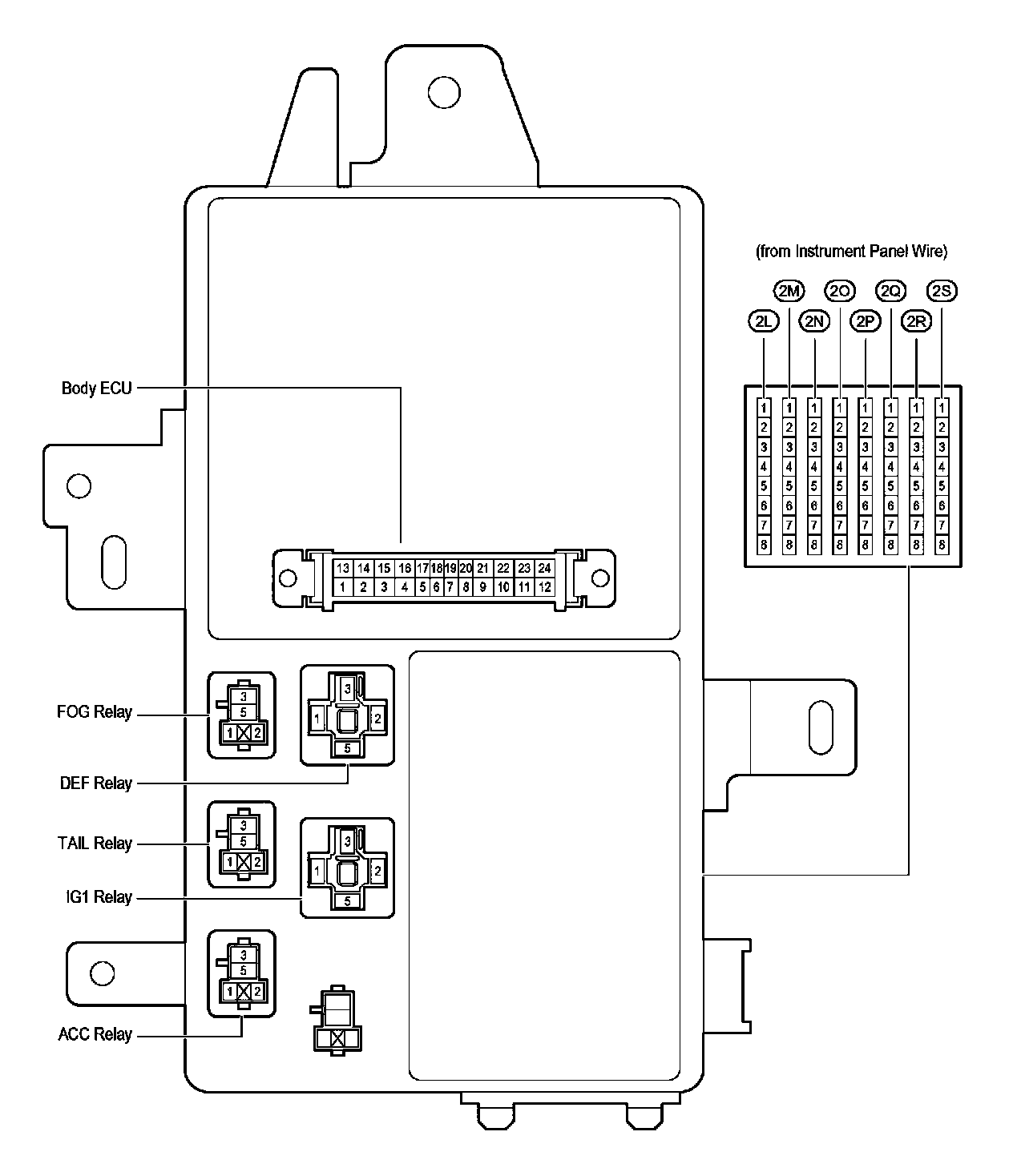

Driver Side J/B - Lower Finish Panel:

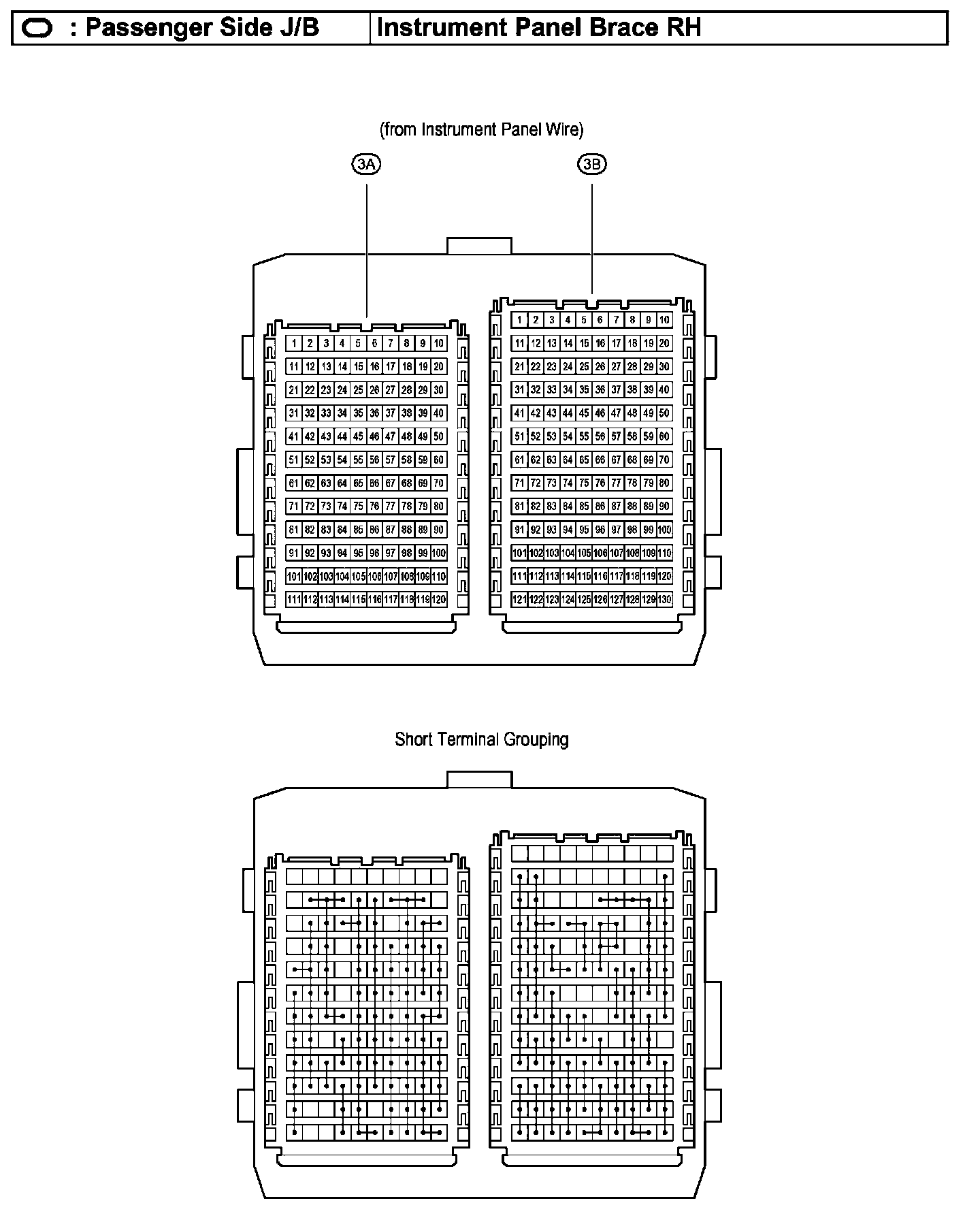

Passenger Side J/B - Instrument Panel Brace RH:
