Control Module HVAC: Testing and Inspection

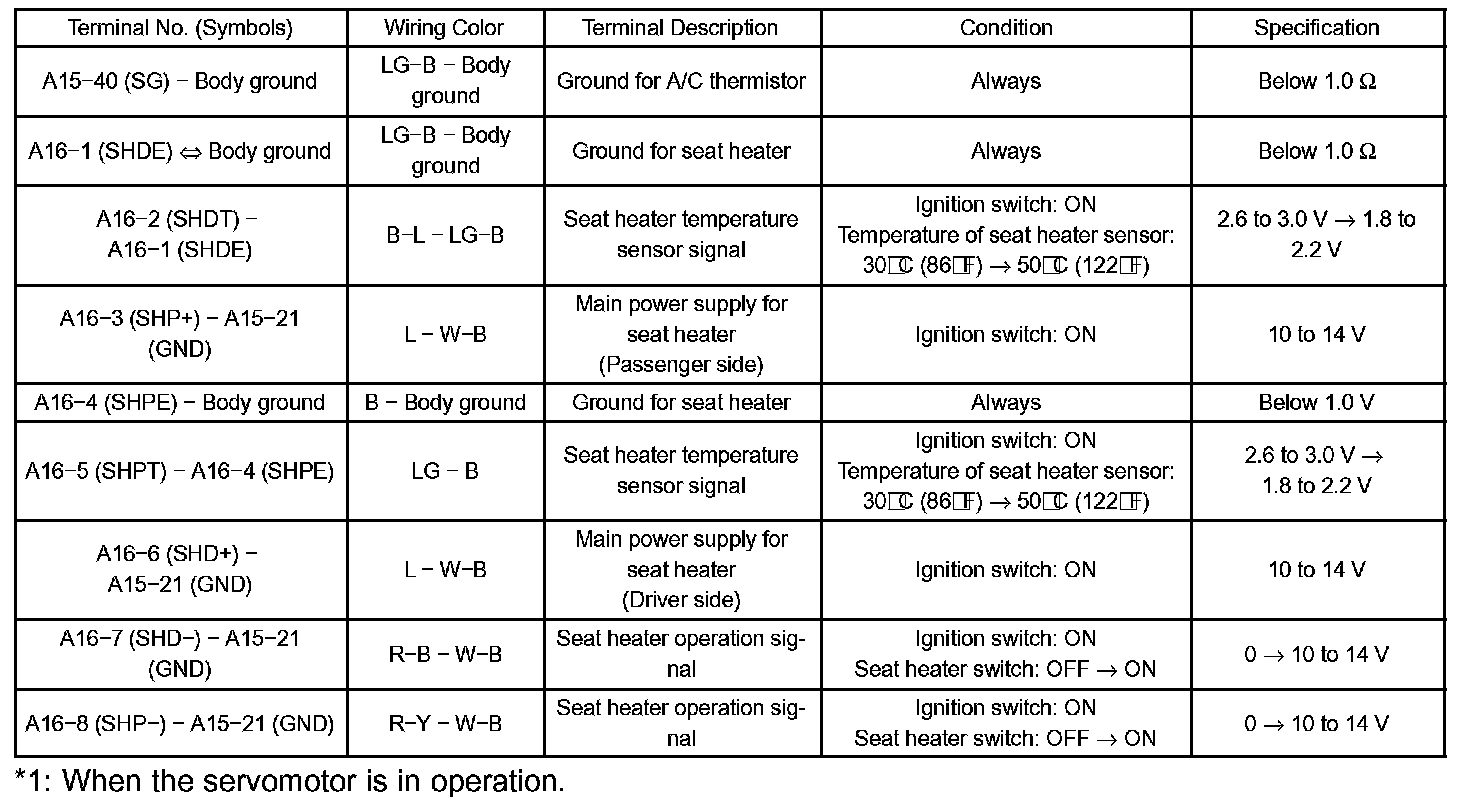

Terminals Of Control Module/Pinouts-Heater Control Housing Sub-Assy (A/C Amplifier) (Part 1):



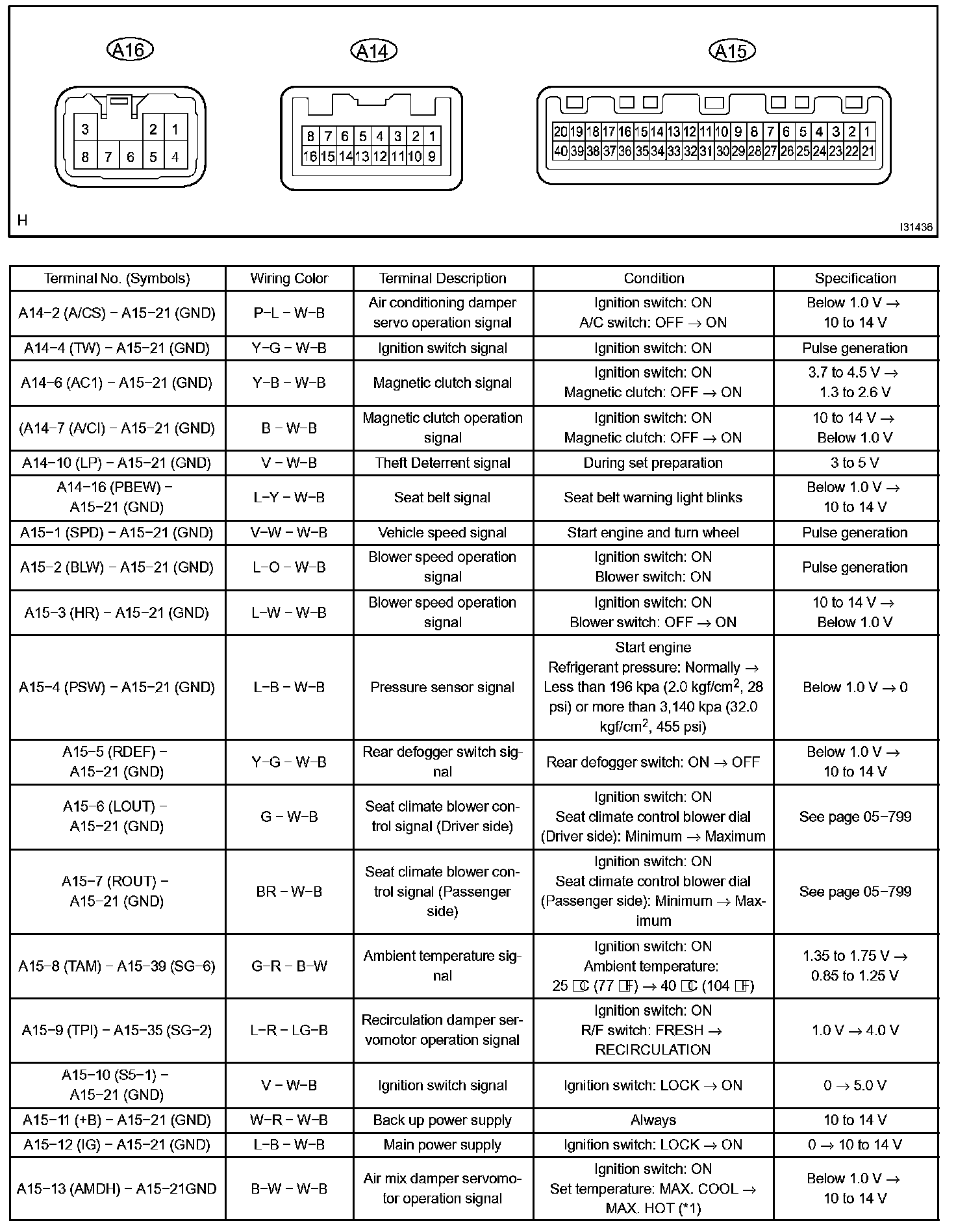

Terminals Of Control Module/Pinouts-Heater Control Housing Sub-Assy (A/C Amplifier) (Part 2):

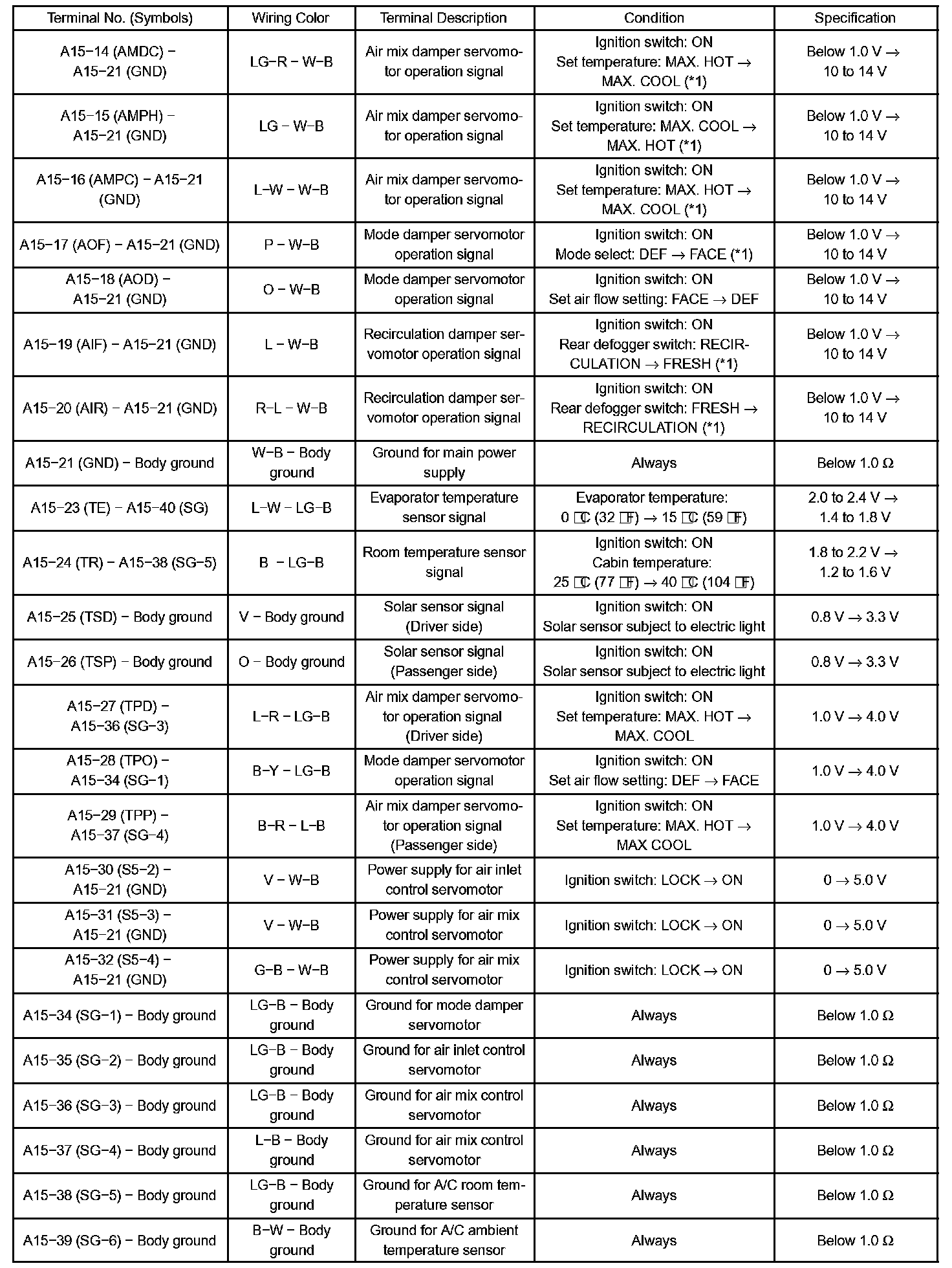

Terminals Of Control Module/Pinouts-Heater Control Housing Sub-Assy (A/C Amplifier) (Part 3):

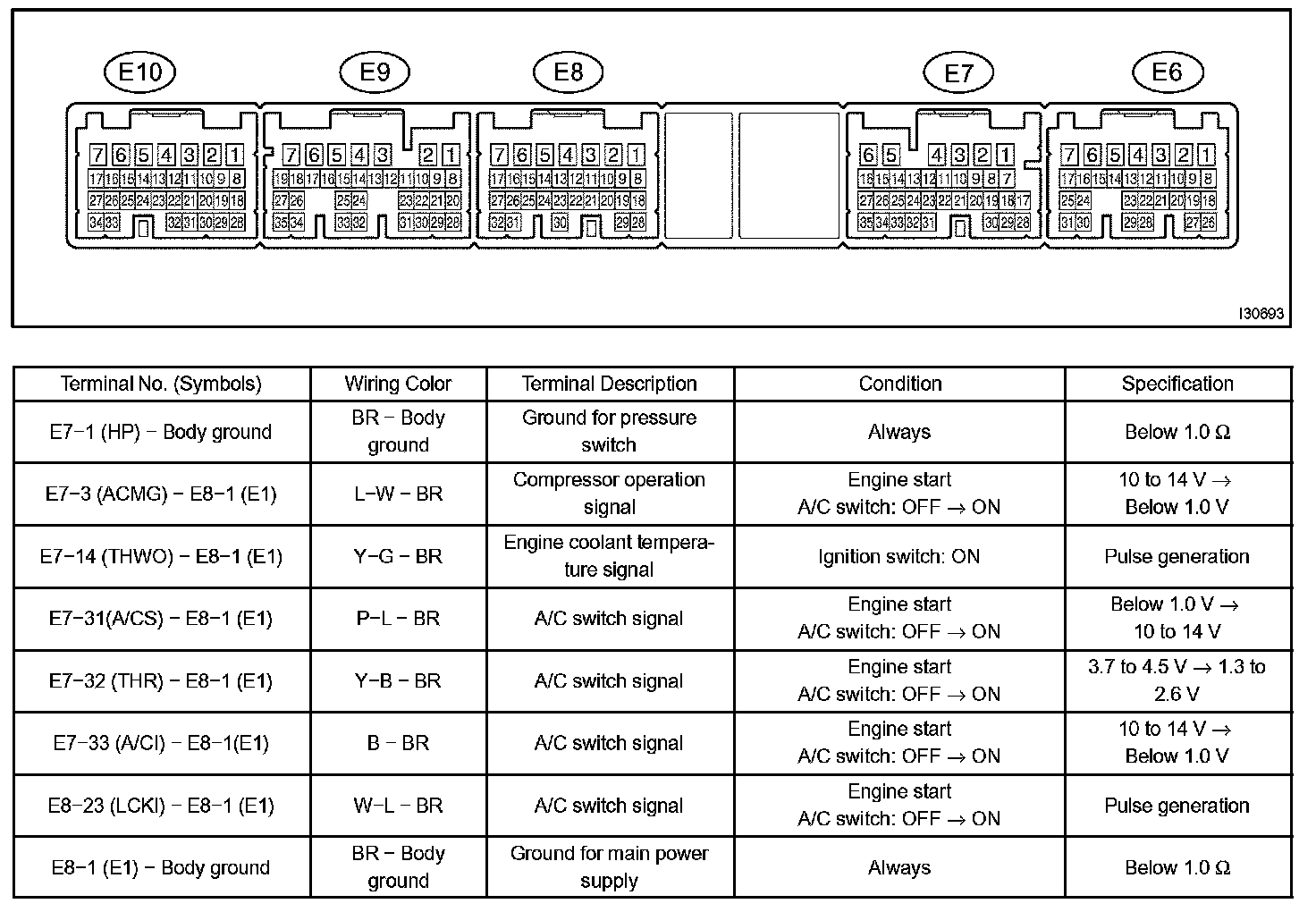

Terminals Of Control Module/Pinouts-ECM:
