Air Flow Meter/Sensor: Service and Repair

REPLACEMENT

1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

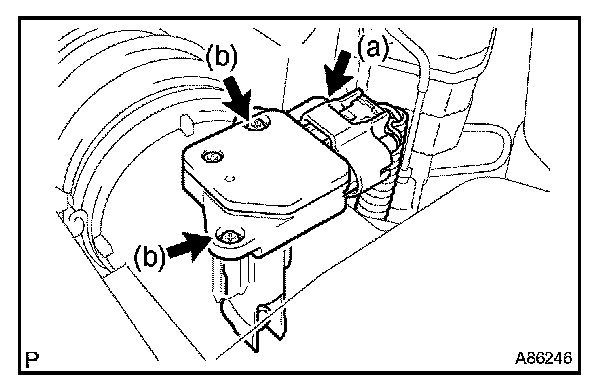

2. REMOVE MASS AIR FLOW METER
a. Disconnect the mass air flow meter connector.
b. Remove the 2 screws, then remove the mass air flow meter.

3. INSTALL MASS AIR FLOW METER
4. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

5. SYSTEM INITIALIZATION
