Coolant Temperature Sensor/Switch (For Computer): Service and Repair
REPLACEMENT1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
2. REMOVE RADIATOR LOWER AIR DEFLECTOR
3. DRAIN ENGINE COOLANT

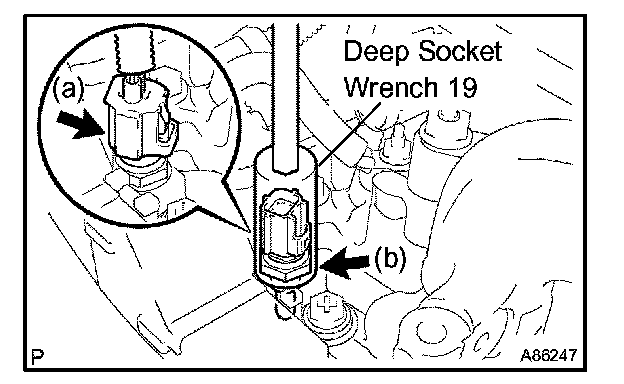

4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
a. Disconnect the engine coolant temperature sensor connector.
b. Using a deep socket wrench 19, remove the engine coolant temperature sensor and gasket.
5. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
a. Using a deep socket wrench 19, install a new gasket and the engine coolant temperature sensor.
Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
b. Connect the engine coolant temperature sensor connector.
6. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
7. ADD ENGINE COOLANT
8. CHECK FOR ENGINE COOLANT LEAKS
9. INSTALL RADIATOR LOWER AIR DEFLECTOR
10. SYSTEM INITIALIZATION
